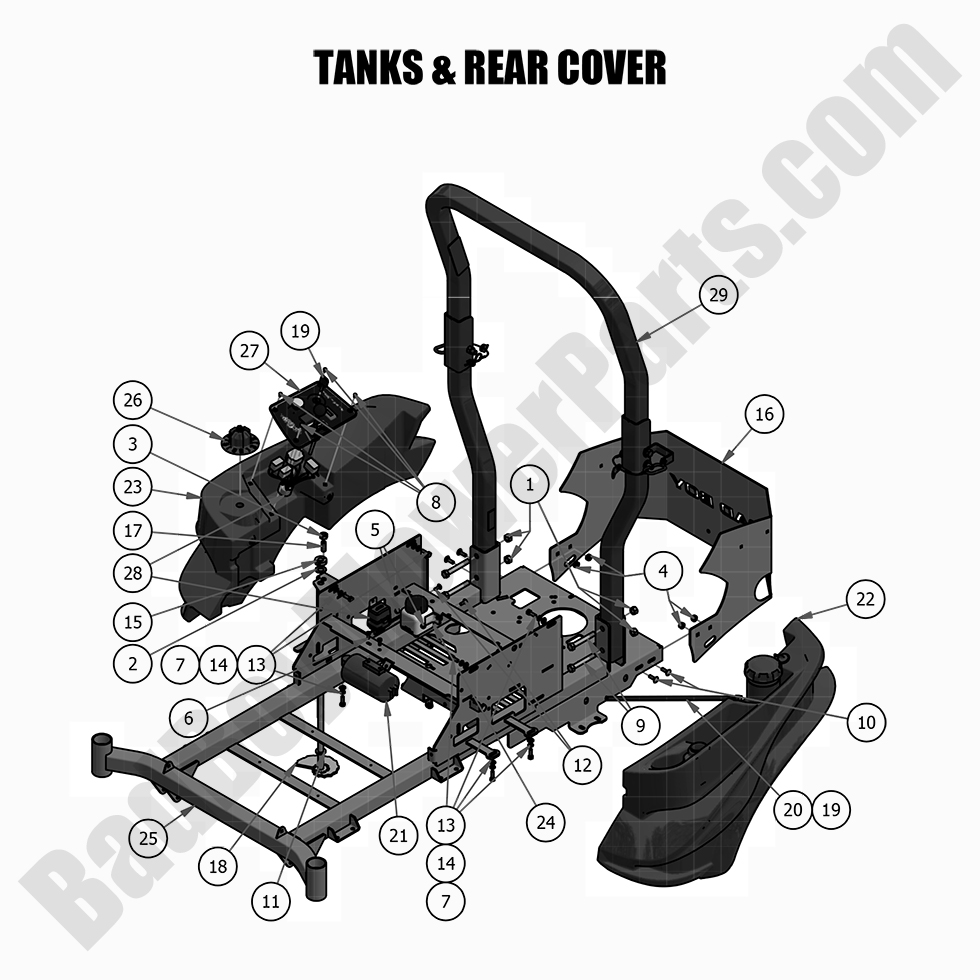

2021 Compact Outlaw - Tanks & Rear Cover

2021 Compact Outlaw - Tanks & Rear Cover

The 2021 Compact Outlaw Tanks & Rear Cover are essential components that help protect your mower’s internal systems while providing storage for fuel and other essential fluids. If you're in need of replacement parts for your tanks or rear cover, BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts designed to fit your 2021 Compact Outlaw. Our Bad Boy Mower Part diagrams provide detailed visuals to help you find the exact part you need, whether it's the fuel tank, rear cover, or another related component. With Bad Boy Lawn Mower Parts, you can ensure your mower continues to perform at its best. Shopping for Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, your parts will be shipped directly to your home, with no additional shipping fees.

Bad Boy Mower Parts Lookup

2021 Compact Outlaw - Tanks & Rear Cover
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
2 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
6 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
9 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
13 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
16 026-0090-00 026-0090-00 -Rear Plate (See Models Used On For Details)
$219.99
17 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
18 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
19 042-9000-00 042-9000-00 - Ignition Key
$4.06
19 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
20 051-2015-00 051-2015-00 - Fuel Line Assy. 22"
$30.55
21 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
22 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
23 067-2070-50 067-2070-50 - Right Side Console
$228.99
24 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
25 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99
26 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
27 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
28 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
29 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
