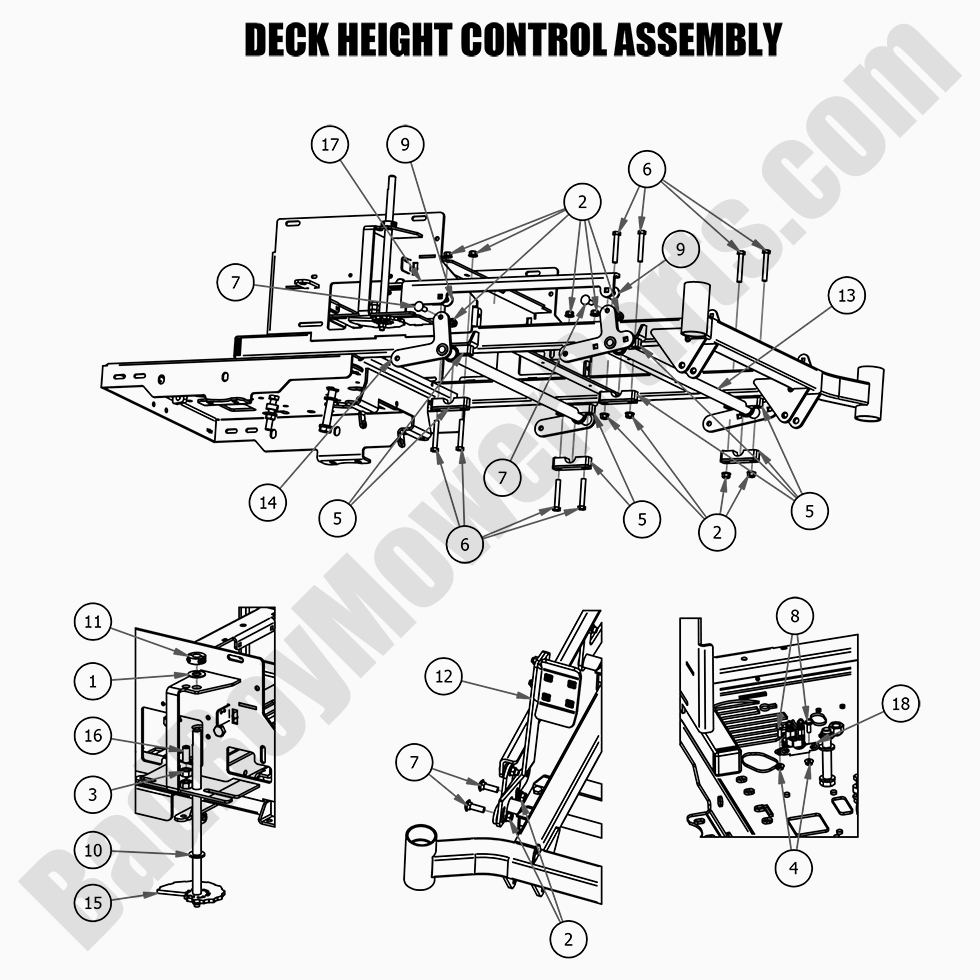

2021 MZ & MZ Magnum - Deck Height Control

2021 MZ & MZ Magnum - Deck Height Control

The 2021 MZ & MZ Magnum Deck Height Control allows for easy and precise adjustments to the cutting height of your mower, ensuring a consistent and even cut. If you need to replace or repair this essential component, BadBoyMowerParts.com has a wide selection of Bad Boy Mower Parts for the 2021 MZ & MZ Magnum. Our Bad Boy Mower Part diagrams provide a clear overview of the deck height control system, making it easy to find the exact parts needed. We only offer Bad Boy Lawn Mower Parts that meet high-quality standards to ensure durability and performance. Shopping for Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, your parts will be delivered without any additional shipping charges.

Bad Boy Mower Parts Lookup

2021 MZ & MZ Magnum - Deck Height Control
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
5 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
6 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
12 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
13 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
14 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
15 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
16 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
17 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
18 108-0001-00 108-0001-00 - Solenoid
$29.41
