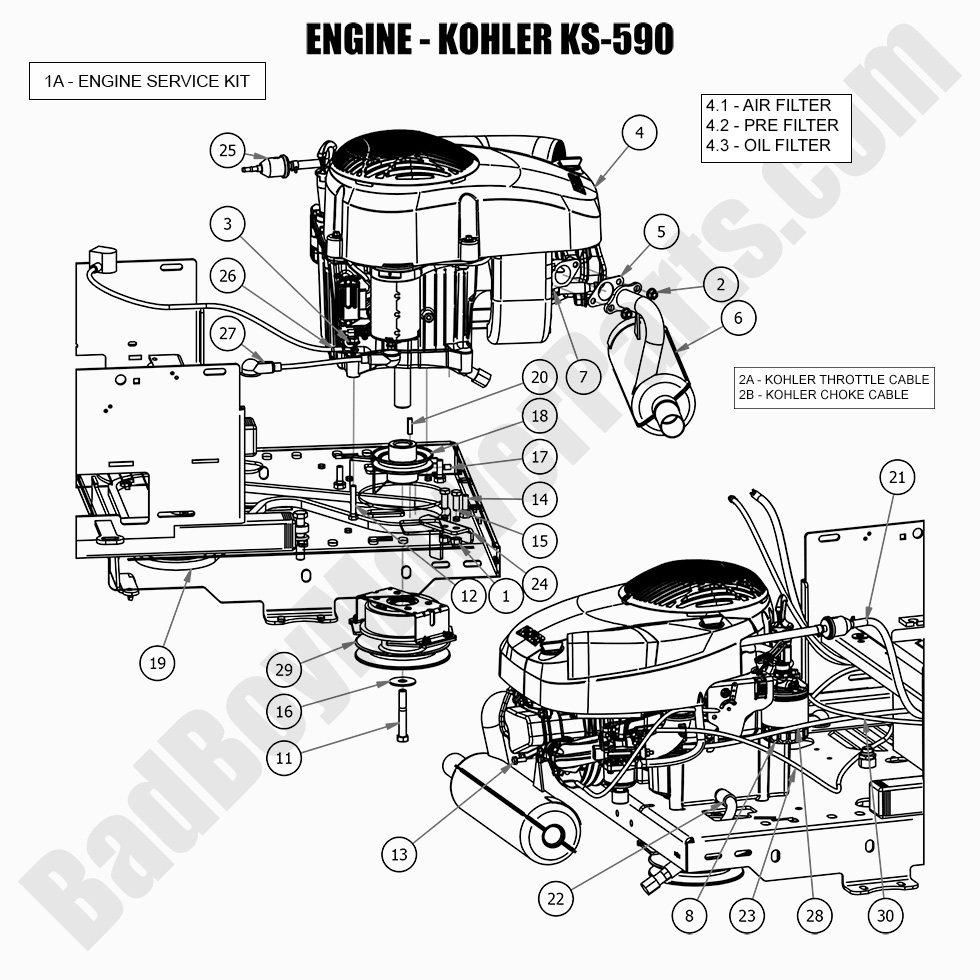

2021 MZ & MZ Magnum - Engine - Kohler KS590

2021 MZ & MZ Magnum - Engine - Kohler KS590

The 2021 MZ & MZ Magnum Engine - Kohler KS590 is a high-performance engine designed to handle tough lawn care tasks. If you need engine parts for this specific model, BadBoyMowerParts.com offers a wide variety of Bad Boy Mower Parts compatible with the Kohler KS590 engine. From replacement filters to fuel lines, our selection ensures that you’ll find the right parts to maintain or repair your engine. Our Bad Boy Mower Part diagrams help you identify the specific parts needed for easy installation. With Bad Boy Lawn Mower Parts, you can trust that you’re getting the highest quality components. Shopping for Bad Boy Parts Online is simple and convenient, and with Free Shipping On Orders Over $100, you’ll receive your parts fast without the added shipping costs.

Bad Boy Mower Parts Lookup

2021 MZ & MZ Magnum - Engine - Kohler KS590
  Position Number SKU Product Title Price
1A 063-2000-13 063-2000-13 - Engine Service Kit for Kohler 5400 Series (KS590)
$98.09
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
3 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
4.1 015-0077-06 015-0077-06 - Air Filter for 015-0077-00 fits KS590 Engines
$32.78
4.2 015-0077-05 015-0077-05 - Air Pre-Cleaner for 015-0077-00 fits KS590 Engines
$10.91
4.3 015-0077-04 015-0077-04 - Oil Filter (See Models Used On For Details)
$24.12
4 015-0077-00 015-0077-00 - 2018 - 2022 541cc Kohler 5400 Series Engine 19h
$1592.29
5 015-0077-01 015-0077-01 - Exhaust Gasket (See Models Used On for Details)
$7.28
6 015-0077-02 015-0077-02 - Exhaust for 2018-2022 Kohler 5400 Series
$175.14
7 015-0077-03 015-0077-03 - Spark Plug for Kohler KS590
$9.89
11 018-0007-00 018-0007-00 - 7/16-20 x 3 Hex C/S GR 8
$2.99
12 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
13 018-0101-00 018-0101-00 - M6-1.0 X 16MM Bolt
$3.29
14 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
15 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
16 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
17 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
18 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
19 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
20 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
21 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
22 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
24 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
25 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
26 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
27 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
28 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
29 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
30 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
