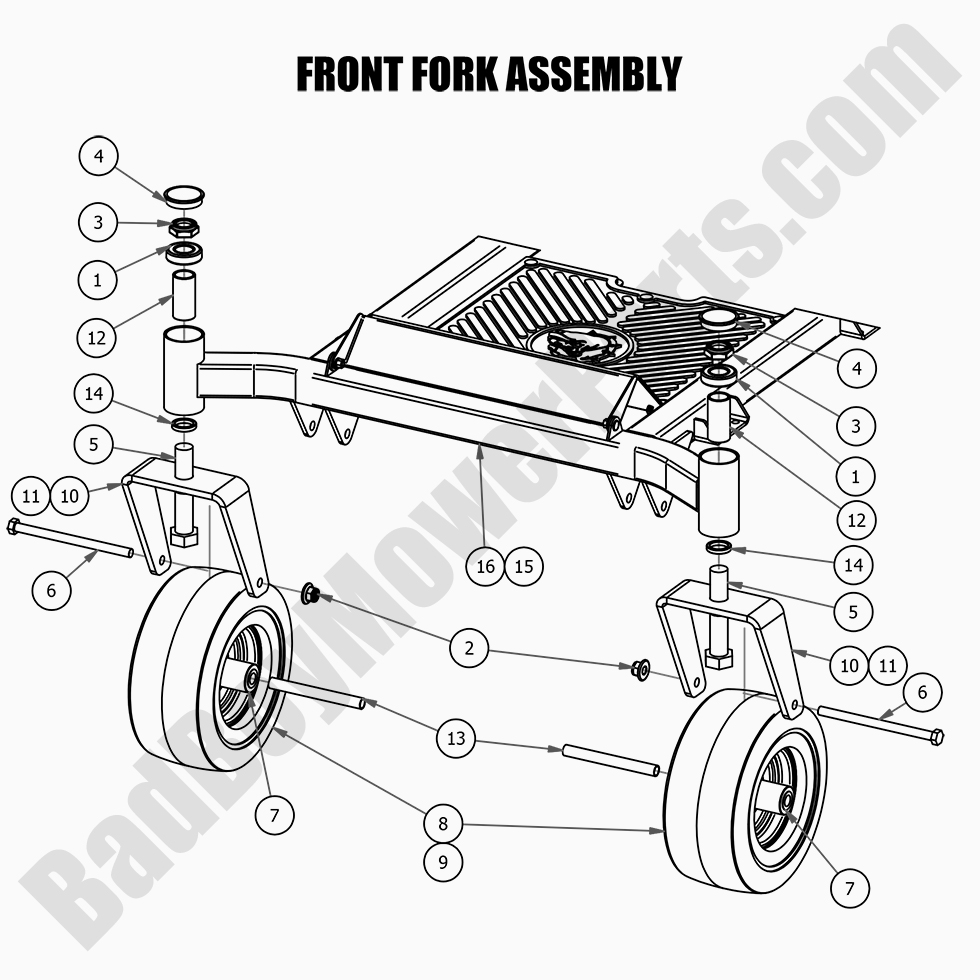

2021 MZ & MZ Magnum - Front Fork Assembly

2021 MZ & MZ Magnum - Front Fork Assembly

The 2021 MZ & MZ Magnum Front Fork Assembly plays a crucial role in providing stability and control to your mower. If you need replacement or repair parts for your front fork assembly, BadBoyMowerParts.com carries a complete range of Bad Boy Mower Parts designed for the 2021 MZ & MZ Magnum. Whether you need forks, bearings, or hardware, our selection has everything you need. Our Bad Boy Mower Part diagrams make it easy to identify the specific components needed for your mower’s front fork assembly. We offer only the best Bad Boy Lawn Mower Parts to ensure long-lasting durability and top performance. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can have your parts delivered quickly, with no added shipping fees.

Bad Boy Mower Parts Lookup

2021 MZ & MZ Magnum - Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
6 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt
$4.83
7 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
8 022-8049-00 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy)
$99.39
9 022-8051-00 022-8051-00 - 11 x 4.00 - 5 Front Tire and Wheel Assembly, 2010 MZ and 2019-2021 42" MZ
$76.60
10 023-0002-00 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork
$31.23
11 023-0005-00 023-0005-00 - MZ 8mm Front Fork 42" only
$42.58
12 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
13 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
14 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
15 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
16 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
