2021 MZ & MZ Magnum - Fuel Line & Control Panel

2021 MZ & MZ Magnum - Fuel Line & Control Panel

The 2021 MZ & MZ Magnum Fuel Line & Control Panel are essential components that ensure efficient fuel delivery and proper control of your mower's operations. If you’re in need of replacement parts, BadBoyMowerParts.com offers an extensive range of Bad Boy Mower Parts for the 2021 MZ & MZ Magnum. From fuel lines to control panels, we carry everything you need to maintain your mower’s fuel system. Our Bad Boy Mower Part diagrams provide detailed views of the system, helping you identify the specific parts required for repairs. We only offer high-quality Bad Boy Lawn Mower Parts designed for optimal performance and durability. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can get your parts delivered to your doorstep without the hassle of additional shipping charges.

Bad Boy Mower Parts Lookup

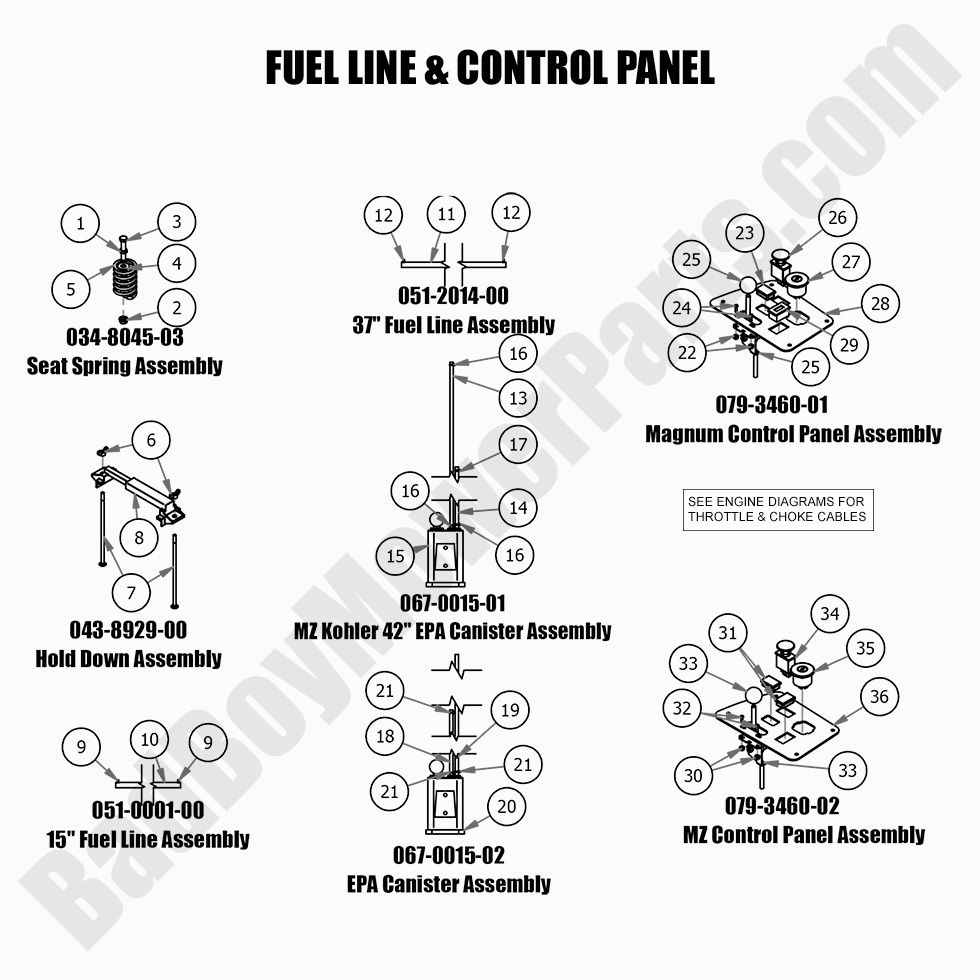

2021 MZ & MZ Magnum - Fuel Line & Control Panel
  Position Number SKU Product Title Price
1A 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1B 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
1C 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
1D 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
1E 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
1F 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
1G 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
1H 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
4 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
6 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
7 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
9 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
10 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
11 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
13 051-2023-01 051-2023-01 - 3/16 Vinyl 53" EPA Line
$9.67
14 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
15 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
16 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
17 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
18 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
19 051-2027-02 051-2027-02 - 52" x 3/16" clear hose
$7.25
22 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
23 018-1040-00 018-1040-00 - Light Plug
$2.99
24 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
26 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
27 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
28 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
29 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
