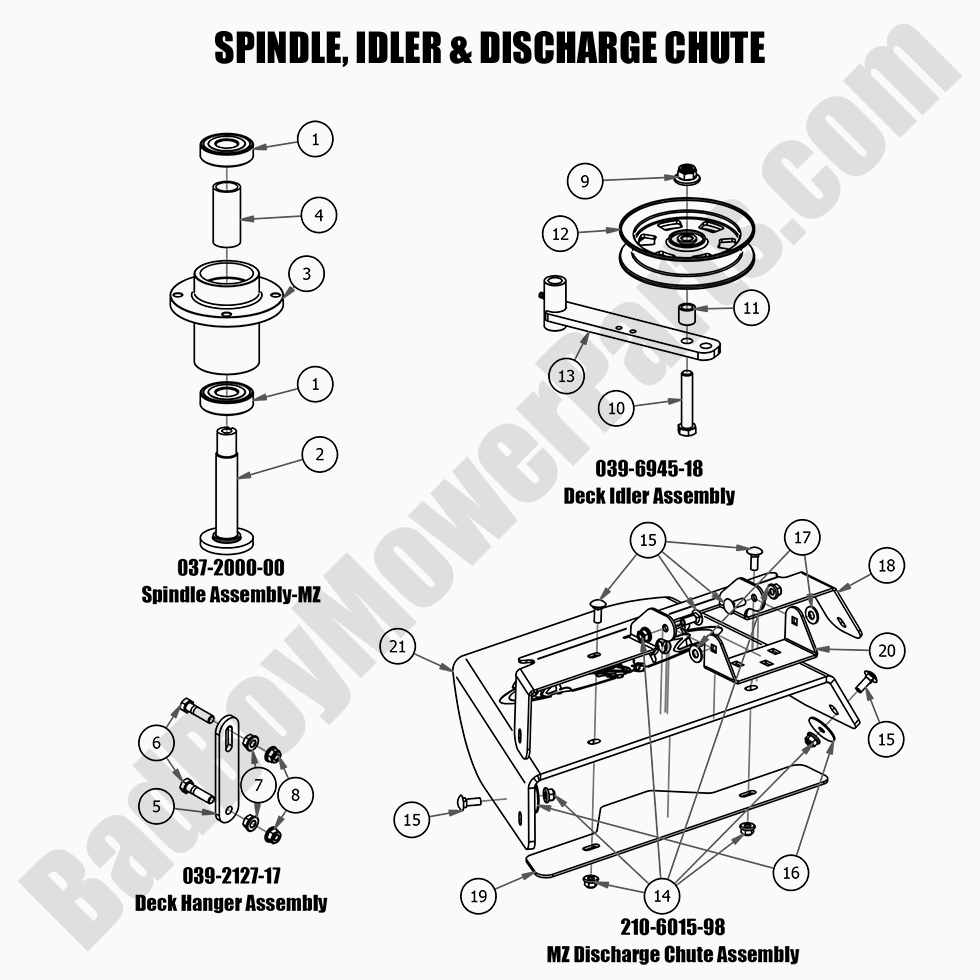

2021 MZ & MZ Magnum - Spindle, Idler & Discharge Chute

2021 MZ & MZ Magnum - Spindle, Idler & Discharge Chute

The 2021 MZ & MZ Magnum Spindle, Idler & Discharge Chute components play a critical role in ensuring your mower deck operates smoothly and efficiently. If any of these parts need replacing, BadBoyMowerParts.com has an extensive selection of Bad Boy Mower Parts that are designed specifically for the 2021 MZ & MZ Magnum. Whether you need a new spindle, idler pulley, or discharge chute, we offer high-quality Bad Boy Lawn Mower Parts to restore optimal performance. Our Bad Boy Mower Part diagrams will guide you in selecting the right components for your mower. Shopping for Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you can receive your parts fast without any extra shipping costs.

Bad Boy Mower Parts Lookup

2021 MZ & MZ Magnum - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1A 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
1B 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
1C 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
1D 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
2 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
5 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
6 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
12 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
13 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
16 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
17 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
18 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
19 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
20 206-6020-00 206-6020-00 - Chute Hanger
$28.39
21 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
