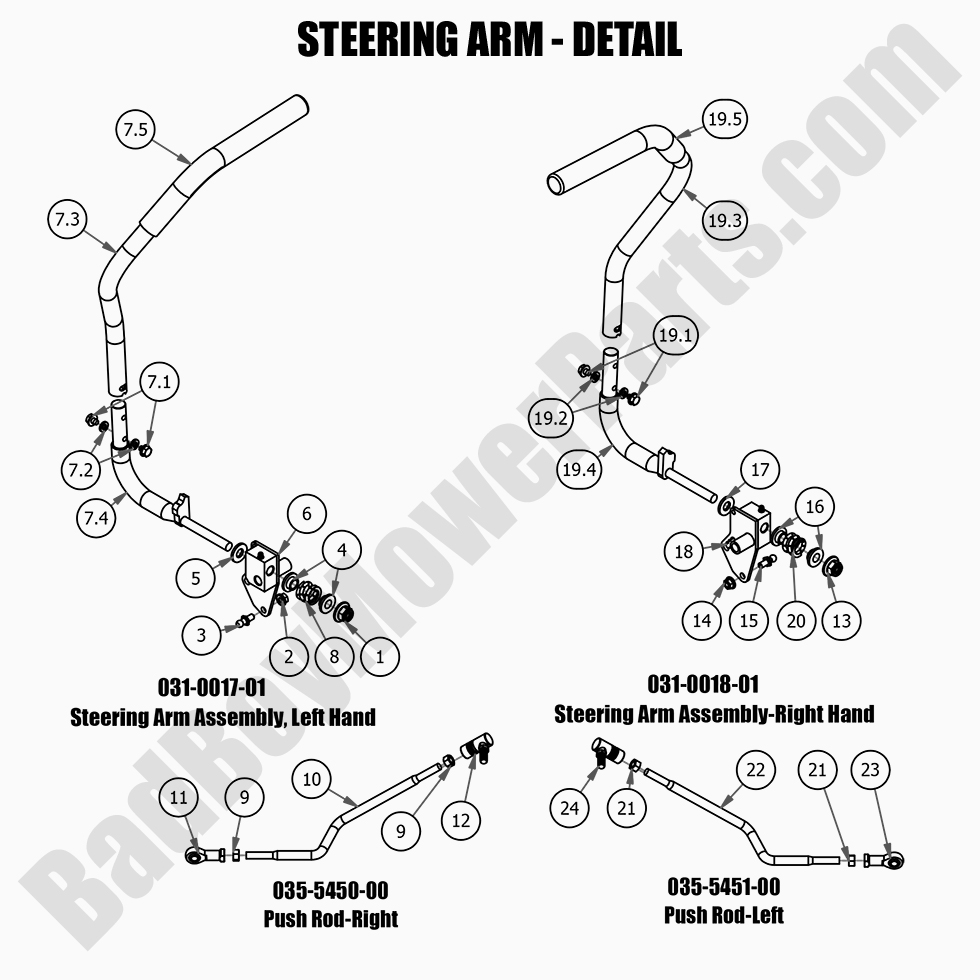

2021 MZ & MZ Magnum - Steering Arm - Detail

2021 MZ & MZ Magnum - Steering Arm - Detail

The 2021 MZ & MZ Magnum Steering Arm - Detail is an essential component for maintaining precise control of your mower. If you need replacement parts for the steering arm system, BadBoyMowerParts.com offers a comprehensive range of Bad Boy Mower Parts compatible with the 2021 MZ & MZ Magnum. Whether you’re replacing a worn steering arm or its components, our Bad Boy Mower Part diagrams will help you identify the correct parts needed for the job. We offer only top-quality Bad Boy Lawn Mower Parts designed to ensure smooth and reliable steering. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can have your parts shipped quickly to your doorstep with no extra charges.

Bad Boy Mower Parts Lookup

2021 MZ & MZ Magnum - Steering Arm - Detail
  Position Number SKU Product Title Price
1A 031-0017-01 031-0017-01 - Left Steering Arm Assembly (See Models Used On for Details)
$145.99
1B 031-0018-01 031-0018-01 - Right Steering Arm Assembly (See Models Used On for Details)
$145.99
1C 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
1D 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
3 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
4 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
6 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
7.1 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
7.2 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7.3 031-8850-02 031-8850-02 - Steering Arm Left - Tubing (See Models Used On For Details)
$85.12
7.4 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
7.5 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
7 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
8 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
9 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
11 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
12 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
18 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
19.3 031-8851-02 031-8851-02 - Steering Arm Right - 5" Tubing (See Models Used On For Details)
$85.12
19.4 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
19 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
