2021 MZ & MZ Magnum - Tanks & Electronics

2021 MZ & MZ Magnum - Tanks & Electronics

The 2021 MZ & MZ Magnum Tanks & Electronics are vital for ensuring proper fuel storage and electronic control on your mower. If you need replacement tanks, wiring, or related electronics, BadBoyMowerParts.com offers an extensive selection of Bad Boy Mower Parts for the 2021 MZ & MZ Magnum. Our inventory includes everything from fuel tanks to wiring harnesses and electronic components that are essential for mower operation. Using our Bad Boy Mower Part diagrams, you can easily identify and order the right parts to keep your mower running at its best. We carry only the highest quality Bad Boy Lawn Mower Parts to ensure long-lasting durability and performance. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can have your parts delivered quickly and without additional shipping costs.

Bad Boy Mower Parts Lookup

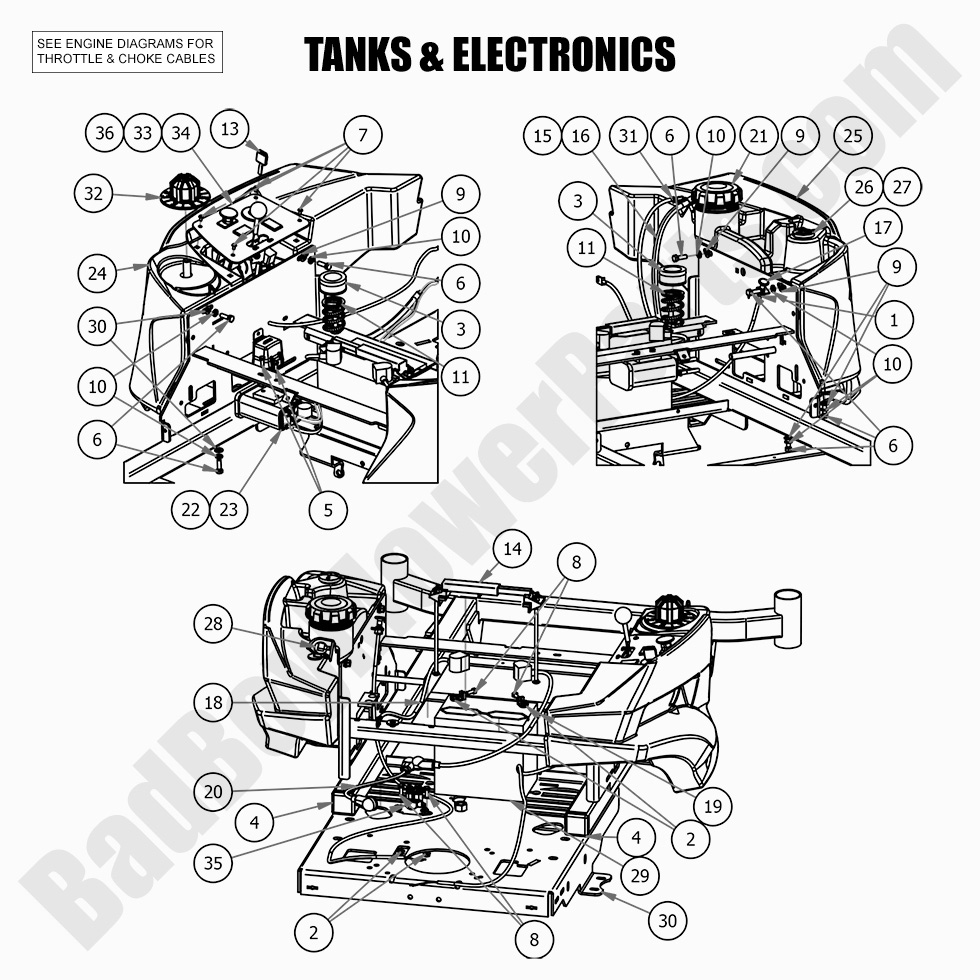

2021 MZ & MZ Magnum - Tanks & Electronics
  Position Number SKU Product Title Price
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
4 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
5 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
6 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
7 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
13 042-9000-00 042-9000-00 - Ignition Key
$4.06
14 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
15 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
16 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
18 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
19 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
20 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
21 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
22 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
23 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
24 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
25 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
26 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
27 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
28 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
30 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
31 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
32 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
33 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
34 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
35 108-0001-00 108-0001-00 - Solenoid
$29.41
36 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
