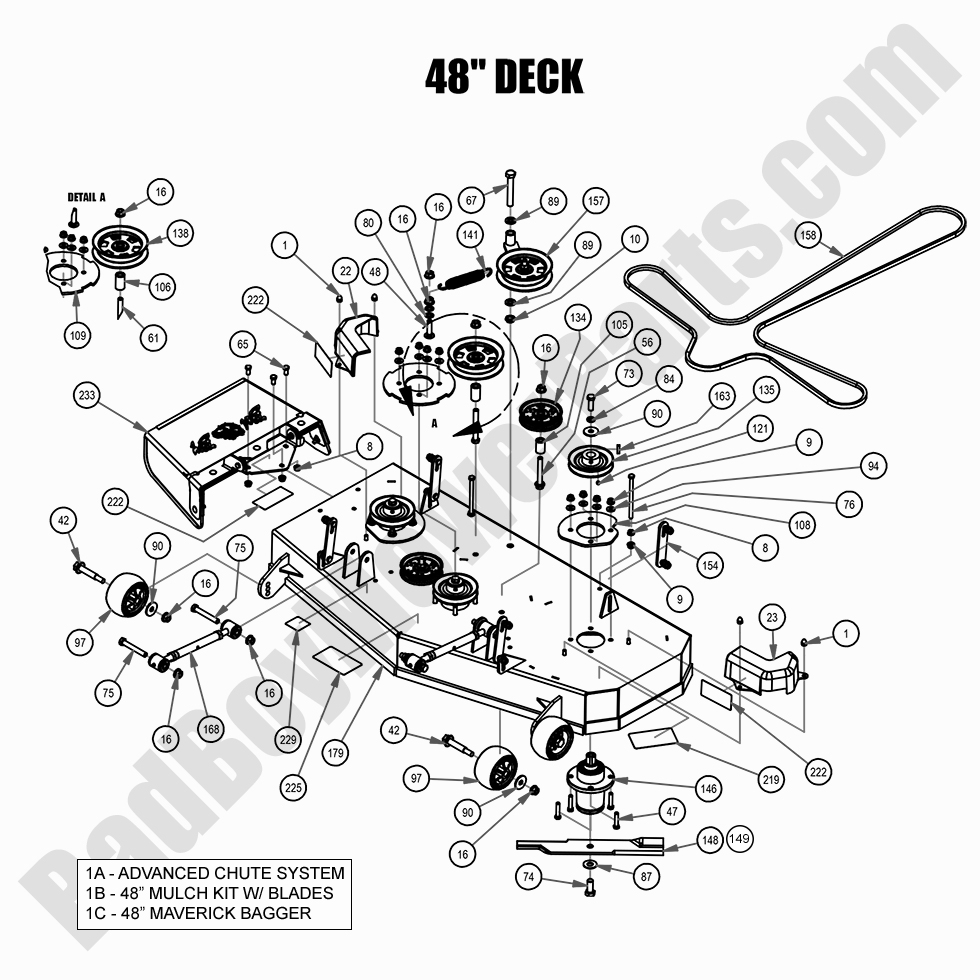

2021 Maverick - 48" Deck Assembly

2021 Maverick - 48" Deck Assembly

The 2021 Maverick 48" Deck Assembly ensures that your mower’s cutting performance is sharp and precise. If you're looking to replace or repair your mower’s deck, BadBoyMowerParts.com offers an extensive selection of Bad Boy Mower Parts designed specifically for the 2021 Maverick. Our detailed Bad Boy Mower Part diagrams allow you to easily identify the right components for the 48" deck assembly, whether you're replacing spindles, idlers, or other parts. We provide top-quality Bad Boy Lawn Mower Parts to ensure your deck is in optimal condition. Shopping for Bad Boy Parts Online is quick, and with Free Shipping On Orders Over $100, you’ll get all your deck parts delivered right to your door with no added shipping fees.

Bad Boy Mower Parts Lookup

2021 Maverick - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 088-1811-21 088-1811-21 - 48" Maverick Bagger (2021 - 2023)
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
23 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
42 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
47 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
48 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
56 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
61 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
65 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
67 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
73 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
74 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
75 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
76 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
80 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
84 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
87 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
89 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
90 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
94 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
97 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
105 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
106 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
108 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
109 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
121 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
134 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
135 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
138 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
141 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
146 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
148 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
149 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
154 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
157 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
158 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
163 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
168 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
179 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
219 091-0903-18 091-0903-18 - 48" Deck Decal (See Models Used On For Details)
$8.01
222 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
225 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
229 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
233 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
