2021 Maverick - 54" Deck Assembly

2021 Maverick - 54" Deck Assembly

The 2021 Maverick 54" Deck Assembly is designed to give your mower the precision and cutting power you need for larger lawns. If you need parts for this assembly, BadBoyMowerParts.com has everything you need. From spindles to deck idlers, our extensive inventory of Bad Boy Mower Parts for the 2021 Maverick model can help restore your mower to peak performance. With our Bad Boy Mower Part diagrams, you can easily find the exact components you need to replace or repair your 54" deck. We offer a wide variety of Bad Boy Lawn Mower Parts, ensuring you get high-quality components. Shopping for Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you’ll receive your parts without any additional shipping costs.

Bad Boy Mower Parts Lookup

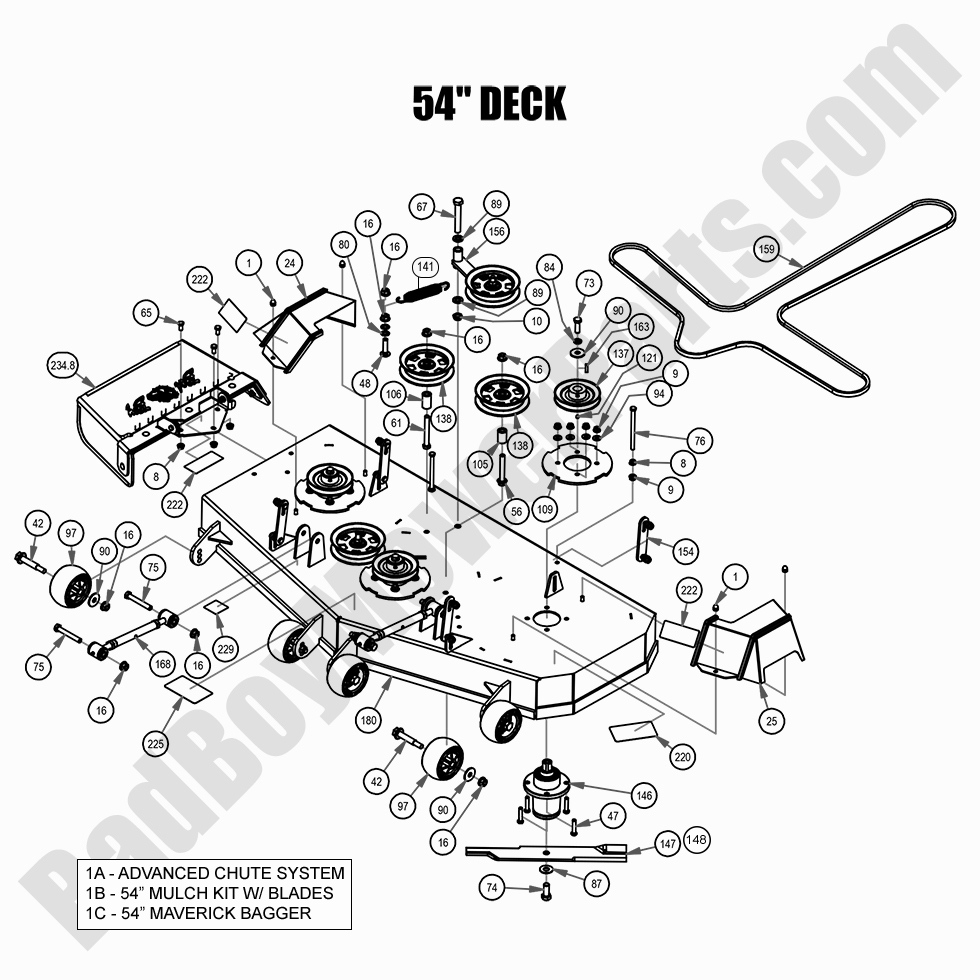

2021 Maverick - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
25 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
42 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
47 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
48 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
56 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
61 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
65 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
67 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
73 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
74 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
75 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
76 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
80 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
84 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
87 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
89 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
90 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
94 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
97 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
105 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
106 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
109 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
121 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
137 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
138 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
141 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
146 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
147 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
148 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
154 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
156 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
159 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
163 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
168 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
180 060-5417-00 060-5417-00 - 2017-2022 54" ZT & 2018-2022 54" Maverick Deck Shell
$1275.76
220 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
222 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
225 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
229 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
234.8 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
