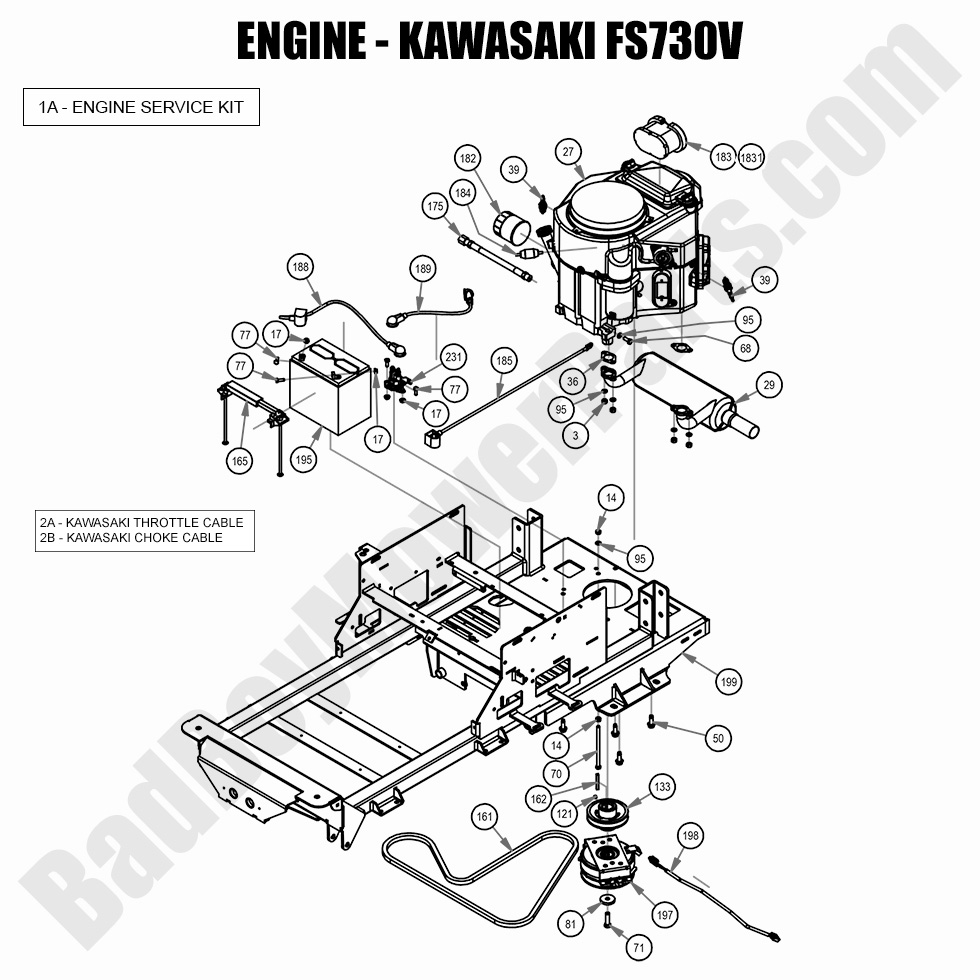

2021 Maverick - Engine - Kawasaki FS730V

2021 Maverick - Engine - Kawasaki FS730V

The 2021 Maverick Engine - Kawasaki FS730V provides exceptional performance for your mower, ensuring reliable power and cutting efficiency. If you need replacement parts for your Kawasaki FS730V engine, BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts to fit this engine model. Our Bad Boy Mower Part diagrams make it easy to find the specific components for your engine, from air filters to fuel components. We provide only high-quality Bad Boy Lawn Mower Parts to ensure your engine runs smoothly for years to come. Shopping for Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you can receive your parts delivered directly to your door at no additional cost.

Bad Boy Mower Parts Lookup

2021 Maverick - Engine - Kawasaki FS730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
3 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
27 015-0045-00 015-0045-00 - 26hp FS730V Engine FS730V-S14-R (See Models Used On For Details)
$2299.99
29 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
36A 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
39 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
50 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
68 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
70 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
71 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
77 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
81 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
95 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
121 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
133 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
161 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
162 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
165 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
175 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
182 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
183.0 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
183.1 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
184 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
185 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
188 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
189 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
197 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
198 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
199 070-5491-00 070-5491-00 - 2021 Maverick Frame--Painted
$1199.99
231 108-0001-00 108-0001-00 - Solenoid
$29.41
