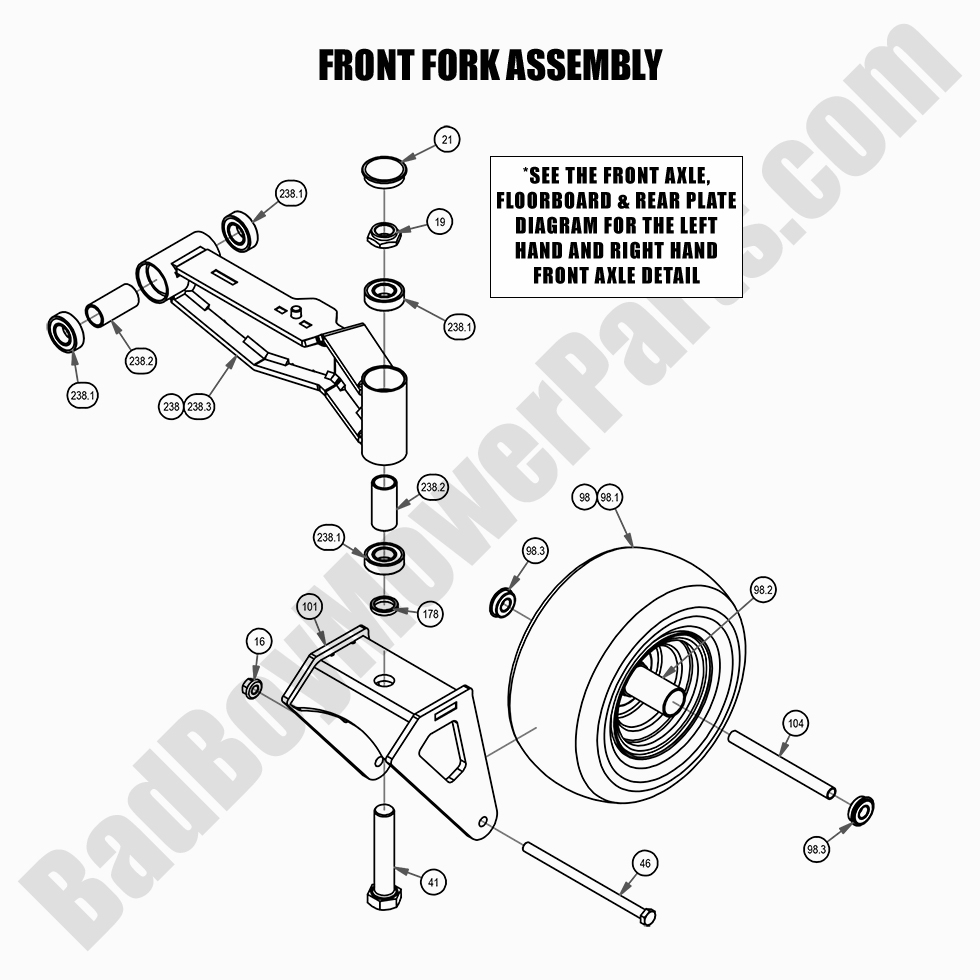

2021 Maverick - Front Fork Assembly

2021 Maverick - Front Fork Assembly

The 2021 Maverick Front Fork Assembly provides crucial support for the front end of your mower, ensuring stability and smooth operation. If you need to replace or repair your front fork assembly, BadBoyMowerParts.com has a wide variety of Bad Boy Mower Parts designed to fit the 2021 Maverick. Our Bad Boy Mower Part diagrams allow you to easily find the right front fork components for your mower. Whether you need the entire assembly or just individual parts, we have everything you need. We provide only the highest quality Bad Boy Lawn Mower Parts to ensure your mower performs at its best. Shopping for Bad Boy Parts Online is quick, and with Free Shipping On Orders Over $100, your parts will arrive at no extra shipping charge, making the replacement process hassle-free.

Bad Boy Mower Parts Lookup

2021 Maverick - Front Fork Assembly
  Position Number SKU Product Title Price
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
21 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
41 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
46 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
98.0 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
98.1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
98.2 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details)
$56.81
98.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
101 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
104 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
178 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
238.0 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
238.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
238.2 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
238.3 250-2801-00 250-2801-00 - I-Beam Front Arm-LH--Painted (See Models Used On For Details)
$93.64
