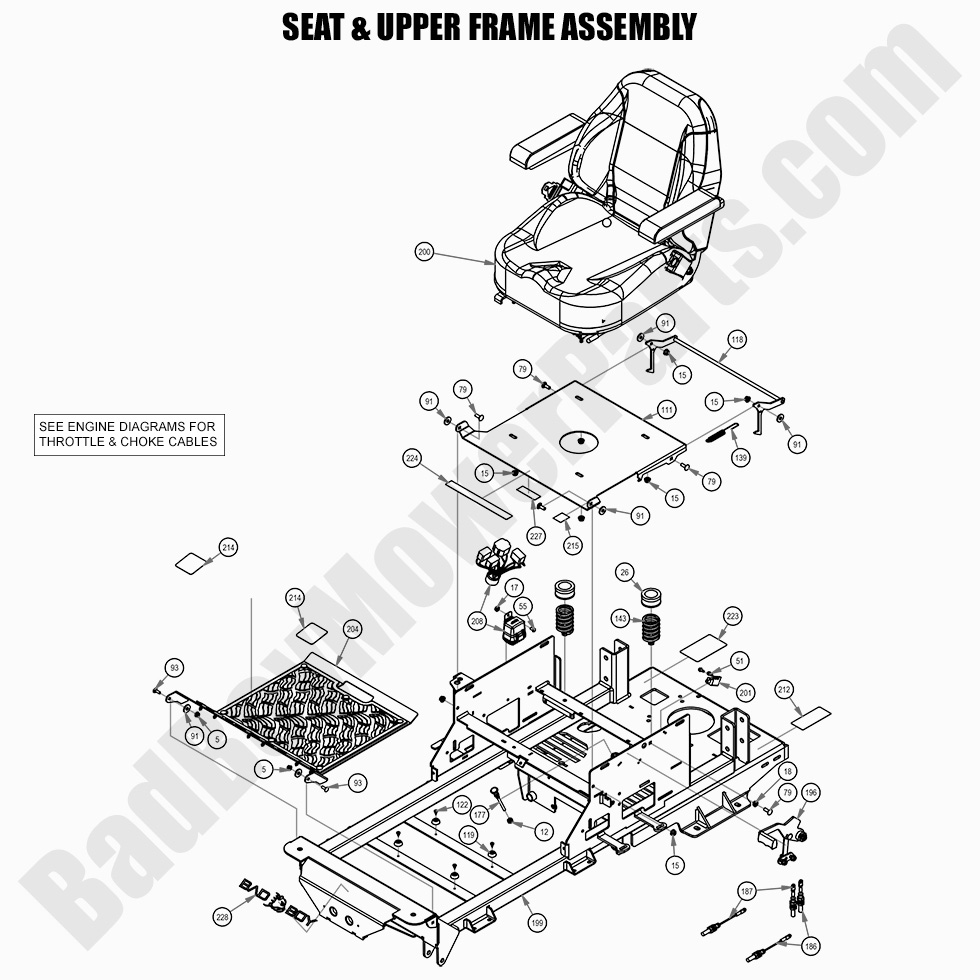

2021 Maverick - Seat & Upper Frame Assembly

2021 Maverick - Seat & Upper Frame Assembly

The 2021 Maverick Seat & Upper Frame Assembly is an essential part of your mower, providing both comfort and stability during use. If you're looking to replace or repair this assembly, BadBoyMowerParts.com offers a full range of Bad Boy Mower Parts designed specifically for the 2021 Maverick. Our Bad Boy Mower Part diagrams make it easy to locate the exact seat and upper frame components you need for a perfect fit. Whether you're upgrading for comfort or replacing damaged parts, we have the highest quality Bad Boy Lawn Mower Parts available. Shopping for Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you can have your parts delivered directly to your door without paying extra shipping costs.

Bad Boy Mower Parts Lookup

2021 Maverick - Seat & Upper Frame Assembly
  Position Number SKU Product Title Price
5 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
18 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
51 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
55 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
79 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
91 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
93 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
111 026-1016-00 026-1016-00 - Seat Plate
$102.11
118 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
119 029-4010-00 029-4010-00 - Button Bumper
$2.99
122 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
139 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
143 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
186 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
187 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
196 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
199 070-5491-00 070-5491-00 - 2021 Maverick Frame--Painted
$1199.99
200 071-2102-00 071-2102-00 - 2021 Maverick, 2022 ZT Elite Seat
$692.99
201 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
204 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
208 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
212 091-0015-00 091-0015-00 - EPA Build Date Punch Label All Mowers
$3.62
214 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
215 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
223 091-3017-50 091-3017-50 - Maverick Pump Belt Decal
$4.83
224 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
228 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
