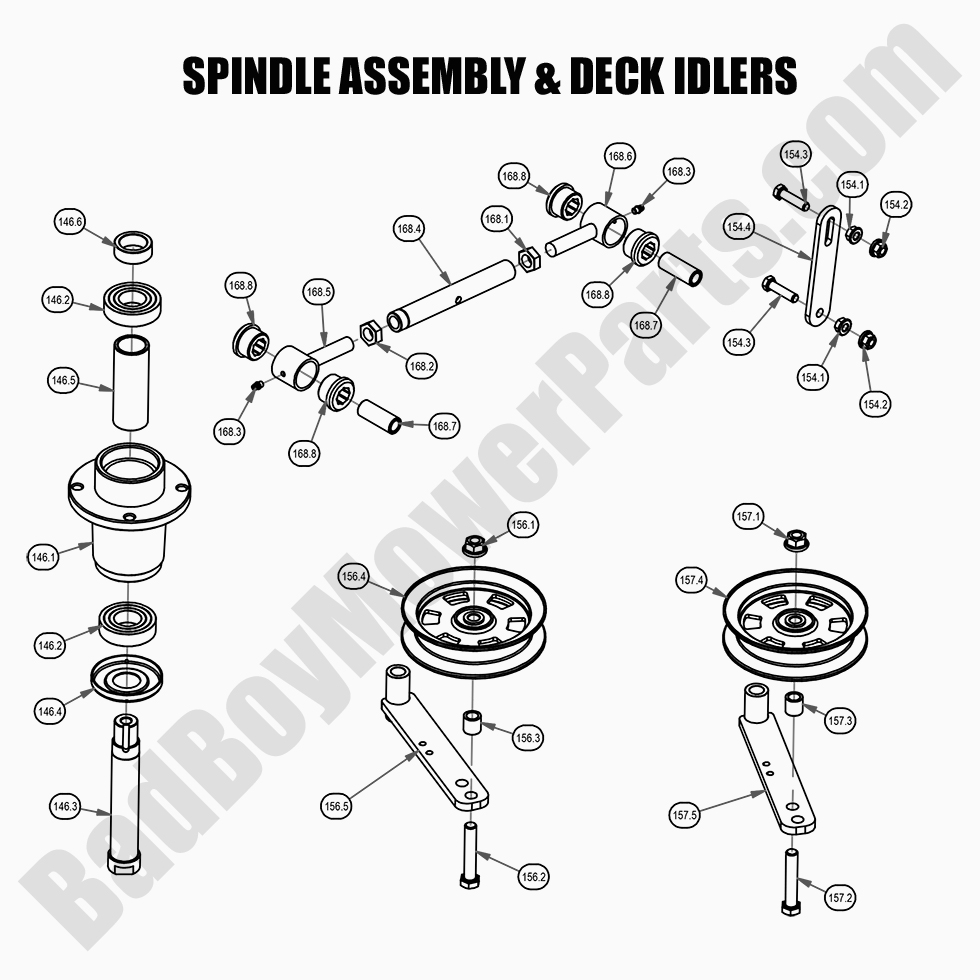

2021 Maverick - Spindle Assembly & Idlers

2021 Maverick - Spindle Assembly & Idlers

The 2021 Maverick Spindle Assembly & Idlers are crucial for the smooth functioning of the mower deck, ensuring the blades rotate properly for a clean, even cut. If you're in need of replacement spindle assemblies or idlers, BadBoyMowerParts.com offers a wide variety of Bad Boy Mower Parts for the 2021 Maverick. Our Bad Boy Mower Part diagrams make it simple to identify the exact parts you need, whether you’re replacing the entire spindle assembly or just the idlers. We offer high-quality Bad Boy Lawn Mower Parts that are designed for durability and performance. Shopping for Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, your parts will be delivered quickly, with no extra shipping costs.

Bad Boy Mower Parts Lookup

2021 Maverick - Spindle Assembly & Idlers
  Position Number SKU Product Title Price
146.1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
146.2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
146.3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
146.4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
146.5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
146.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
146 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
154.1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
154.2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
154.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
154.4 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
154 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
156.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
156.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
156.3 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
156.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
156.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
156 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
157 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
168.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39

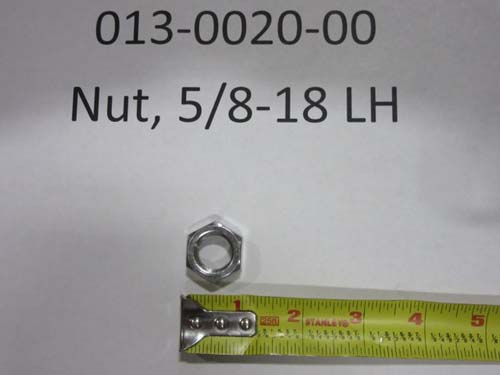

168.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39

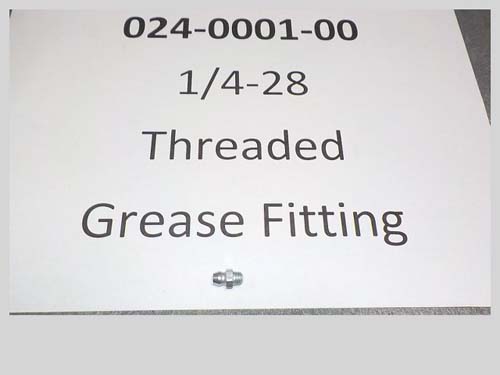

168.3 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99

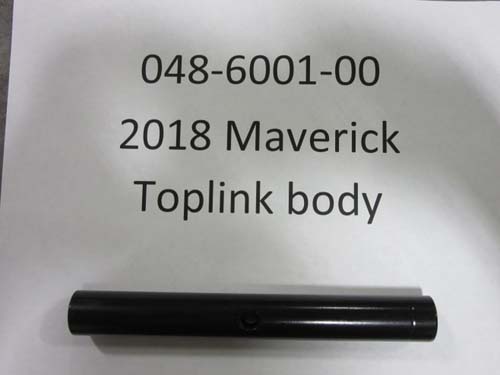

168.4 048-6001-00 048-6001-00 - Maverick/Compact Outlaw Toplink Body (See Models Used On For Details)
$28.32

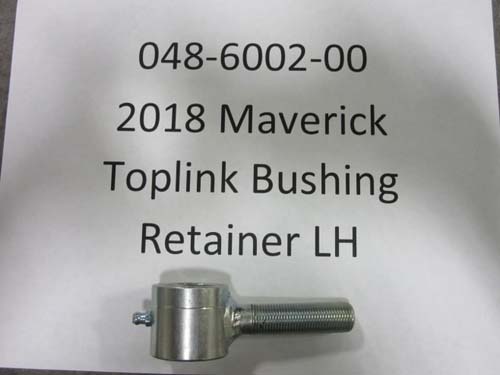

168.5 048-6002-00 048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer (See Models Used On For Details)
$28.32

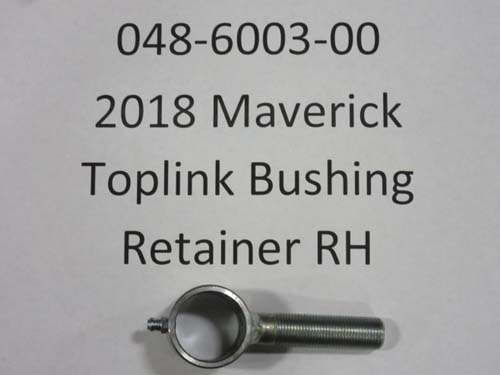

168.6 048-6003-00 048-6003-00 - Toplink Bushing Retainer (See Models Used On For Details)
$28.32

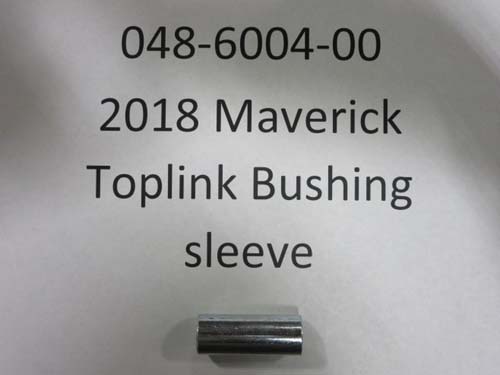

168.7 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
168.8 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09

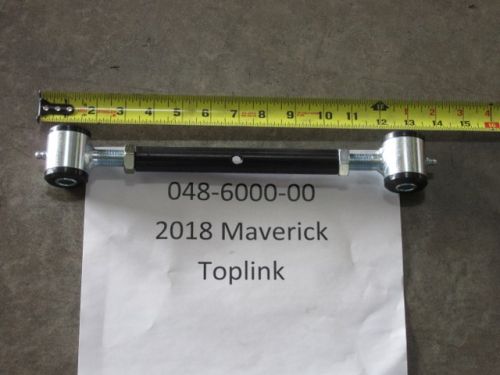

168 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
