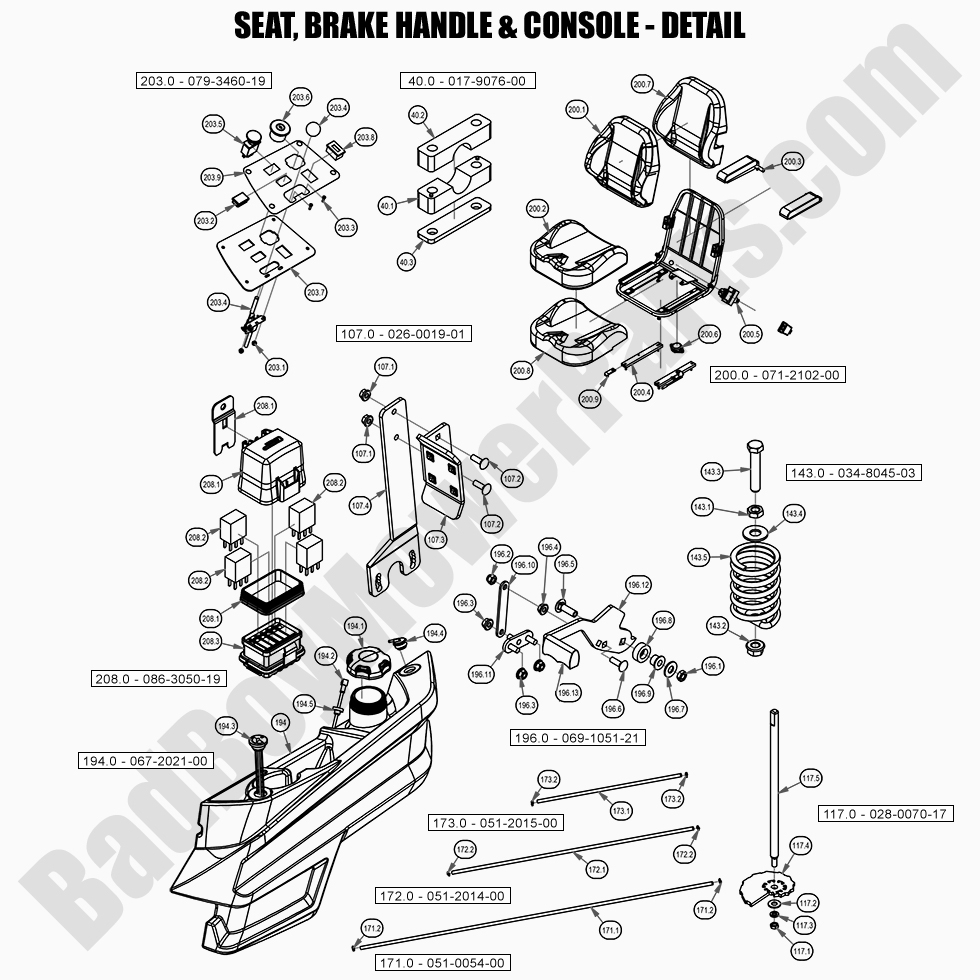

2021 Maverick - Seat, Brake & Console - Detail

2021 Maverick - Seat, Brake & Console - Detail

The 2021 Maverick Seat, Brake & Console - Detail components work together to ensure safe and comfortable operation of your mower. If you're in need of replacement parts for the seat, brake, or console, BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts designed for the 2021 Maverick model. Our Bad Boy Mower Part diagrams help you quickly identify and locate the necessary components, whether it’s the seat itself, the brake assembly, or the control console. We provide only top-quality Bad Boy Lawn Mower Parts that fit perfectly and provide long-lasting performance. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you’ll receive your parts delivered right to your door without additional shipping fees.

Bad Boy Mower Parts Lookup

2021 Maverick - Seat, Brake & Console - Detail
  Position Number SKU Product Title Price
40.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
40.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
40.2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
40.3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
107-.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
107-1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
107.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
107.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
107.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
117.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
117.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
117.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
117.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
117.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
117.5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
143.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
143.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
143.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
143.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
143.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
171.0 051-0054-00 051-0054-00 - Maverick Honda Fuel Line (obsolete)
use part #051-2014-00
$40.53
171.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
171.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
172.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
172.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
173.0 051-2015-00 051-2015-00 - Fuel Line Assy. 22"
$30.55
194.0 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
194.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
194.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
194.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
194.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
194.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
196.0 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
196.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
196.2 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
196.4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
196.5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
196.8 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
196.9 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
196.10 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
196.11 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
196.13 069-3010-00 069-3010-00 - Brake Handle Rubber
$18.45
200.0 071-2102-00 071-2102-00 - 2021 Maverick, 2022 ZT Elite Seat
$692.99
200.1 071-2102-03 071-2102-03 - Back Cover
$145.95
200.2 071-2102-02 071-2102-02 - Seat Cover (See Models Used On For Details)
$131.37
200.3 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99
200.4 071-5015-00 071-5015-00 - Seat Rails
$93.69
200.5 071-5083-00 071-5083-00 - Seat Belt (See Models Used On For Details)
$106.14
200.6 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
200.7 071-2102-01 071-2102-01 - Foam Molded Back for 071-2102-00
$69.54
200.9 039-2157-00 039-2157-00 - Black Seat stop
$14.19
203.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
203.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
203.2 018-1040-00 018-1040-00 - Light Plug
$2.99
203.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
203.4 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
203.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
203.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
203.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
203.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
203.9 091-0338-18 091-0338-18 - Control Panel Decal 2018-2021 MZ/Magnum/ZT/Maverick
$14.97
208.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
208.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
208.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
208.3 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
