2021 Rebel - Cover & Seat Pan

2021 Rebel - Cover & Seat Pan

The 2021 Rebel Cover & Seat Pan provides crucial protection and comfort for your mower. If you’re looking to replace or upgrade your seat pan or cover, BadBoyMowerParts.com has a wide selection of Bad Boy Mower Parts tailored to the 2021 Rebel. From seat pans to the covers that shield your mower’s seating area, we offer the right parts to fit your mower’s specifications. With our Bad Boy Mower Part diagrams, identifying and ordering the correct parts is straightforward. We provide top-quality Bad Boy Lawn Mower Parts that ensure durability and long-lasting performance. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you’ll receive your parts at no extra shipping cost.

Bad Boy Mower Parts Lookup

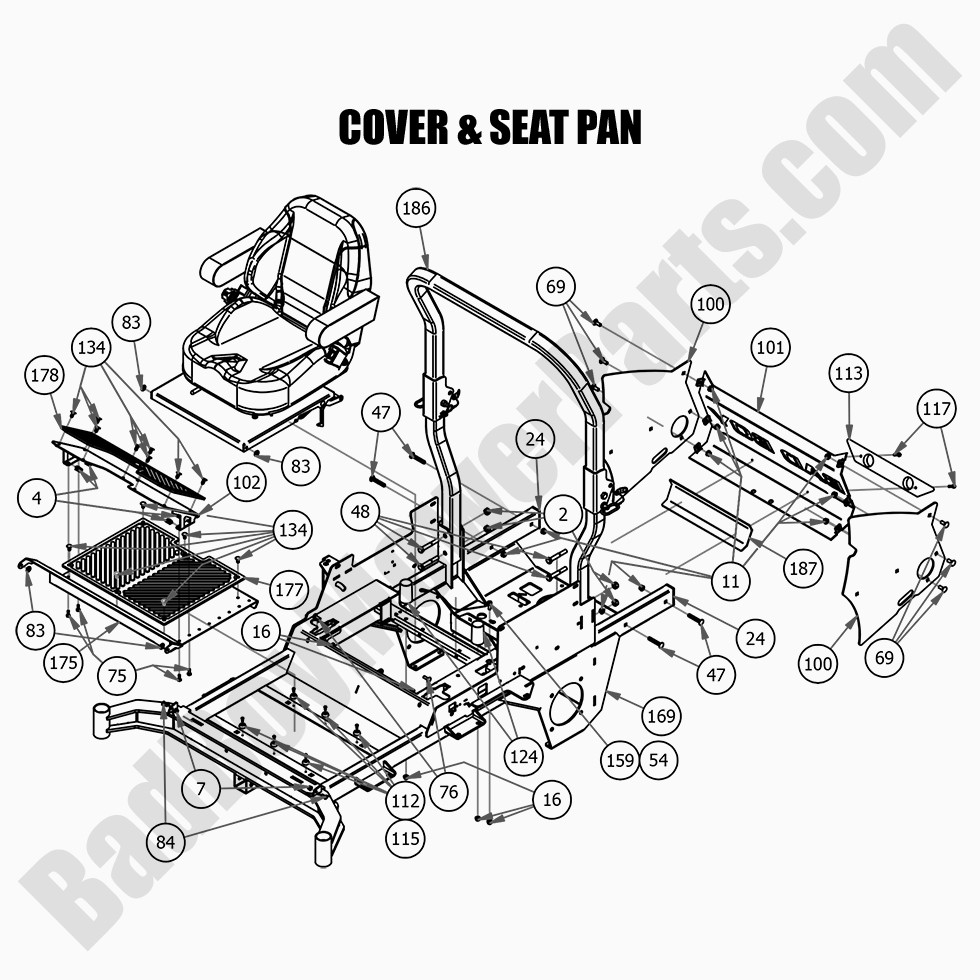

2021 Rebel - Cover & Seat Pan
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
4 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
7 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
47 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
48 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
54 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
69 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
75 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
76 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
83 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
84 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99

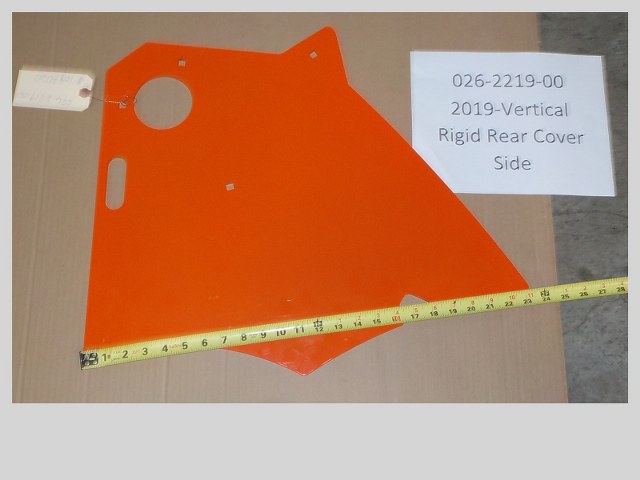

100 026-2219-00 026-2219-00 - 2019-2022 Vertical Rigid Rear Cover Side Component
$169.99
101 026-2221-00 026-2221-00 - Vertical Rear Cover Tailgate Component (See Models Used On For Detail)
$225.56
102 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
112 029-4010-00 029-4010-00 - Button Bumper
$2.99
113 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
115 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
117 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
124 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
134 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
159 064-8081-00 064-8081-00 - Seat Cable
$15.60
169 070-5371-19 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly
$1299.99
175 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$109.99
177 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
178 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2024 Rebel, Renegade & Rogue
$78.10
186 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
187 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
