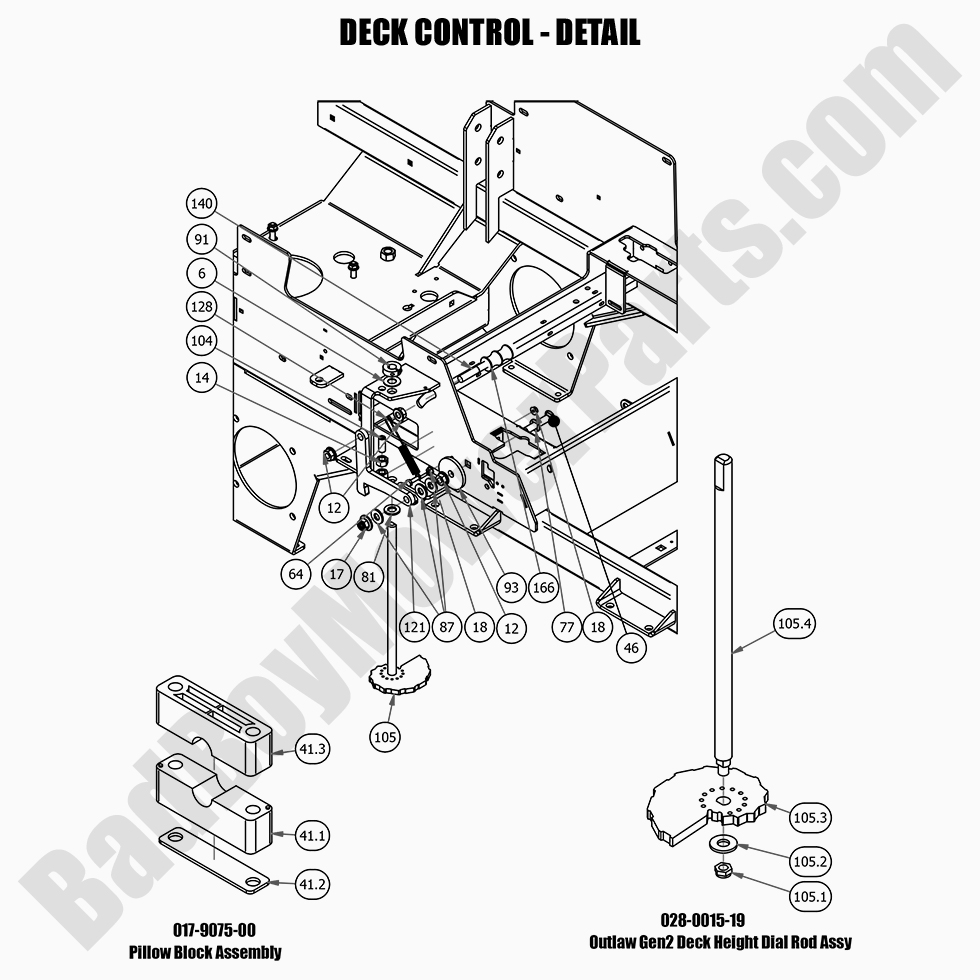

2021 Rebel - Deck Control - Detail

2021 Rebel - Deck Control - Detail

The 2021 Rebel Deck Control - Detail is a vital component for controlling the deck height and ensuring a smooth, efficient cut. If you need to repair or replace the deck control system, BadBoyMowerParts.com offers an extensive range of Bad Boy Mower Parts for the 2021 Rebel. Our detailed Bad Boy Mower Part diagrams make it easy to find the exact parts needed for your deck control system. We stock high-quality Bad Boy Lawn Mower Parts that are designed to provide long-lasting performance. When shopping for Bad Boy Parts Online, you'll find everything from control levers to linkage assemblies. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while keeping your mower in peak condition.

Bad Boy Mower Parts Lookup

2021 Rebel - Deck Control - Detail
  Position Number SKU Product Title Price
6 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
12 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
41.0 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
41.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
41.2 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
41.3 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
46 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
64 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
77 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
81 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
87 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
91 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
93 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
104 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
105.0 028-0015-19 028-0015-19 - Deck Height Dial Rod Assembly 2019-2024 Rebel, Renegade & Rogue
$42.79
105.1 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
105.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
105.3 026-1101-00 026-1101-00 - Deck Height Cam
$15.55
105.4 028-0015-00 028-0015-00 - "R" Series Dial Rod 2019-2022 Rebel, Renegade & Rogue
$17.64
121 031-0125-00 031-0125-00 - Deck Travel Lock Lever 2019-2022 Rebel, Renegade & Rogue
$28.39
128 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
140 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
166 069-4011-00 069-4011-00 - Travel Lock Rubber Grip
$8.79
