2021 Rebel - Engine - Yamaha

2021 Rebel - Engine - Yamaha

The 2021 Rebel Engine - Yamaha is known for its reliability and strong performance. If you’re in need of parts for this engine, BadBoyMowerParts.com has a full selection of Bad Boy Mower Parts designed for the Yamaha engine. From engine maintenance parts like filters and gaskets to more complex components, we have the parts you need. Our Bad Boy Mower Part diagrams make it easy to identify each part to ensure the right fit for your engine. We only offer high-quality Bad Boy Lawn Mower Parts, so you can trust that your Yamaha engine will continue to run efficiently. Ordering Bad Boy Parts Online is fast, and with Free Shipping On Orders Over $100, you can get the parts delivered without worrying about extra shipping fees.

Bad Boy Mower Parts Lookup

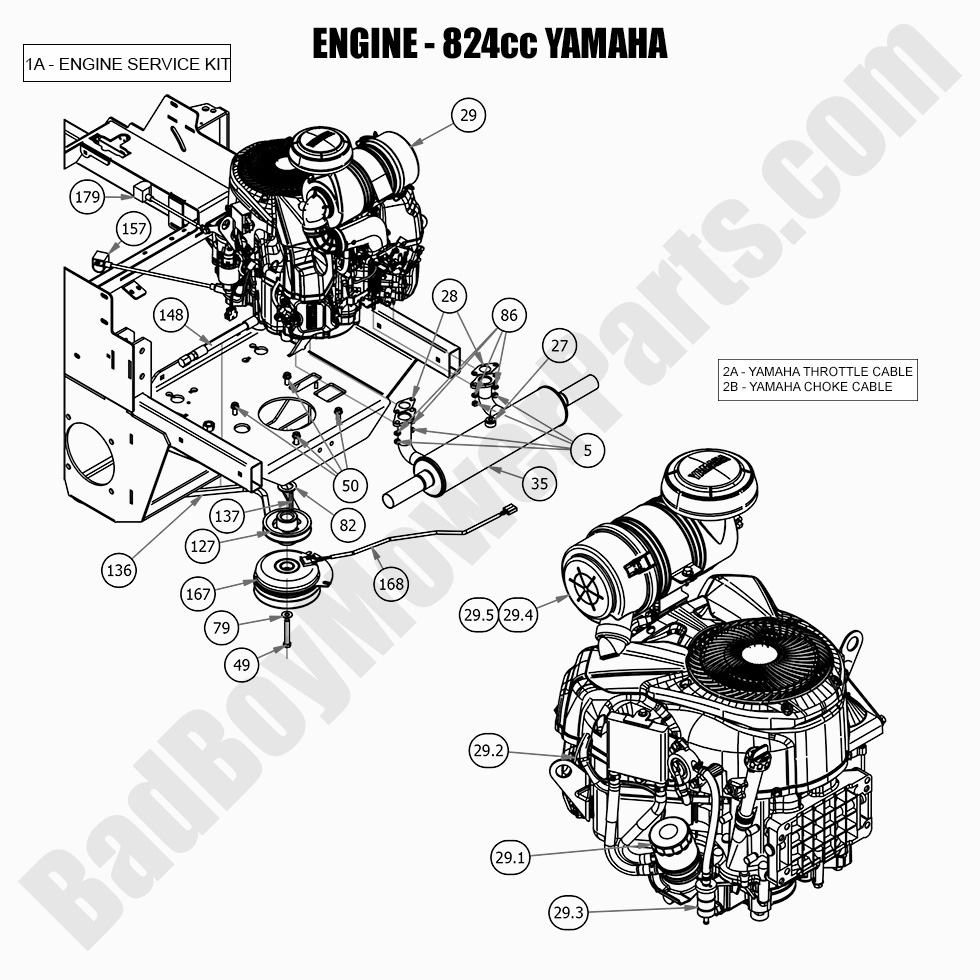

2021 Rebel - Engine - Yamaha
  Position Number SKU Product Title Price
1A 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
27 015-0050-01 015-0050-01 - O2 Bung Plug 12mm x 1.25
$9.89
28 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01
29.0 015-0076-00 015-0076-00 - Yamaha Engine-27.5hp Carbureted
$3981.37
29.1 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$34.23
29.2 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$10.99
29.3 015-0053-21 015-0053-21 - Fuel Filter for Yamaha MX825VJ7X6
$10.99
29.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
29.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
35 015-1015-00 015-1015-00 - 2019 - 2022 Rebel/Rogue Yamaha 824 EFI/Carb Muffler Catalytic Combustion # 582984-MUF17
$108.90
49 018-0074-00 018-0074-00 - 7/16-20 x 2 3/4 Hex Bolt
$2.99
50 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
79 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
82 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
86 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
127 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
136 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
137 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
148 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
157 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
167 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
168 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
179 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
