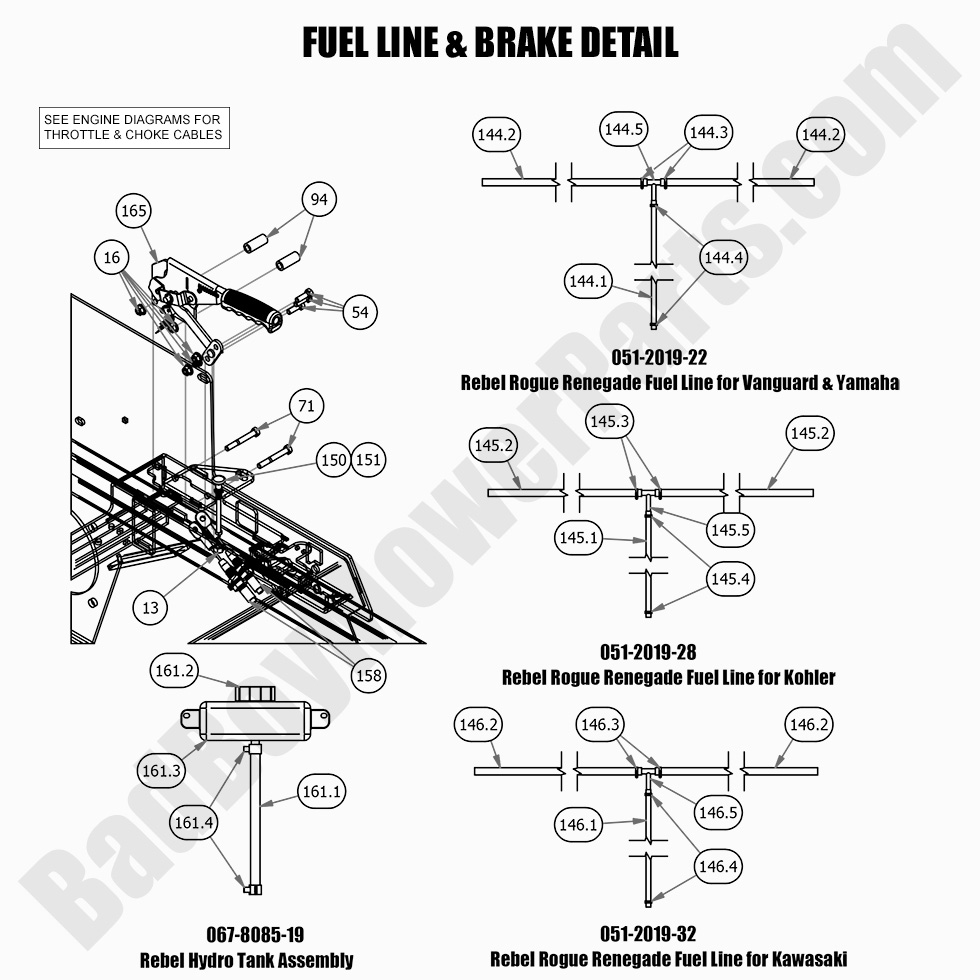

2021 Rebel - Fuel Line & Brake Detail

2021 Rebel - Fuel Line & Brake Detail

The 2021 Rebel Fuel Line & Brake Detail is a crucial aspect of maintaining your mower’s performance and safety. If you need to replace or repair the fuel line or brake system, BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts for your 2021 Rebel. We provide easy-to-understand Bad Boy Mower Part diagrams to help you identify the necessary components for the fuel line and brake systems. Our high-quality Bad Boy Lawn Mower Parts are made to ensure smooth and reliable operation. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can have all the parts you need delivered directly to your door without the extra cost.

Bad Boy Mower Parts Lookup

2021 Rebel - Fuel Line & Brake Detail
  Position Number SKU Product Title Price
13 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
54 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
71 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
94 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
141.3 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
144.0 051-2019-22 051-2019-22 - Rebel Rogue Renegade Fuel Line for Vanguard and Yamaha Units
$44.93
144.1 051-8067-22 051-8067-22 - 22" 1/4" Fuel Line No Clamp
$11.76
144.2 051-8075-26 051-8075-26 - 26" 5/16 Fuel Line No Clamps
$18.72
144.4 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
144.5 073-8069-00 073-8069-00 - 5/16 x 5/16 x 1/4 Fuel Line T
$9.77
145.0 051-2019-28 051-2019-28 - Rebel Rogue Renegade Fuel Line for Kohler
$53.49
145.1 051-8067-28 051-8067-28 - 28" 1/4 Fuel Line No Clamp
$12.35
146.0 051-2019-32 051-2019-32 - Rebel Rogue Fuel Line for Kawasaki Units
$53.49
146.1 051-8067-32 051-8067-32 - 32" 1/4" Fuel Line No Clamps
$16.04
158 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
161.0 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
161.1 051-0019-00 051-0019-00 - 7.5" Hydro Tank Hose 2019-2022 Rebel
$11.34
161.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
161.3 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
161.4 072-8074-00 072-8074-00 - 5/8" Wire Clamp - Outlaw & Rebel
$4.81
165 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
