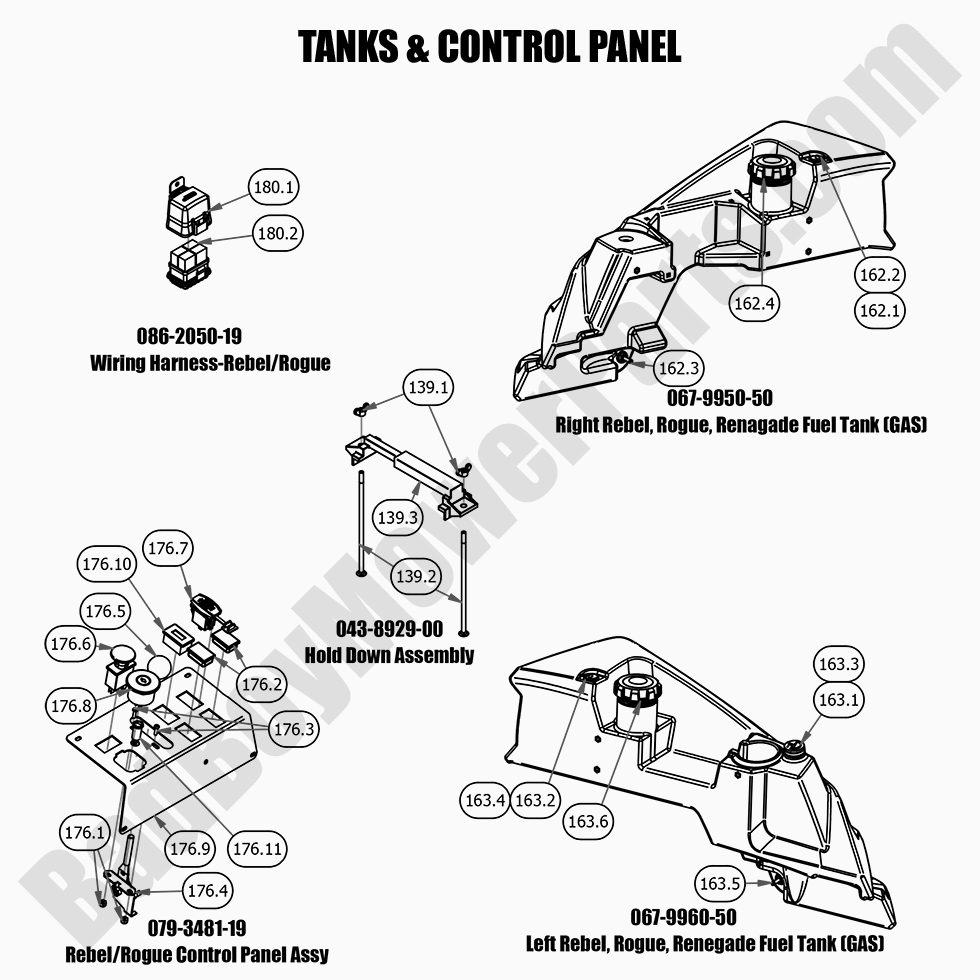

2021 Rebel - Tanks and Control Panel

2021 Rebel - Tanks and Control Panel

The 2021 Rebel Tanks and Control Panel are key components in ensuring the smooth operation of your mower. Whether you're replacing the fuel tank or upgrading the control panel, BadBoyMowerParts.com has a wide selection of Bad Boy Mower Parts to suit your needs. Our detailed Bad Boy Mower Part diagrams make it easy to find the right parts for your mower’s tanks and control panel. With Bad Boy Lawn Mower Parts designed for durability, you can count on reliable performance. Ordering Bad Boy Parts Online is straightforward, and with Free Shipping On Orders Over $100, you won’t have to worry about extra shipping costs.

Bad Boy Mower Parts Lookup

2021 Rebel - Tanks and Control Panel
  Position Number SKU Product Title Price
139.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
139.1 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
139.2 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
162.0 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
162.2 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
162.3 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
162.4 067-9904-00 067-9904-00 - Fuel Cap for Fuel Tank 2019-2025 Rebel, Renegade Gas & Rogue
$28.39
163.0 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
163.1 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
163.3 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
176.0 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
176.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
176.2 018-1040-00 018-1040-00 - Light Plug
$2.99
176.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
176.4 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
176.5 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
176.6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
176.7 077-2076-00 077-2076-00 - USB Port
$46.84
176.8 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
176.9 079-3481-00 079-3481-00 - Control Panel
$10.99
176.10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
176.11 089-1000-00 089-1000-00 - Oil Light
$12.63
180.0 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
180.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
180.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
