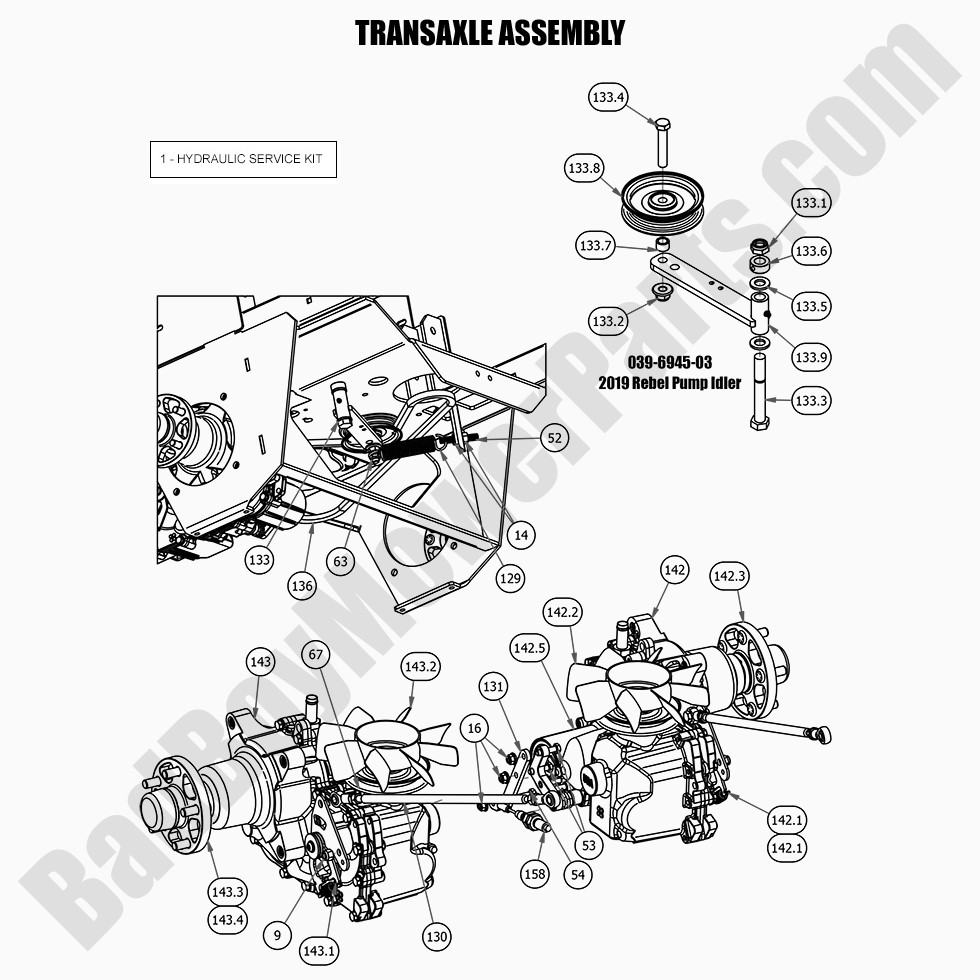

2021 Rebel - Transaxle Assembly

2021 Rebel - Transaxle Assembly

The 2021 Rebel Transaxle Assembly plays a critical role in the performance of your mower, controlling the movement and speed. If you need replacement parts or maintenance for your transaxle assembly, BadBoyMowerParts.com offers a full range of Bad Boy Mower Parts for your mower. Our Bad Boy Mower Part diagrams simplify the process of identifying the correct transaxle parts for your 2021 Rebel. We only offer top-quality Bad Boy Lawn Mower Parts, ensuring your mower runs smoothly for longer. Ordering Bad Boy Parts Online is easy and convenient, and with Free Shipping On Orders Over $100, you’ll save on shipping while getting your mower parts delivered fast.

Bad Boy Mower Parts Lookup

2021 Rebel - Transaxle Assembly
  Position Number SKU Product Title Price
1 085-4050-00 085-4050-00 - Hydro-Gear ZT4400 Hydro Service Kit
$124.44
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
52 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
53 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
54 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
63 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
67 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
129 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
130 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58
131 039-2135-00 039-2135-00 - Brake Adapter Bracket - 4400 Transaxle (See Models Used On)
$7.69
133.0 039-6945-03 039-6945-03 - Pump Idler Assembly
$53.45
133.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
133.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
133.3 018-5309-00 018-5309-00 - 5/8-11 x 4-1/2 Hex Bolt
$2.99
133.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
133.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
133.6 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
133.7 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
133.8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
133.9 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
136 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
142.1 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
142.2 050-1025-00 050-1025-00 - Fan/Pulley Kit For ZT-4400 Transaxle (See Models Used On For Details)
$109.46
142.3 050-2082-00 050-2082-00 - Hub for 4400 Transaxle
$156.99
142.5 063-1070-00 063-1070-00 - Hydraulic Filter for ZT4400 Transaxle
$36.37
142 050-1000-00 050-1000-00 - 4400 Transaxle-Left
$909.99
143.4 050-8003-00 050-8003-00 - Seal Kit for 4400 Series Outlaw Transaxle
$106.48
143 050-1050-00 050-1050-00 - 4400 Transaxle - Right
$909.99
158 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
