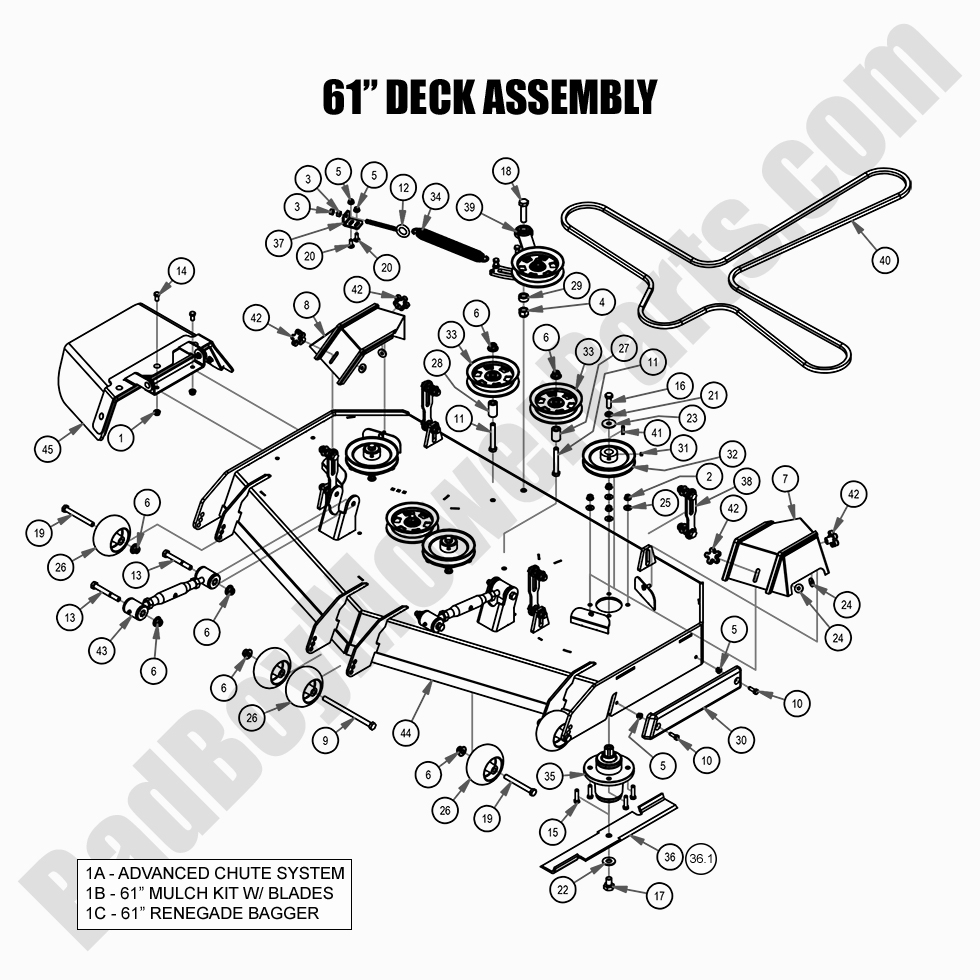

2021 Renegade - Diesel - 61" Deck Assembly

2021 Renegade - Diesel - 61" Deck Assembly

The 2021 Renegade - Diesel 61" Deck Assembly is an essential part of your mower’s cutting system. If you're looking to replace or maintain your mower's deck, BadBoyMowerParts.com offers the best Bad Boy Mower Parts for the job. Our Bad Boy Mower Part diagrams help you find exactly what you need for your 2021 Renegade - Diesel 61" deck. Designed for superior performance and longevity, our Bad Boy Lawn Mower Parts are built to last. When you shop for Bad Boy Parts Online, you’ll benefit from Free Shipping On Orders Over $100, making your repairs and upgrades more affordable.

Bad Boy Mower Parts Lookup

2021 Renegade - Diesel - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
8 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
30 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
31 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
32 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
35 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
36.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
36 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
37 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
38 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
39 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
40 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
41 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
42 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
43 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
44 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
45 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
