2021 Renegade - Diesel - Floorboard, ROPS & Radiator

2021 Renegade - Diesel - Floorboard, ROPS & Radiator

The 2021 Renegade - Diesel Floorboard, ROPS & Radiator are key components of your mower’s structure and cooling system. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts for all these components. Whether you're replacing a worn floorboard, fixing the ROPS, or maintaining the radiator, we provide detailed Bad Boy Mower Part diagrams to help you find the right parts. Our Bad Boy Lawn Mower Parts are built to meet the highest standards of performance and reliability. When you shop for Bad Boy Parts Online, you get fast and secure shipping, and with Free Shipping On Orders Over $100, you can save on your next order.

Bad Boy Mower Parts Lookup

2021 Renegade - Diesel - Floorboard, ROPS & Radiator
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
7 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
9 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
10 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
11 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
20 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
33 014-5065-00 014-5065-00 - Upper Rear Cover 2019-2021 Renegade Diesel
$21.39

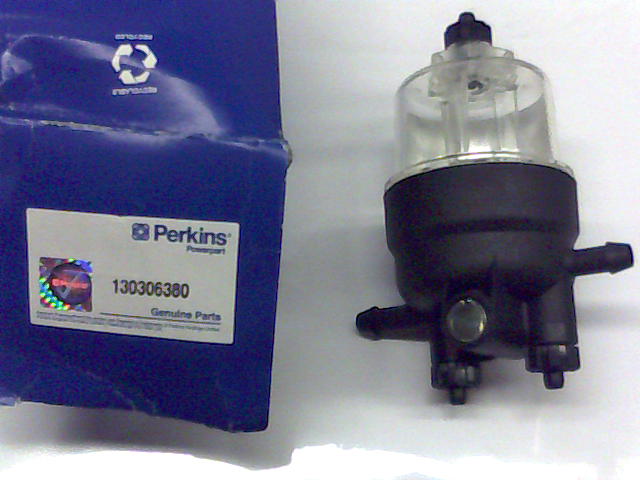

35 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99

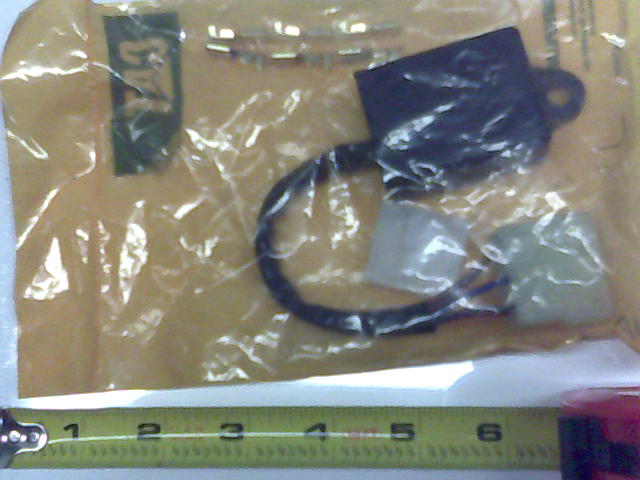

37 015-0015-00 015-0015-00 - Auto Shut Down for Cat Diesels
$699.99
39 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89

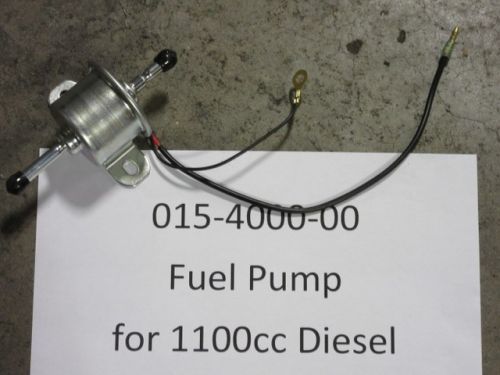

41 015-4000-00 015-4000-00 - Fuel Pump for 1100cc Diesel
$331.72

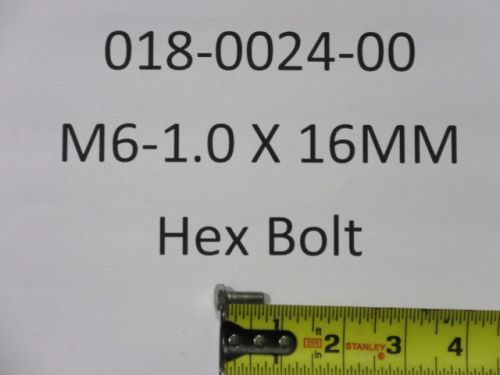

51 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99

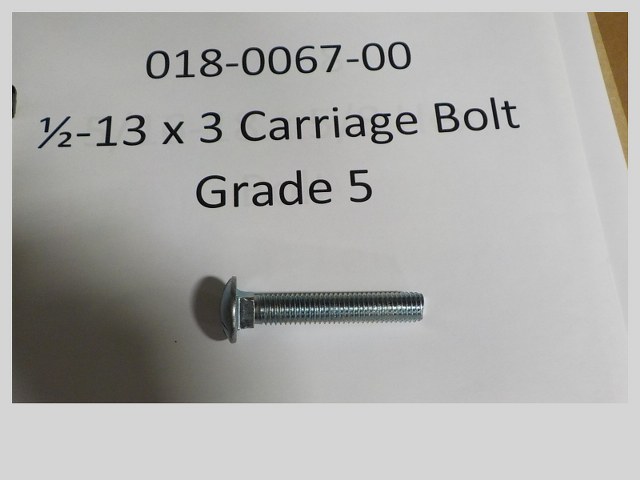

59 018-0067-00 018-0067-00 - 1/2-13 x 3 Carriage Bolt
$3.29
65 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
70 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62

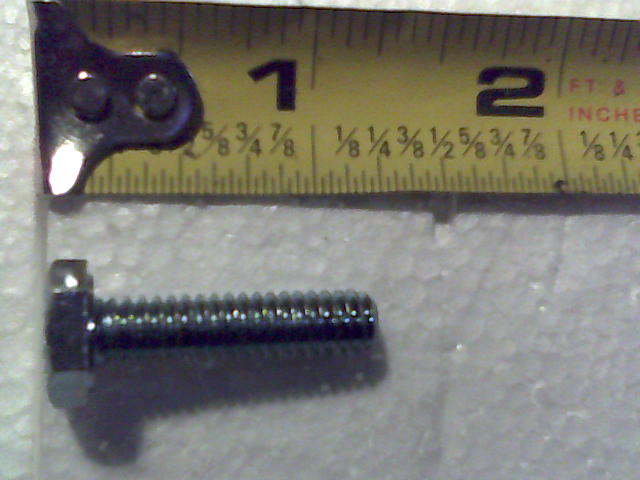

76 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
82 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
84 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
85 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
88 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
98 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99

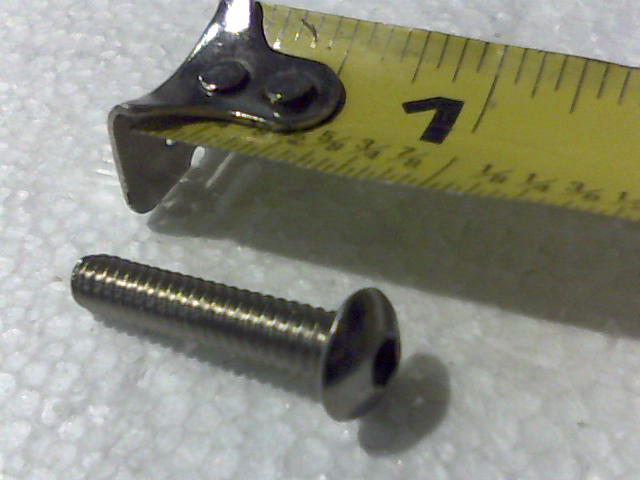

99 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99

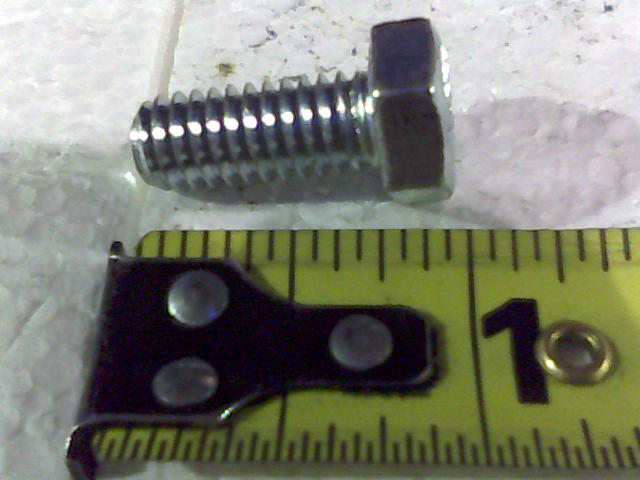

100 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
108 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
111 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
113 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
114 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
115 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99

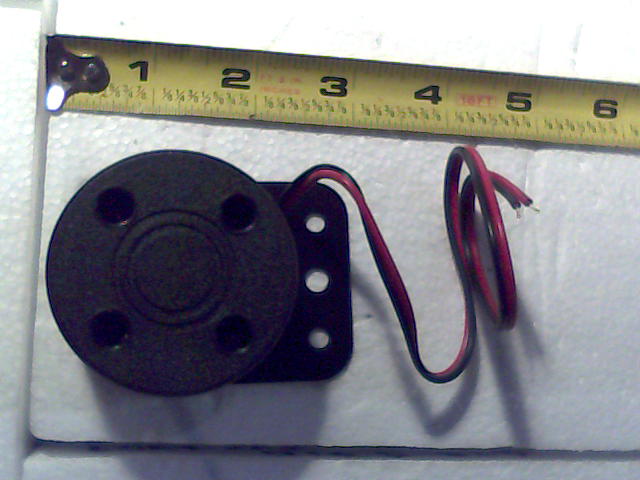

120 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
142 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
152 029-4010-00 029-4010-00 - Button Bumper
$2.99
157 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
185 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
203 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99

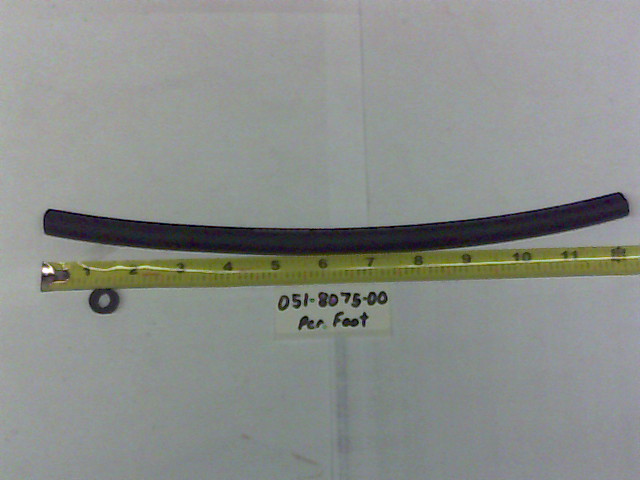

204 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
212.0 061-5001-98 061-5001-98 - 2019 Diesel Radiator Kit No Longer Available
Obsolete.

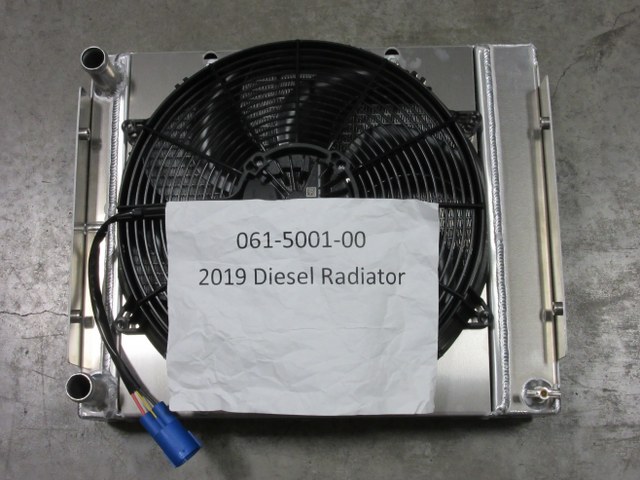

212.1 061-5001-00 061-5001-00 - 2019 Diesel Radiator
$1399.99
212.2 014-3005-00 014-3005-00 - Electric Fan for Radiator (See Models Used On For Details)
$729.99
212.3 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
212.4 026-2008-00 026-2008-00 - Screen Retention Plate for 2019 Diesel Radiator Ki
$26.74

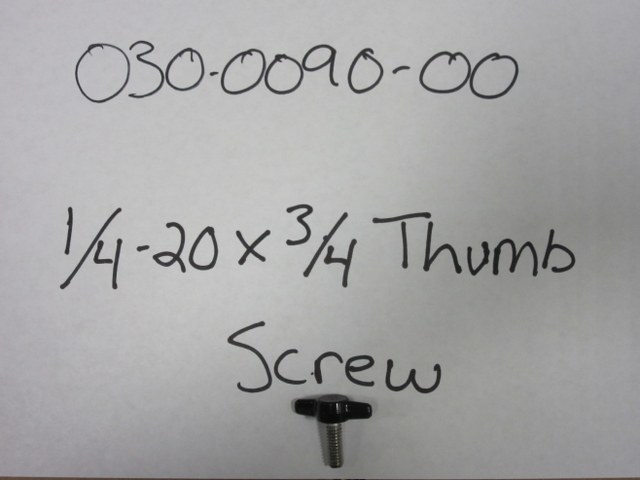

212.5 030-0090-00 030-0090-00 - 1/4-20 x 3/4 Thumb Screw
$7.36
212.6 024-0015-00 024-0015-00 - 1/4 Barb to 3/16 NPT Overflow Fitting fits the 2019-2024 Renegade Diesel Radiator
$16.04
212.7 015-0098-00 015-0098-00 - 1/4 NPT Drain Plug for the Radiator 2019-2025 Renegade Diesel
$8.79
212.9 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
212.10 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99

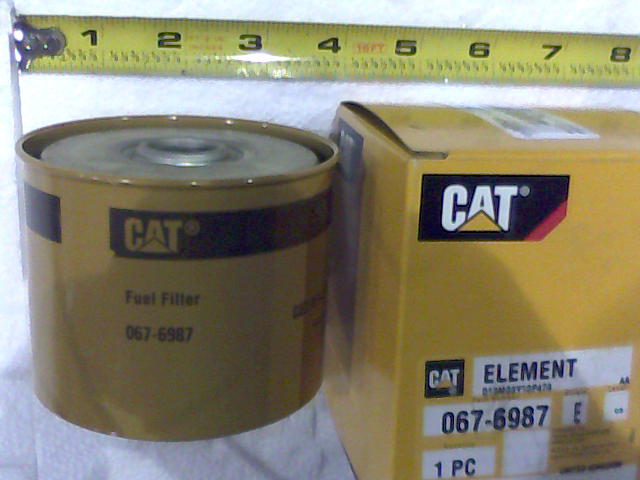

214 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
220 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
233 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99

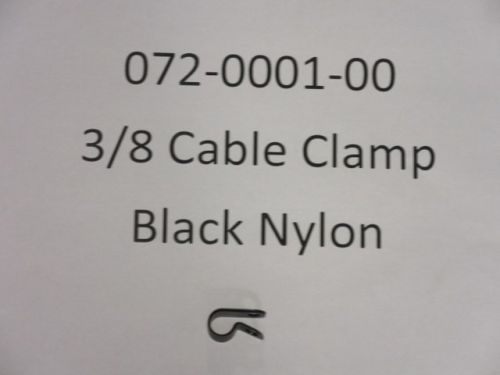

235 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
239 072-8067-00 072-8067-00 - 5/8 Hose Clamp SS
$2.99
242 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
243 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
248 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$109.99
252 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
253 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2024 Rebel, Renegade & Rogue
$78.10
254 084-4015-00 084-4015-00 - Rubber Trim
$10.99
256 086-0247-19 086-0247-19 - 2019-2021 24.7 Renegade Diesel Harness
$509.41

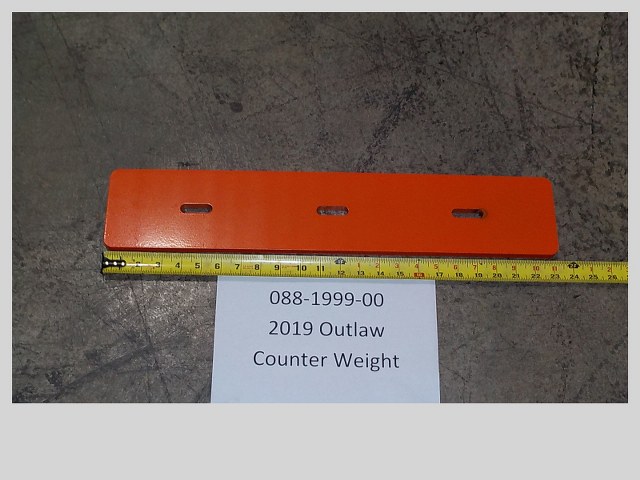

262 088-1999-00 088-1999-00 - Outlaw Counter Weight (See Models Used On For Details)
$74.99
263 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
267 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
268 201-8025-00 201-8025-00 - 2019 Diesel Radiator Mount-Front
$42.79
269 201-8026-00 201-8026-00 - 2019 Diesel Radiator Mount-Right
$42.79
270 201-8027-00 201-8027-00 - 2019 Diesel Radiator Mount-Left
$43.86
