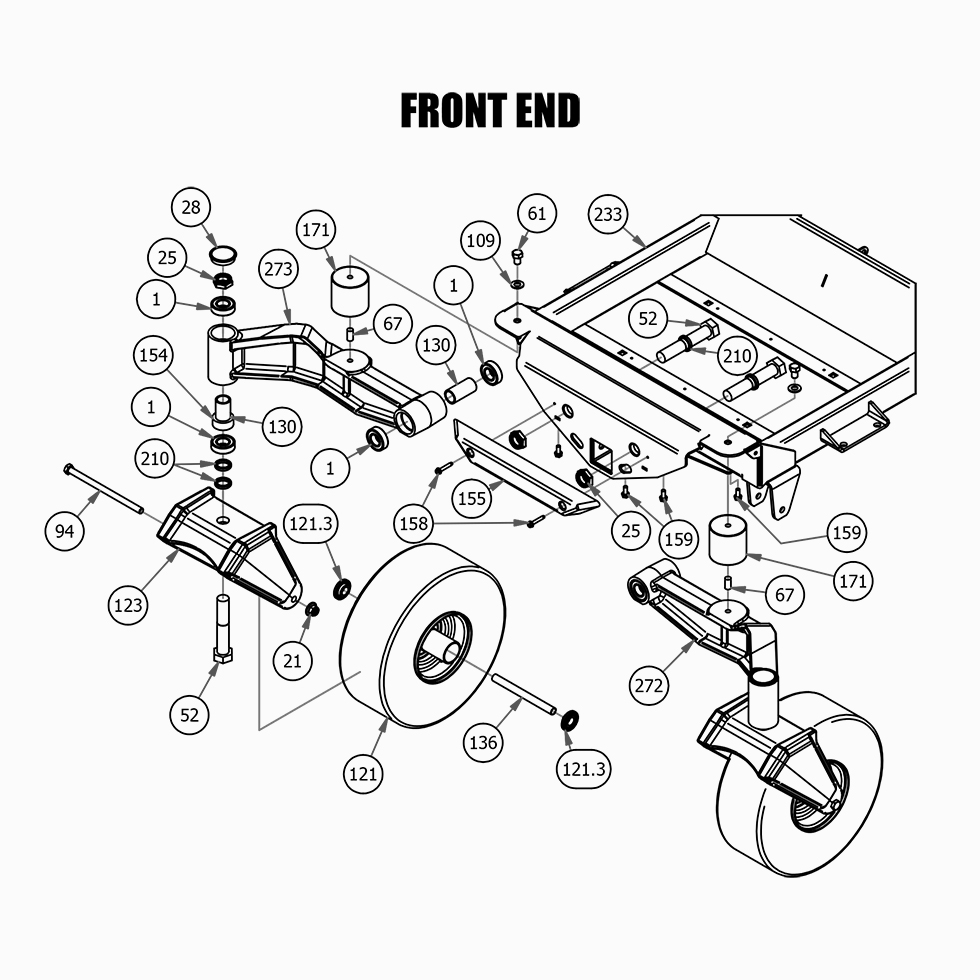

2021 Renegade - Diesel - Front End

2021 Renegade - Diesel - Front End

The 2021 Renegade - Diesel Front End is crucial for ensuring your mower's stability and handling. At BadBoyMowerParts.com, we carry a wide range of Bad Boy Mower Parts to maintain and repair the front end of your 2021 Renegade - Diesel. From axles to suspension components, our Bad Boy Mower Part diagrams make it easy to find the parts you need. Each of our Bad Boy Lawn Mower Parts is crafted for reliability, helping to keep your mower in optimal condition. Ordering Bad Boy Parts Online is straightforward, and with Free Shipping On Orders Over $100, you can save more while taking care of your mower's needs.

Bad Boy Mower Parts Lookup

2021 Renegade - Diesel - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
21 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
25 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
28 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
52 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
61 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
67 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
94 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
109 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
121.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
121.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
123 023-0004-20 023-0004-20 2021-2024 R Series Cast Front Fork
$179.99
130 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
136 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
154 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
155 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
158 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
159 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
171 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
210 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
233 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
272 250-0032-00 250-0032-00 - Left Front I-Beam 2019-2021 Renegade & Rogue
$248.99
273 250-0033-00 250-0033-00 - Right Front I-Beam 2019-2021 Renegade & Rogue
$320.99
