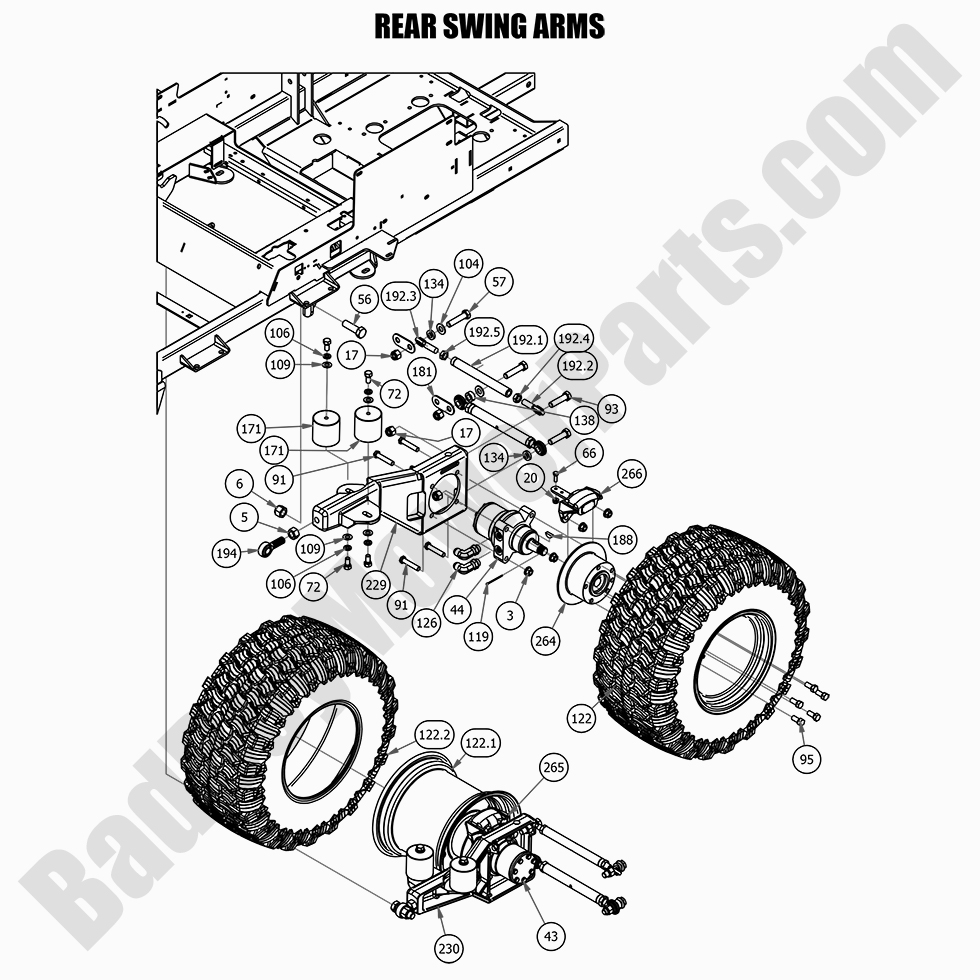

2021 Renegade - Diesel - Rear Swing Arm

2021 Renegade - Diesel - Rear Swing Arm

The 2021 Renegade - Diesel Rear Swing Arm plays an essential role in maintaining stability and performance. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts to replace or repair the rear swing arm on your 2021 Renegade - Diesel. Our Bad Boy Mower Part diagrams make it easy to find the right part for your mower’s suspension system. Designed for reliability, our Bad Boy Lawn Mower Parts will keep your mower performing smoothly. Shopping Bad Boy Parts Online is convenient and straightforward, and with Free Shipping On Orders Over $100, you can get your parts delivered to you quickly and cost-effectively.

Bad Boy Mower Parts Lookup

2021 Renegade - Diesel - Rear Swing Arm
  Position Number SKU Product Title Price
3 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
5 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
6 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
17 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
20 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
43 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
44 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
56 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
57 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
66 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
72 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
91 018-6041-00 018-6041-00 - 1/2-13 x 2.75 Gr.8 Hex Head Bolt
$2.99
93 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
95 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
104 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
106 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
109 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
119 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
122.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
122.1 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
122.2 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
122 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
126 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
134 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
138 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
171 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
181 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
188 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
192.0 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
192.1 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
192.2 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
192.3 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
192.4 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
192.5 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
194 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
229 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
230 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
264 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
265 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
266 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
