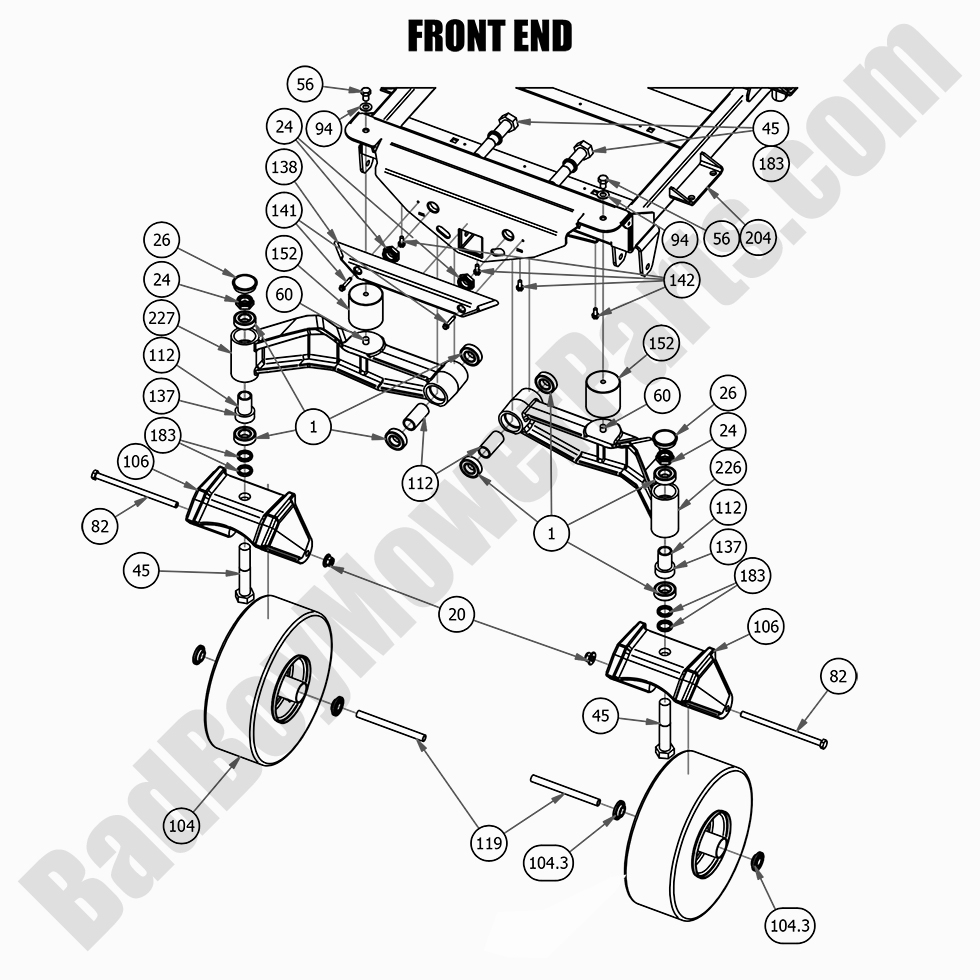

2021 Renegade - Gas - Front End

2021 Renegade - Gas - Front End

The 2021 Renegade - Gas Front End is a crucial component that contributes to the mower's overall performance and handling. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts designed specifically for the 2021 Renegade - Gas model. Whether you're replacing the front axle, spindles, or other front-end components, our Bad Boy Mower Part diagrams provide an easy guide to finding the right parts. Our Bad Boy Lawn Mower Parts are durable, ensuring your mower continues to perform at its best. You can conveniently shop Bad Boy Parts Online and enjoy Free Shipping On Orders Over $100, so you can keep your mower running smoothly without worrying about shipping fees.

Bad Boy Mower Parts Lookup

2021 Renegade - Gas - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
26 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
45 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
56 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
60 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
82 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
94 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
104.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
104.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
106 023-0004-20 023-0004-20 2021-2024 R Series Cast Front Fork
$179.99
112 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
119 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
137 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
138 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
141 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
142 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
152 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
183 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
204 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
226 250-0032-00 250-0032-00 - Left Front I-Beam 2019-2021 Renegade & Rogue
$248.99
227 250-0033-00 250-0033-00 - Right Front I-Beam 2019-2021 Renegade & Rogue
$320.99
