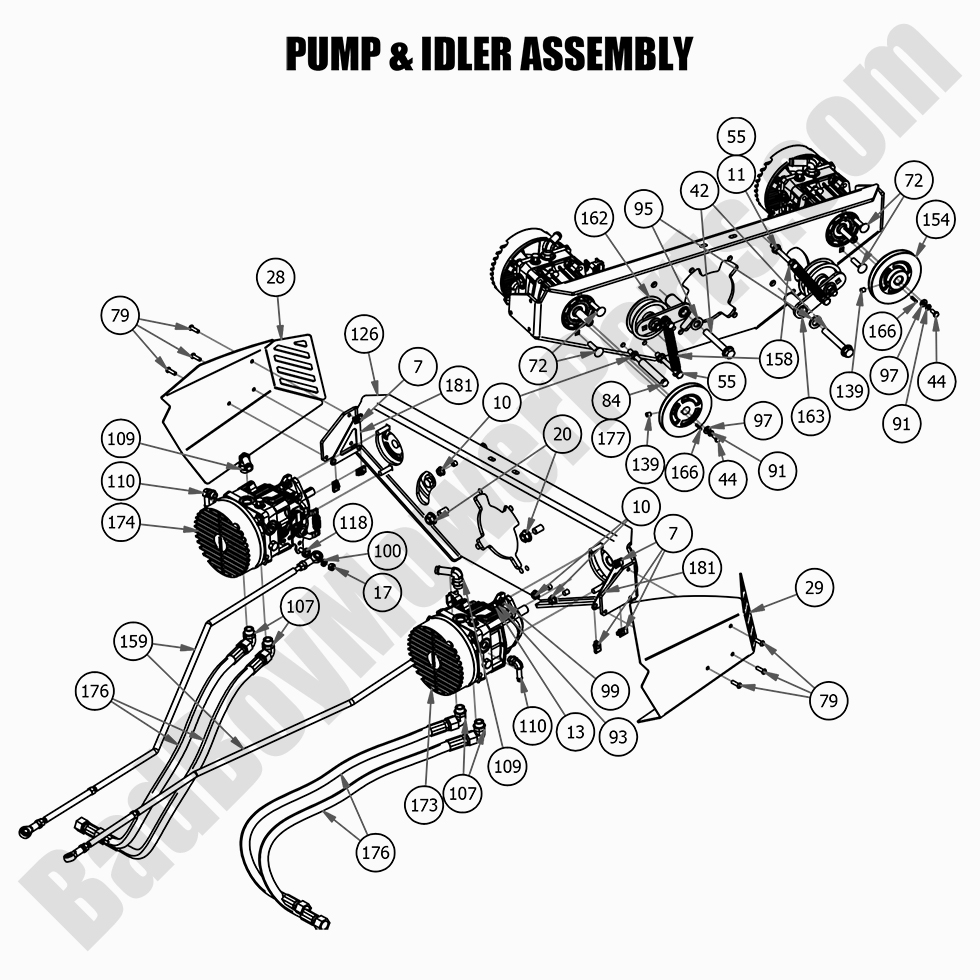

2021 Renegade - Gas - Pump & Idler Assembly

2021 Renegade - Gas - Pump & Idler Assembly

The 2021 Renegade - Gas Pump & Idler Assembly ensures smooth fuel delivery and system operation. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts for your 2021 Renegade - Gas mower, including fuel pump and idler components. Our Bad Boy Mower Part diagrams help you easily find the necessary parts, ensuring proper functionality. Our Bad Boy Lawn Mower Parts are built to meet or exceed original manufacturer specifications, providing long-lasting performance. When you order Bad Boy Parts Online, enjoy the convenience of shopping from home, with Free Shipping On Orders Over $100 on all eligible items.

Bad Boy Mower Parts Lookup

2021 Renegade - Gas - Pump & Idler Assembly
  Position Number SKU Product Title Price
7 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 014-5060-00 014-5060-00 - 2019-2021 Renegade Pump Cover-RH
$21.39
29 014-5061-00 014-5061-00 - 2019-2021 Renegade Pump Cover-LH
$32.09
42 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
44 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
55 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
72 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
79 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
84 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
91 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
93 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
95 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
97 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
99 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
100 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
107 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
109 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
110 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
118 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
126 026-8010-00 026-8010-00 - Pump Plate Horizontal Gas
$106.99
139 030-0075-00 030-0075-00 - 5/16-24 X 3/8 Set Screw
$2.99
154 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
158 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
159 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
162 039-6950-98 039-6950-98 - 2020-2025 Renegade Gas Belt Tensioner LH
$85.17
163 039-6950-99 039-6950-99 - 2020-2022 Renegade Gas Belt Tensioner RH
$85.17
166 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
173 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
174 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
176 051-6007-00 051-6007-00 - 2019-& Up Renegade Hydro Hose
$54.64
177 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
181 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
