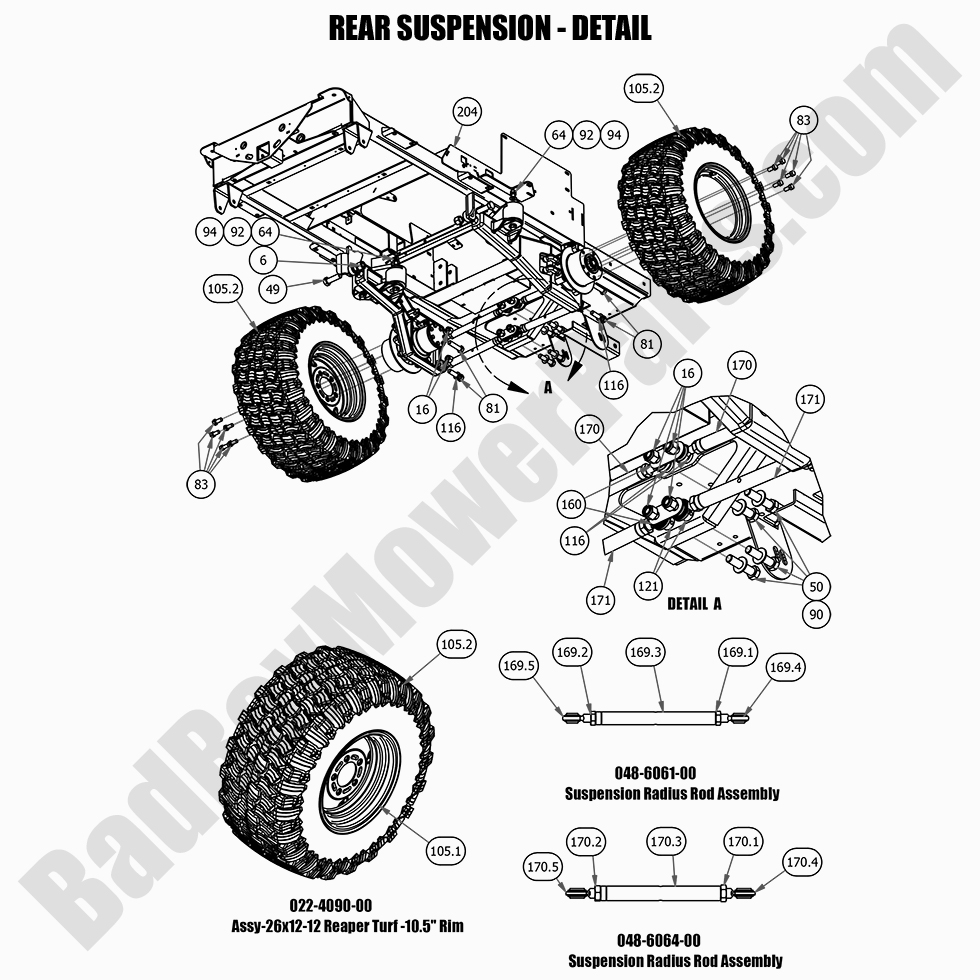

2021 Renegade - Gas - Rear Suspension Detail

2021 Renegade - Gas - Rear Suspension Detail

The 2021 Renegade - Gas Rear Suspension Detail provides you with a closer look at the key components that ensure a comfortable ride while maintaining stability on the job. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts for your 2021 Renegade - Gas mower. Our Bad Boy Mower Part diagrams simplify finding the right rear suspension parts for your mower. With our premium Bad Boy Lawn Mower Parts, you can trust that your mower’s rear suspension will deliver the performance you need. Plus, when you shop Bad Boy Parts Online, enjoy the added bonus of Free Shipping On Orders Over $100, keeping your mower in top shape at an affordable cost.

Bad Boy Mower Parts Lookup

2021 Renegade - Gas - Rear Suspension Detail
  Position Number SKU Product Title Price
6 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
16 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
49 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
50 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
64 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
81 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
83 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
90 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
92 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
94 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
105.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
105.1 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
105.2 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
116 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
121 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
160 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
169.0 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
169.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
169.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
169.3 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
169.4 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
169.5 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
170.0 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
204 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
