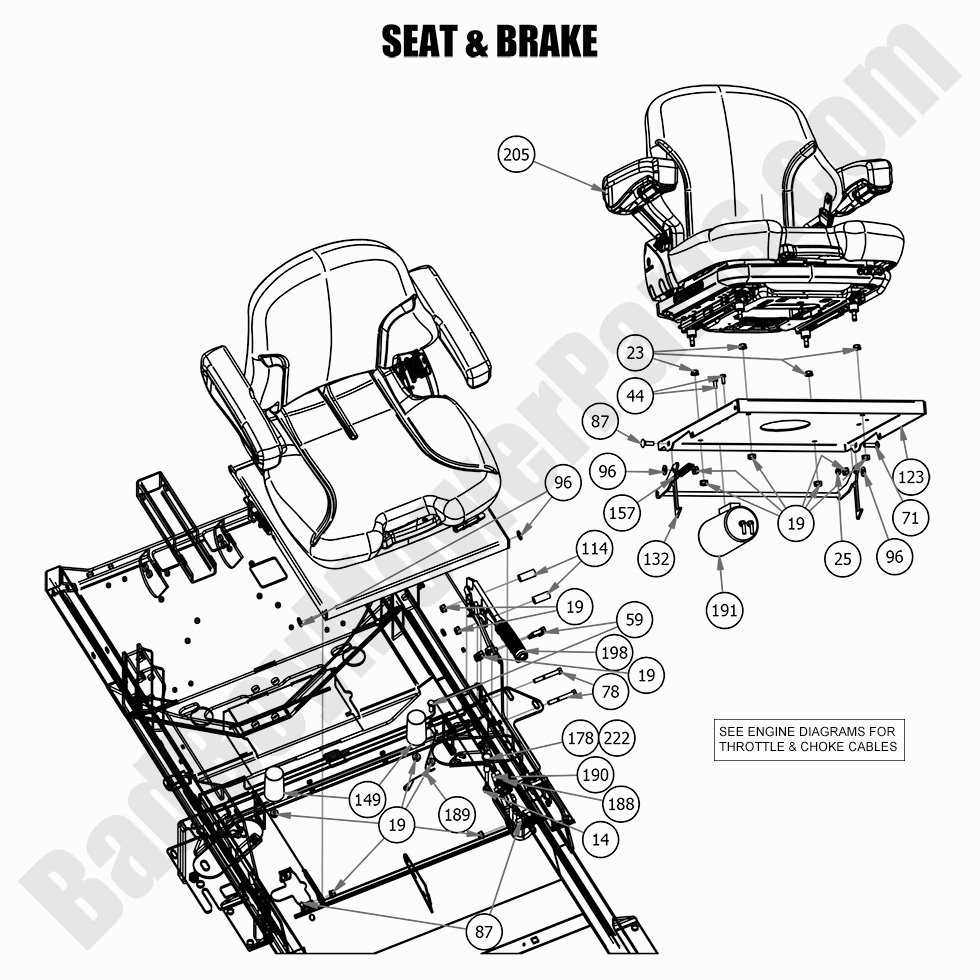

2021 Renegade - Gas - Seat & Brake

2021 Renegade - Gas - Seat & Brake

The 2021 Renegade - Gas Seat & Brake are critical for ensuring both comfort and safety while operating your mower. At BadBoyMowerParts.com, we stock a full range of Bad Boy Mower Parts designed to keep your seat and brake system in optimal condition. Our Bad Boy Mower Part diagrams will help you pinpoint the exact components you need for the 2021 Renegade - Gas. With high-quality Bad Boy Lawn Mower Parts, you’ll experience a smooth, secure ride every time. Plus, shopping Bad Boy Parts Online is convenient, and you’ll receive Free Shipping On Orders Over $100, making your purchase even more affordable.

Bad Boy Mower Parts Lookup

2021 Renegade - Gas - Seat & Brake
  Position Number SKU Product Title Price
14 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
44 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
59 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
71 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
78 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
87 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
96 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
114 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
123 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
132 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
149 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
157 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
188 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
189 064-8081-00 064-8081-00 - Seat Cable
$15.60
190 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
191 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
198 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
205 071-5065-00 071-5065-00 - 2019 - 2021 Seat with Seatbelt with ROPS (See Models Used On For Details)
$899.99
222 089-2000-00 089-2000-00 - Code Indicator Light-Yamaha
$21.39
