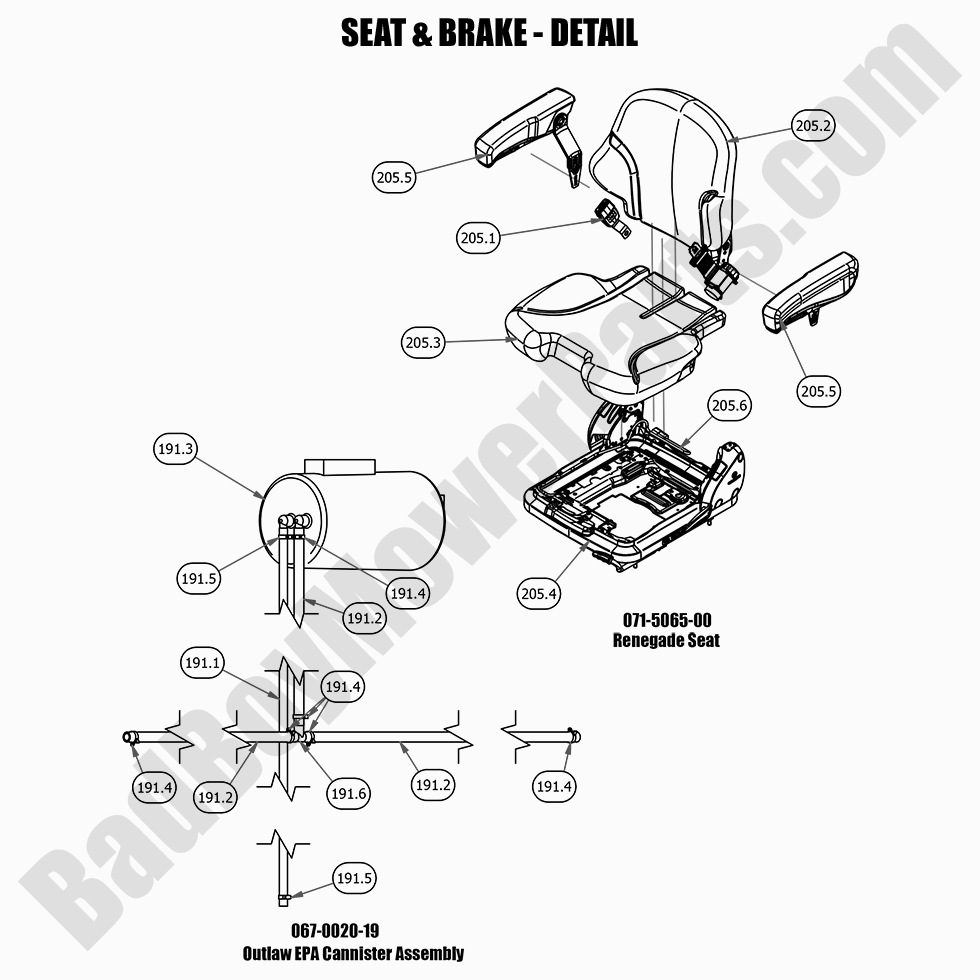

2021 Renegade - Gas - Seat & Brake Detail

2021 Renegade - Gas - Seat & Brake Detail

The 2021 Renegade - Gas Seat & Brake Detail focuses on the intricate elements that contribute to both comfort and safety during operation. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts to help you maintain your seat and brake system in top shape. Our Bad Boy Mower Part diagrams make it easy to locate and replace parts on your 2021 Renegade - Gas mower. With premium Bad Boy Lawn Mower Parts, you can rely on enhanced performance. Shopping Bad Boy Parts Online ensures quick and convenient access to all necessary components, and with Free Shipping On Orders Over $100, keeping your mower in great condition has never been more affordable.

Bad Boy Mower Parts Lookup

2021 Renegade - Gas - Seat & Brake Detail
  Position Number SKU Product Title Price
191.0 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
191.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
191.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
191.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
191.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
191.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
191.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
205.0 071-5065-00 071-5065-00 - 2019 - 2021 Seat with Seatbelt with ROPS (See Models Used On For Details)
$899.99
205.1 071-5065-02 071-5065-02 - Seatbelt for 2019-2021 Rebel & Renegade
$132.68
205.2 071-5065-03 071-5065-03 - Backrest Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$180.99
205.3 071-5065-04 071-5065-04 - Seat Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$191.99
205.4 071-5065-05 071-5065-05 - Seat Rail Kit fits the 071-5065-00 (See Models Used On For Details)
$85.17
205.5 071-5065-06 071-5065-06 - Armrest Kit fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$139.99
205.6 071-5065-07 071-5065-07 - Seat Switch fits the 071-5065-00 (See Models Used On For Details)
$42.58
