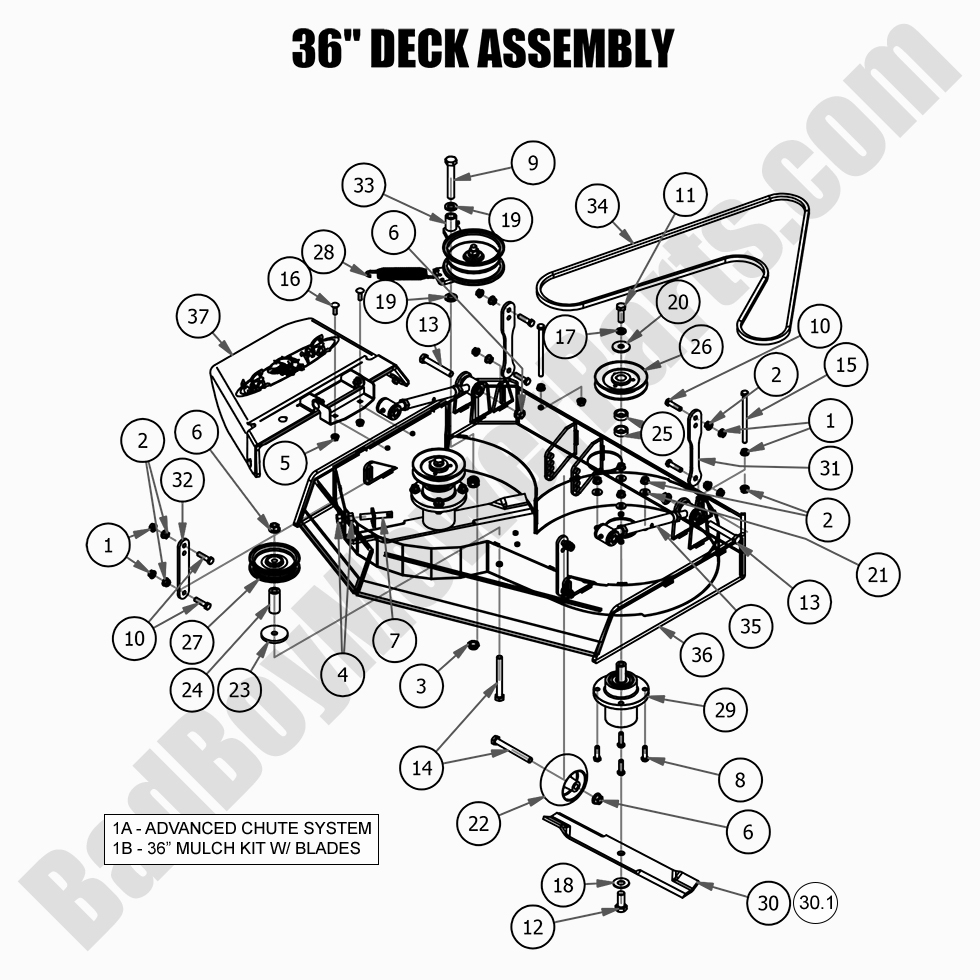

2021 Revolt - 36" Deck Assembly

2021 Revolt - 36" Deck Assembly

The 2021 Revolt 36" Deck Assembly is designed for precision cutting and long-lasting durability. If your mower deck needs repairs or replacement parts, BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts. We provide detailed Bad Boy Mower Part diagrams to guide you in selecting the correct parts for your deck. With our premium Bad Boy Lawn Mower Parts, you can expect reliable performance and easy maintenance. Ordering Bad Boy Parts Online is simple, and you’ll receive Free Shipping On Orders Over $100, making it easy to keep your mower in top shape.

Bad Boy Mower Parts Lookup

2021 Revolt - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6036-00 088-6036-00 - Advanced Chute System for the Revolt with 36" Decks
$249.00
1B 210-0136-50 210-0136-50 - 36" Mulch Kit w/Wavy Blades Revolt
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
8 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
11 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
12 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
13 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
14 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
15 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
16 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
17 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
18 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
19 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
20 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
21 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
22 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
23 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
24 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
25 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59
26 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
27 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
28 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
29 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
30.1 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
30 038-3010-00 038-3010-00 - 36 & 52" High Lift Fusion Blade
$22.99
31 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
32 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
33 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
34 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
35 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
36 060-1136-20 060-1136-20 - 2020 Stand On 36" Sloped Deck
$599.99
37 210-6016-98 210-6016-98 - 36" Stand On Chute Assembly
$145.95
