2021 Revolt - 48" Deck Assembly

2021 Revolt - 48" Deck Assembly

For those needing a durable and efficient cutting deck for their 2021 Revolt, the 48" Deck Assembly is the ideal choice. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts specifically designed for this model. Our comprehensive Bad Boy Mower Part diagrams make it easy to identify the exact components required for maintenance or replacement. Whether you're upgrading or replacing parts, we carry a vast inventory of Bad Boy Lawn Mower Parts to suit your needs. When you shop Bad Boy Parts Online, you benefit from the convenience of home delivery and Free Shipping On Orders Over $100, making it easier than ever to keep your mower in excellent condition.

Bad Boy Mower Parts Lookup

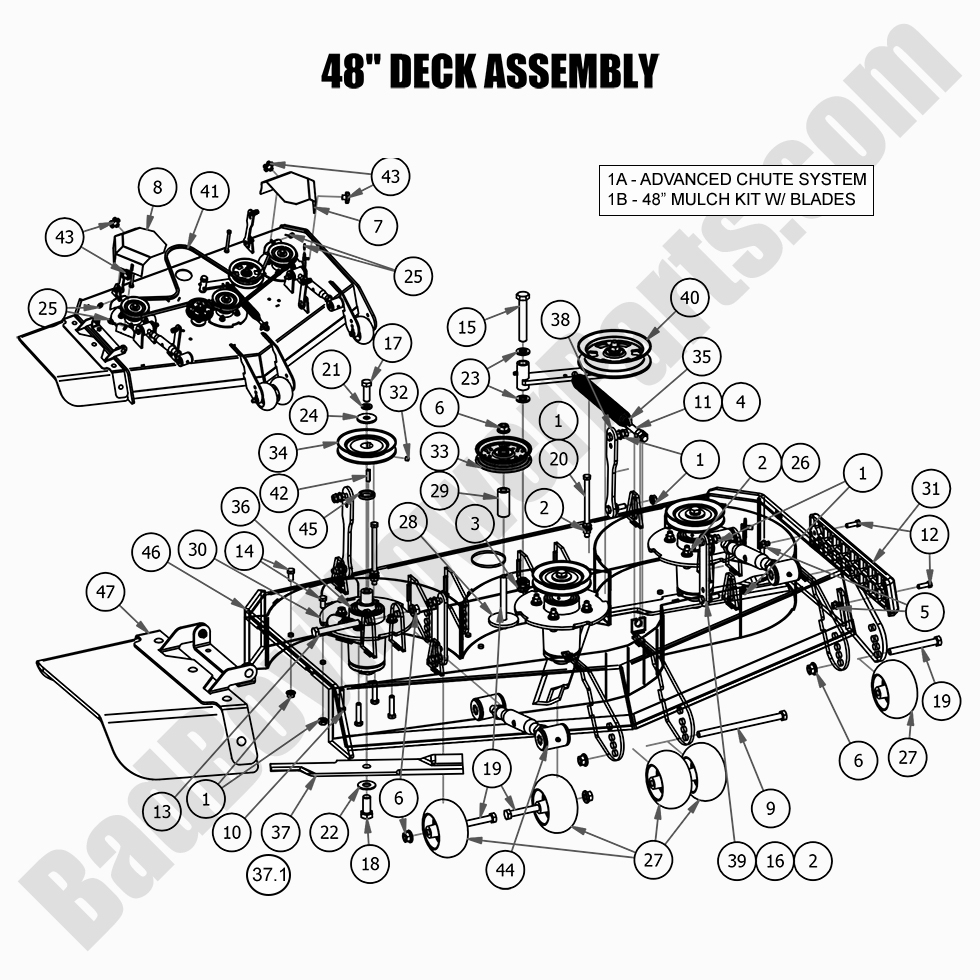

2021 Revolt - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0349-00 210-0349-00 - Revolt 48" Mulch Kit w/Blades
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-4813-00 014-4813-00 - 48" Trim Side Pulley Cover
$26.74
8 014-4814-00 014-4814-00 - 48" Discharge Side Pulley Cover
$25.88
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
26 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
27 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
28 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
29 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
30 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
31 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
32 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
33 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
34 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
35 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
36 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
37.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
37 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
38 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
39 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
40 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
41 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
42 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
43 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
44 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
45 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
46 060-1148-19 060-1148-19 - 2019-2022 Revolt 48" Sloped Deck Welded Assembly
$799.99
47 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
