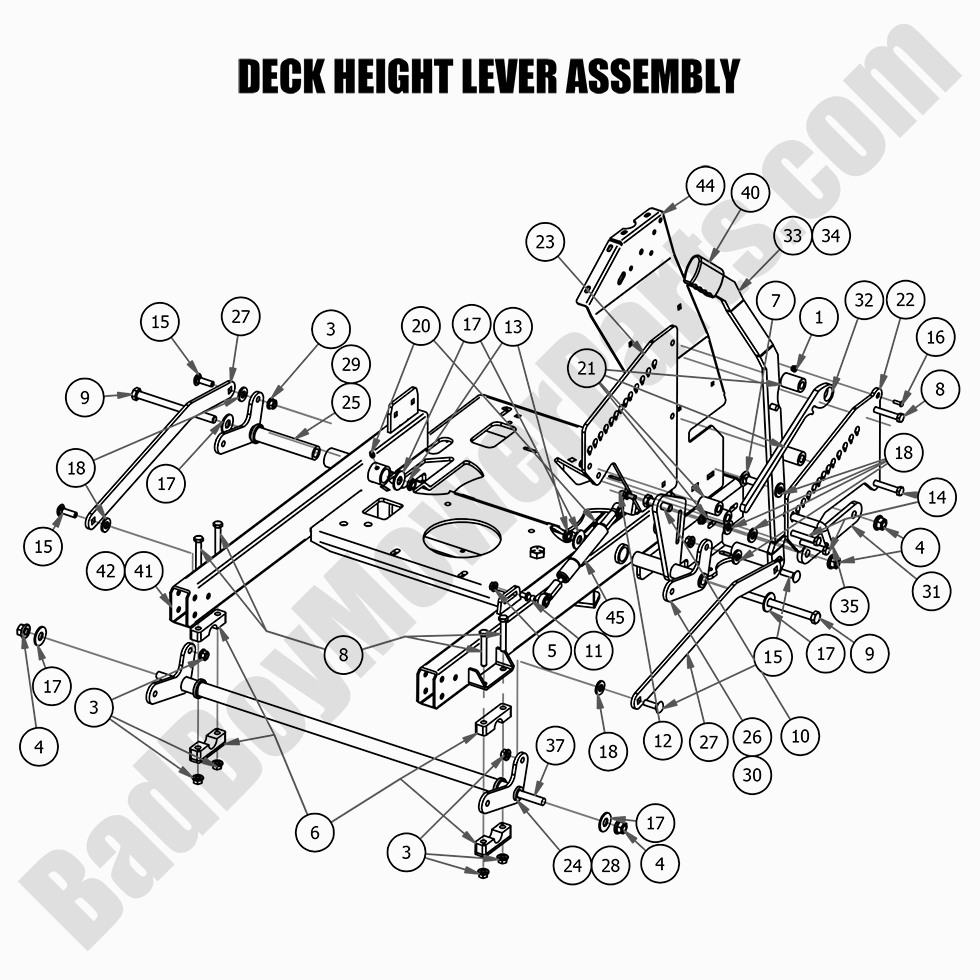

2021 Revolt - Deck Height Lever Assembly

2021 Revolt - Deck Height Lever Assembly

The Deck Height Lever Assembly for the 2021 Revolt is crucial for adjusting the cutting height of your mower. This component ensures that your mower provides an even and consistent cut. At BadBoyMowerParts.com, we offer durable Bad Boy Mower Parts designed to fit your 2021 Revolt. Our Bad Boy Mower Part diagrams make it easy to identify and order the exact parts needed for repairs or maintenance. If you’re looking for Bad Boy Lawn Mower Parts to upgrade or replace your deck height lever, we have everything you need. Plus, with Free Shipping On Orders Over $100 when you shop Bad Boy Parts Online, you can save both time and money.

Bad Boy Mower Parts Lookup

2021 Revolt - Deck Height Lever Assembly
  Position Number SKU Product Title Price
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
7 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
8 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
9 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
10 018-0102-00 018-0102-00 - 1/2-13 x 1 3/4 GR5 Hex Bolt No Longer Available
Obsolete.
11 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
12 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
13 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
14 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
17 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
18 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
20 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
21 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
22 026-0082-00 026-0082-00 - Outer Adjustment Plate
$32.09
24 028-0028-00 028-0028-00 - Front Actuator Bar Weldment 2019-2022 Revolt
$35.30
25 028-0029-00 028-0029-00 - Rear Actuator Bar 2019-2022 Revolt
$102.16
27 028-0033-00 028-0033-00 - Actuator Linkage 2019-2022 Revolt
$10.21
28 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89
30 028-0038-00 028-0038-00 - Revolt Rear Actuator Bar Weldment-LH No Longer Available
Obsolete.
31 028-5001-00 028-5001-00 - Lever Secondary Linkage-Black
$12.83
32 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
33 031-7146-00 031-7146-00 - Deck Lift Lever Welded Assembly 2019-2022 Revolt
$99.32

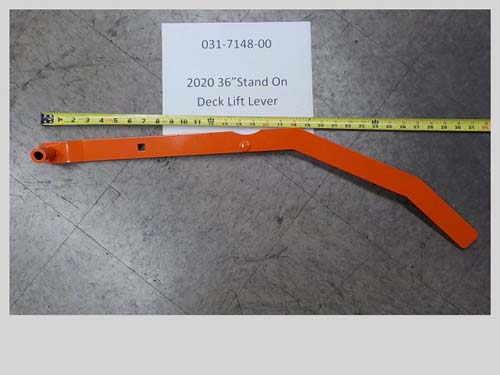

34 031-7148-00 031-7148-00 - 2020-2022 36" Revolt Deck Lift Lever
$74.85
35 040-4001-00 040-4001-00 - Pin and Lanyard 1/2 x 2 (See Models Used On For Details)
$14.19
37 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79
40 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
44 079-4111-00 079-4111-00 - LH Podium Panel 2019-2022 Revolt
$37.44
45 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
