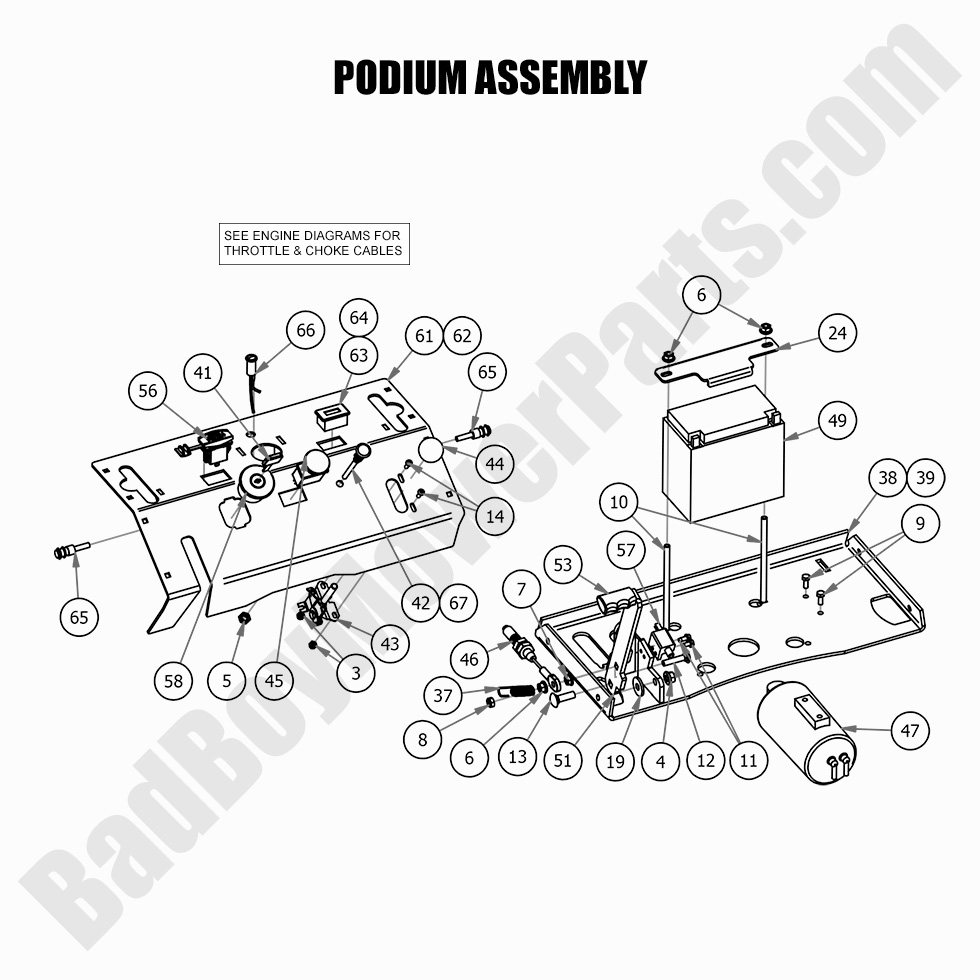

2021 Revolt - Podium Assembly

2021 Revolt - Podium Assembly

The Podium Assembly is a key component of the 2021 Revolt mower that supports the control panel, seat, and other essential functions. Whether you’re replacing a damaged podium or upgrading for enhanced durability, BadBoyMowerParts.com offers high-quality Bad Boy Mower Parts for the 2021 Revolt. Our Bad Boy Mower Part diagrams make it simple to locate the exact podium parts you need. With a comprehensive range of Bad Boy Lawn Mower Parts, we ensure that your mower remains in top working condition. Enjoy Free Shipping On Orders Over $100 when you order Bad Boy Parts Online, so you can get the parts you need without worrying about extra shipping fees.

Bad Boy Mower Parts Lookup

2021 Revolt - Podium Assembly
  Position Number SKU Product Title Price
3 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
8 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
9 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
10 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
11 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
12 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
13 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
14 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
19 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
24 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
37 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
38 039-0087-00 039-0087-00 - Console Bracket Weldment 2019-2022 Revolt
$21.39
39 039-0154-00 039-0154-00 - 36" Console Bracket Weldment No Longer Available
Obsolete.
41 042-9000-00 042-9000-00 - Ignition Key
$4.06
43 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
44 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
45 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
46 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
47 067-0020-18 067-0020-18 - Revolt EPA Canister- Assy
$85.59
51 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
53 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
56 077-2076-00 077-2076-00 - USB Port
$46.84
57 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
58 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
61 079-4112-00 079-4112-00 - 2019-2022 Revolt Podium Front Panel Weldment
$48.14
62 079-4113-00 079-4113-00 - 36" Podium Front Panel Weldment
$106.99
63 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
64 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
65 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
66 089-1000-00 089-1000-00 - Oil Light
$12.63
67 089-2000-00 089-2000-00 - Code Indicator Light-Yamaha
$21.39
