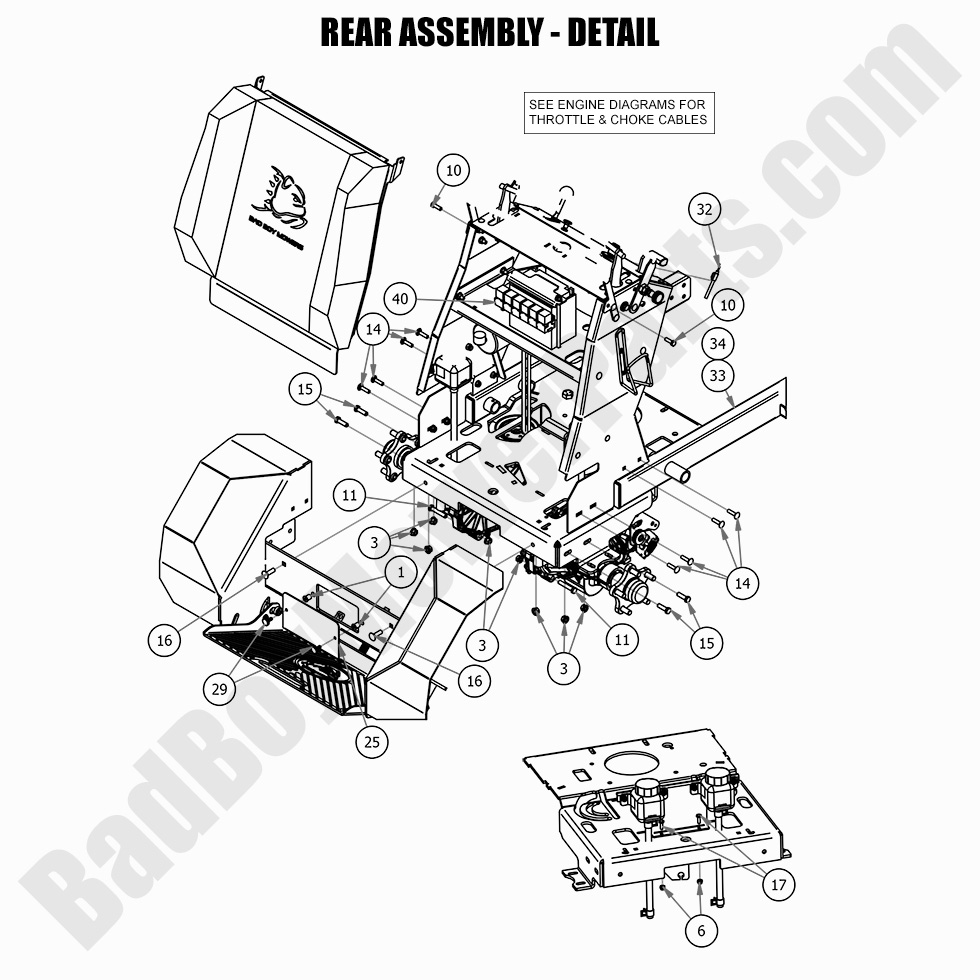

2021 Revolt - Rear Assembly Detail

2021 Revolt - Rear Assembly Detail

The Rear Assembly Detail of the 2021 Revolt provides a deeper dive into the rear structure of the mower, from the frame components to the wheel and axle parts. Maintaining this assembly is critical to ensuring stability and smooth operation. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts to meet your needs for rear assembly maintenance. Our Bad Boy Mower Part diagrams will help you identify the specific parts required for repairs or upgrades. We stock everything from wheel assemblies to frame reinforcements, offering a comprehensive selection of Bad Boy Lawn Mower Parts. Shopping Bad Boy Parts Online also means you can enjoy Free Shipping On Orders Over $100, providing you with both savings and convenience.

Bad Boy Mower Parts Lookup

2021 Revolt - Rear Assembly Detail
  Position Number SKU Product Title Price
1 013-0057-00 013-0057-00 - Wellnut 1/4-20 x 5/8
$4.39
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
6 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
14 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
17 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
25 026-0063-00 026-0063-00 - 2019-2022 Revolt Access Panel Plate
$35.48
29 030-0015-00 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw
$16.04
40 086-0091-00 086-0091-00 - 2019 - 2025 Revolt Wiring Harness
$363.44
