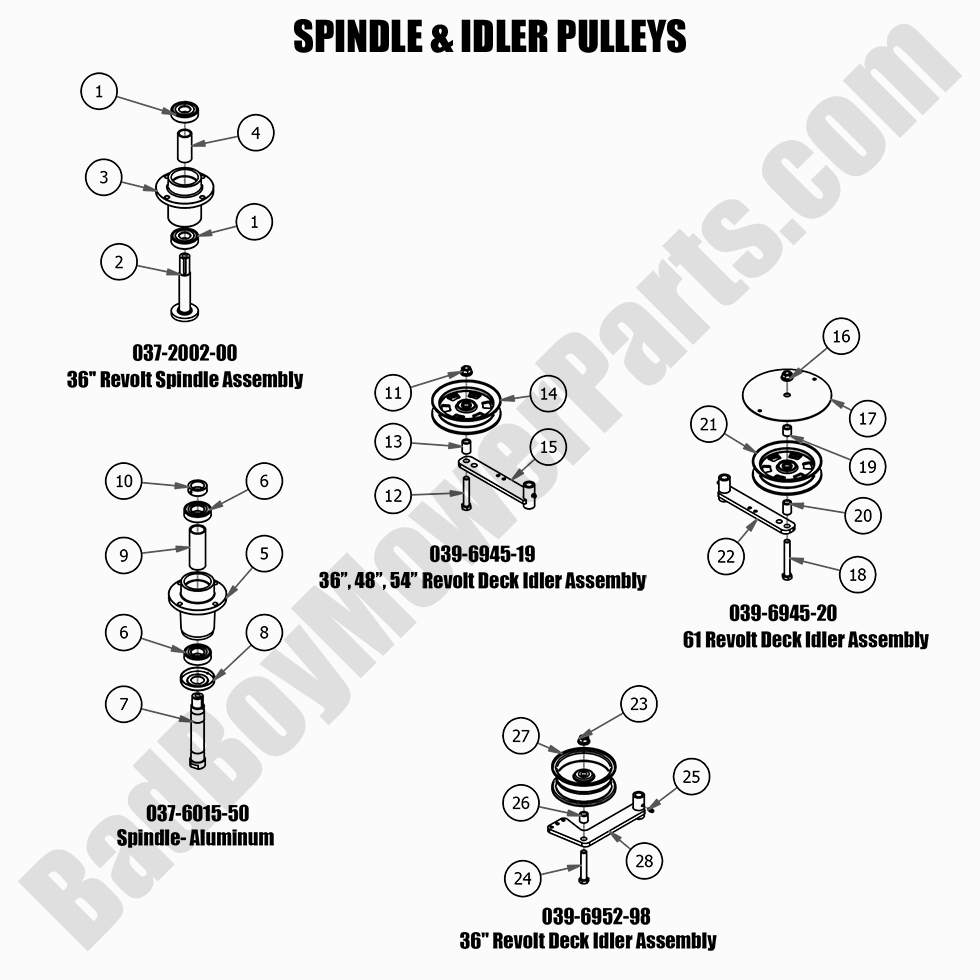

2021 Revolt - Spindle & Idler Pulleys

2021 Revolt - Spindle & Idler Pulleys

The Spindle & Idler Pulleys are vital components in maintaining the performance and efficiency of the 2021 Revolt mower’s deck. These parts ensure smooth movement and rotation of the mower’s blades. If you’re looking to replace or service these parts, BadBoyMowerParts.com has you covered. We provide a wide selection of Bad Boy Mower Parts, including Spindle & Idler Pulleys, all designed to fit your 2021 Revolt perfectly. Our Bad Boy Mower Part diagrams make it easy to find the exact parts you need for repairs. With a large inventory of Bad Boy Lawn Mower Parts, you’ll find everything necessary to restore your mower to peak performance. Enjoy the added bonus of Free Shipping On Orders Over $100 when you shop Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

2021 Revolt - Spindle & Idler Pulleys
  Position Number SKU Product Title Price
1.0 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35

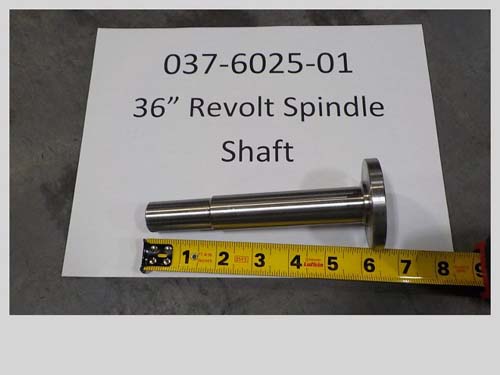

2 037-6025-01 037-6025-01 - 36" Revolt Spindle Shaft
$72.75
3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
5.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
5 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
6 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
7 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
8 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
9 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
10 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
11.0 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
13 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
14 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
17 014-4005-00 014-4005-00 - 61" Revolt Idler Pulley Cover
$21.39
18 018-0051-00 018-0051-00 - 1/2-13 X 3.75 Hex Bolt-
$2.99
19 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
23.0 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
25 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
27 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
28 039-6952-00 039-6952-00 - Deck Idler Arm
$10.99
