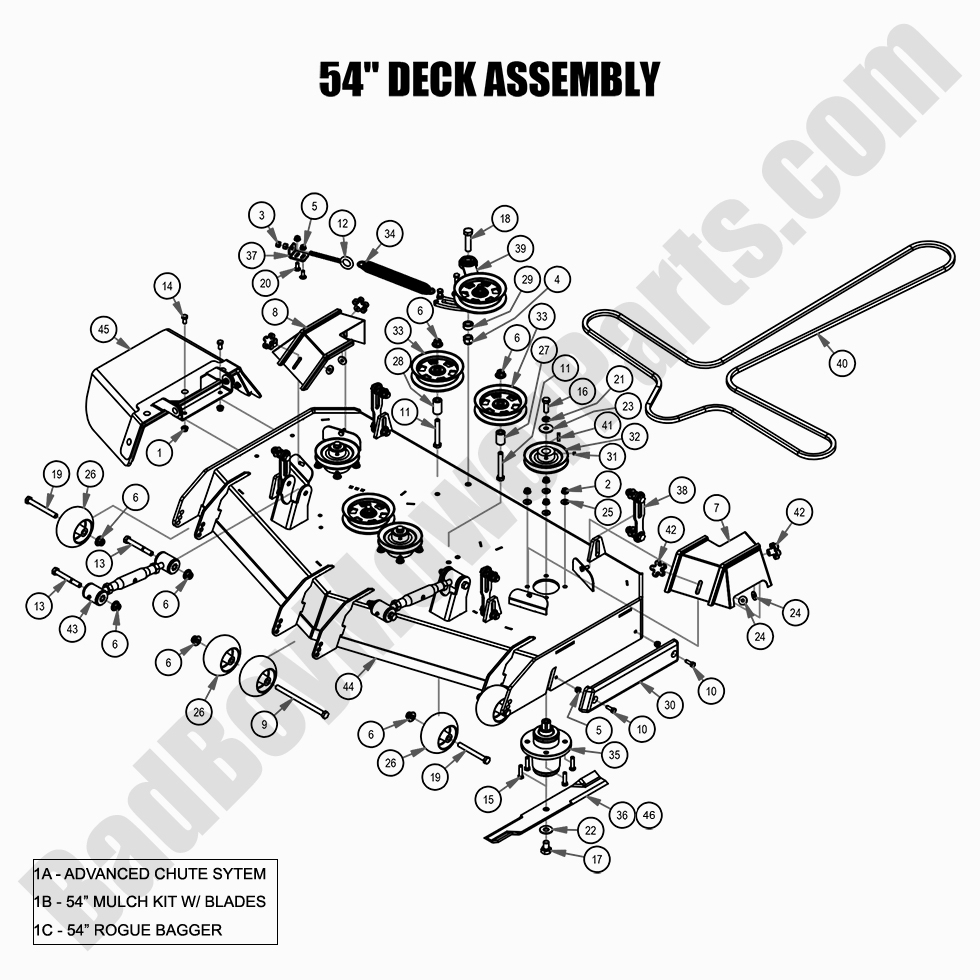

2021 Rogue - 54" Deck Assembly

2021 Rogue - 54" Deck Assembly

The 54" Deck Assembly for the 2021 Rogue is designed for durability and efficient grass cutting. If you need to replace the deck or any of its components, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts that are specifically designed to fit your mower. From the deck shell to the pulleys and blades, we have everything to keep your deck in optimal condition. With the help of our Bad Boy Mower Part diagrams, finding the right parts is easy and efficient. Shop for Bad Boy Lawn Mower Parts today and take advantage of Free Shipping On Orders Over $100 when you purchase Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

2021 Rogue - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
8 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
30 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
31 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
32 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
35 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
36 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
37 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
38 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
39 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
40 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
41 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
42 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
43 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
44 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
45 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
46 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
