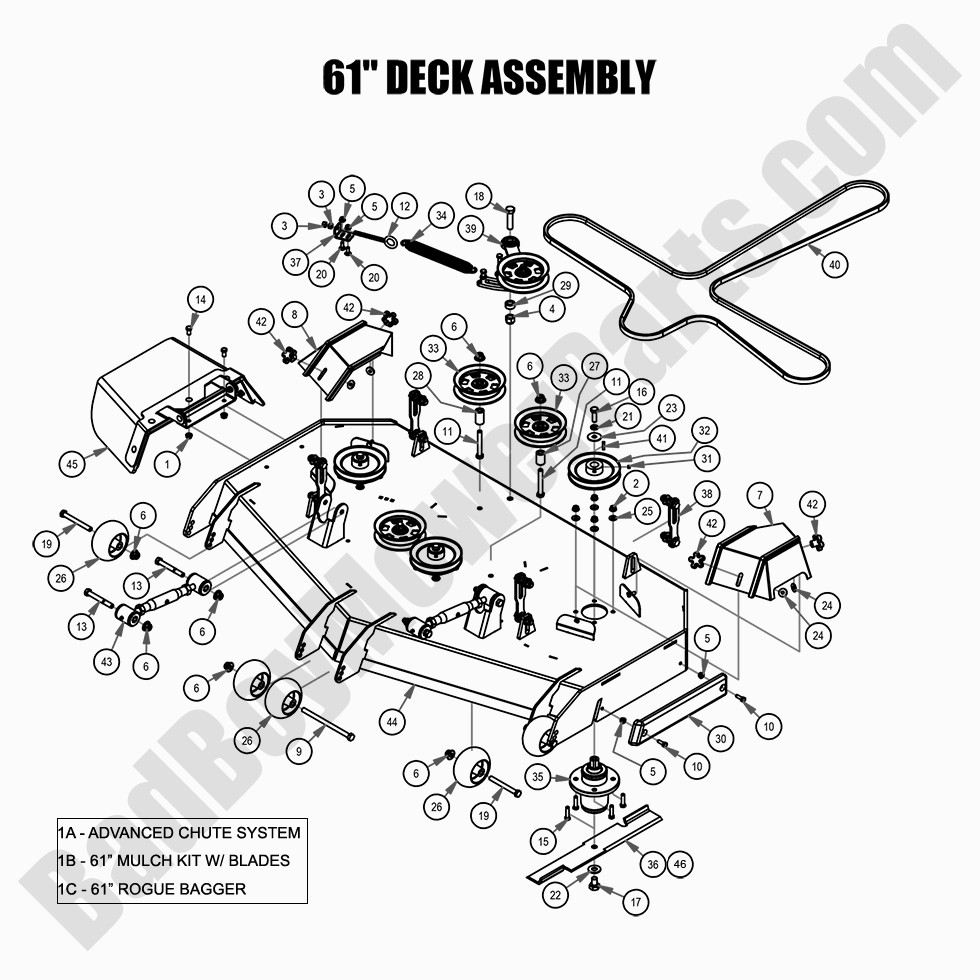

2021 Rogue - 61" Deck Assembly

2021 Rogue - 61" Deck Assembly

The 61" Deck Assembly for the 2021 Rogue provides a large cutting area, perfect for homeowners or landscapers who need to cover more ground in less time. If you're in need of a replacement or parts for your deck, BadBoyMowerParts.com has a comprehensive selection of Bad Boy Mower Parts to fit the 61" deck. Whether you need blades, spindles, or belts, we have all the parts to keep your mower cutting like new. Our Bad Boy Mower Part diagrams help you find the exact part needed for repairs or upgrades. Don’t forget to enjoy Free Shipping On Orders Over $100 when purchasing Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

2021 Rogue - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
8 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
30 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
31 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
32 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
35 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
36 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
37 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
38 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
39 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
40 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Decks (See Models Used On For Details)
$96.29
41 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
42 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
43 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
44 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
45 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
46 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
