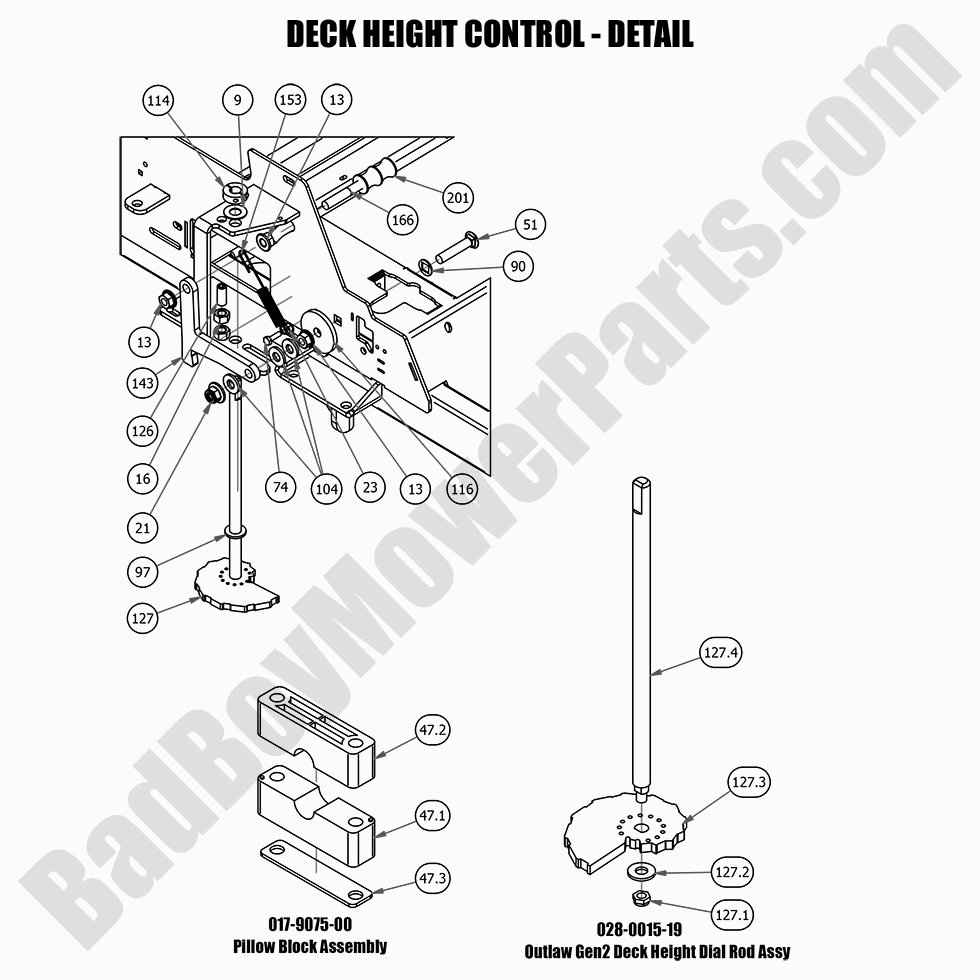

2021 Rogue - Deck Height Control - Detail

2021 Rogue - Deck Height Control - Detail

The Deck Height Control - Detail for the 2021 Rogue offers an in-depth look at the parts and mechanics behind the deck height adjustment system. If you’re looking to replace or upgrade components of the deck height control system, BadBoyMowerParts.com provides the right Bad Boy Mower Parts. We offer everything from the deck height control lever to cables and related components, ensuring a smooth and precise adjustment for your mower. With the help of our Bad Boy Mower Part diagrams, you’ll easily find the parts you need for this vital function. We stock a wide variety of Bad Boy Lawn Mower Parts that fit your 2021 Rogue perfectly. Take advantage of Free Shipping On Orders Over $100 when you shop Bad Boy Parts Online, so you can maintain your mower at a low cost.

Bad Boy Mower Parts Lookup

2021 Rogue - Deck Height Control - Detail
  Position Number SKU Product Title Price
9 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
13 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
16 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
47.0 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
47.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
47.2 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
47.3 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
51 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
74 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
90 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
97 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
104 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
114 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
116 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
126 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
127.0 028-0015-19 028-0015-19 - Deck Height Dial Rod Assembly 2019-2024 Rebel, Renegade & Rogue
$42.79
127.1 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
127.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
127.3 026-1101-00 026-1101-00 - Deck Height Cam
$15.55
127.4 028-0015-00 028-0015-00 - "R" Series Dial Rod 2019-2022 Rebel, Renegade & Rogue
$17.64
143 031-0125-00 031-0125-00 - Deck Travel Lock Lever 2019-2022 Rebel, Renegade & Rogue
$28.39
153 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
166 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
201 069-4011-00 069-4011-00 - Travel Lock Rubber Grip
$8.79
