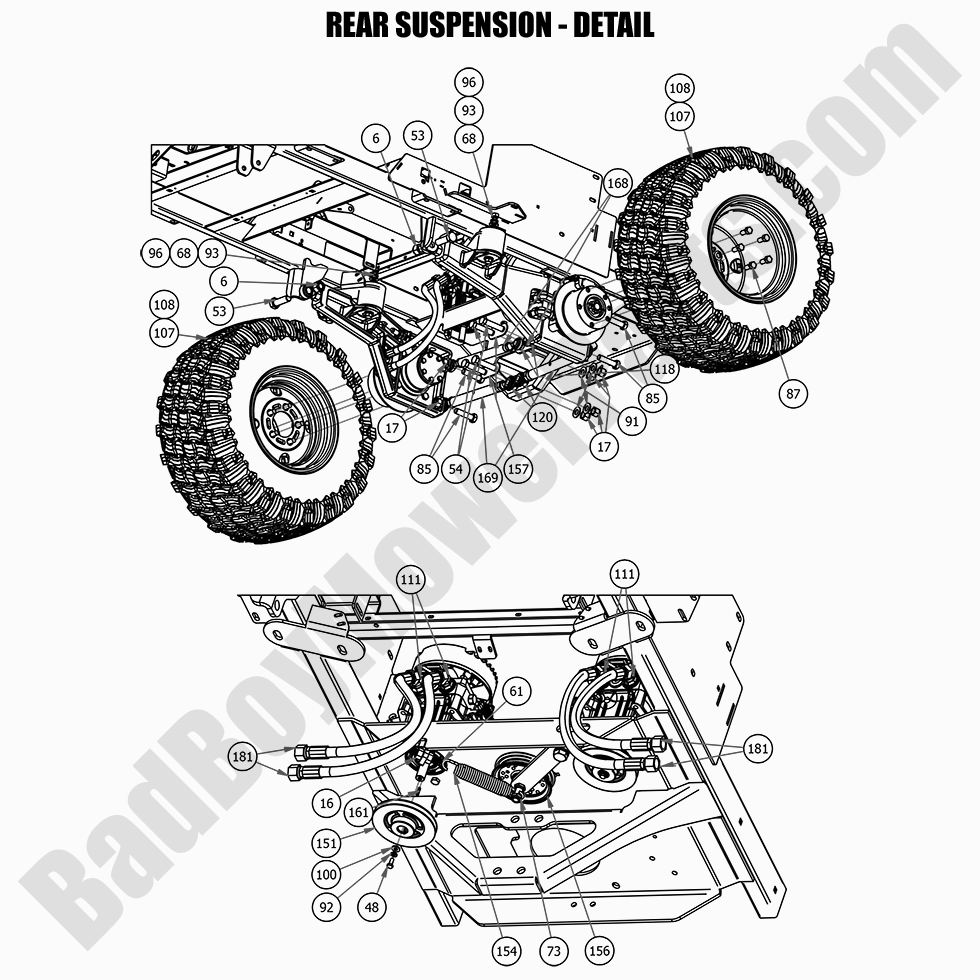

2021 Rogue - Rear Suspension - Detail

2021 Rogue - Rear Suspension - Detail

The Rear Suspension - Detail for the 2021 Rogue provides in-depth insights into the parts and components that ensure a smooth mowing experience. If you're looking to replace worn-out suspension components, BadBoyMowerParts.com has a comprehensive selection of Bad Boy Mower Parts. Our collection includes rear shocks, springs, and all the necessary attachments for your mower’s rear suspension system. With detailed Bad Boy Mower Part diagrams available, you can easily find the parts you need. Browse our extensive inventory of Bad Boy Lawn Mower Parts and take advantage of Free Shipping On Orders Over $100 when you purchase Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

2021 Rogue - Rear Suspension - Detail
  Position Number SKU Product Title Price
6 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
16 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
17 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
48 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
53 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
54 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
61 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
68 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
73 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
85 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
87 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
91 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
92 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
93 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
96 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
100 025-0034-00 025-0034-00 - Rogue Pump Washer
$4.39
107 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
108 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
111 024-2051-00 024-2051-00 - 2019-2025 Rogue 45 Degree Pump Fitting # 6802-10-08
$14.04
118 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
120 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
151 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
154 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
156 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
157 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
161 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
168 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
169 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
181 051-6006-00 051-6006-00 - 20" Hydraulic Hose (See Models Used On For Detail)
$46.84
