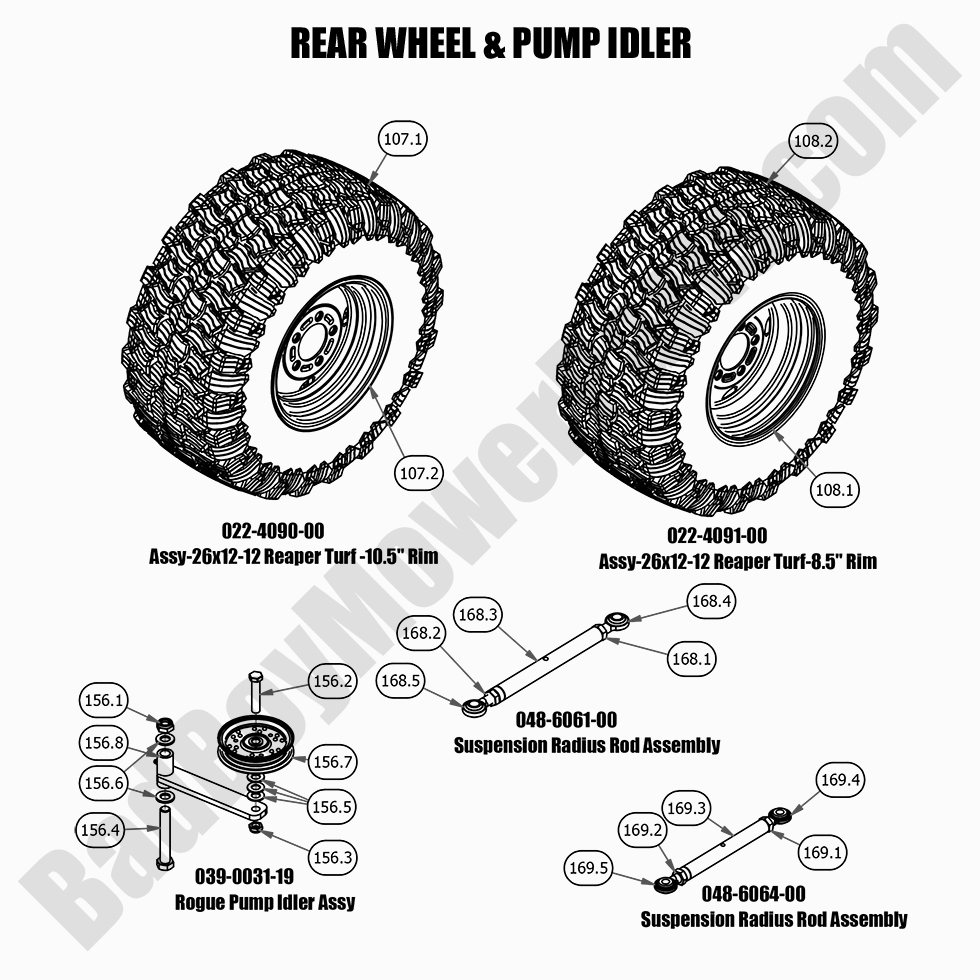

2021 Rogue - Rear Wheel & Pump Idler

2021 Rogue - Rear Wheel & Pump Idler

The Rear Wheel and Pump Idler components in the 2021 Rogue are essential for optimal maneuverability and overall performance. If you need replacements, BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts to ensure your mower functions at its best. We provide quality parts for the rear wheel assembly and pump idlers, helping you maintain your mower’s stability and smooth operation. Check out our detailed Bad Boy Mower Part diagrams to quickly find the right components for your machine. Shop for Bad Boy Lawn Mower Parts and enjoy Free Shipping On Orders Over $100 when you buy Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

2021 Rogue - Rear Wheel & Pump Idler
  Position Number SKU Product Title Price
18.5 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
107.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
107.1 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
107.2 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
108.0 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
108.1 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
156.0 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
156.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
156.2 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
156.3 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
156.4 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
156.5 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
156.6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
156.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
156.8 039-0031-00 039-0031-00 - Idler Arm (See Models Used On For Details)
$27.06
168.0 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
168.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
168.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
168.3 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
168.4 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
169.0 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
169.2 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
169.3 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
169.4 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
169.5 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
