2021 Rogue - Seat  - Detail

2021 Rogue - Seat - Detail

The Seat - Detail for the 2021 Rogue ensures that your mower is comfortable and functional, allowing you to mow for extended periods without discomfort. If your seat is worn or damaged, BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts to replace it. From seat pans and cushions to hardware and suspension parts, we have everything to restore comfort and functionality to your mower. Use our Bad Boy Mower Part diagrams to find exactly what you need. Shop our extensive selection of Bad Boy Lawn Mower Parts and enjoy Free Shipping On Orders Over $100 when you purchase Bad Boy Parts Online.

Bad Boy Mower Parts Lookup

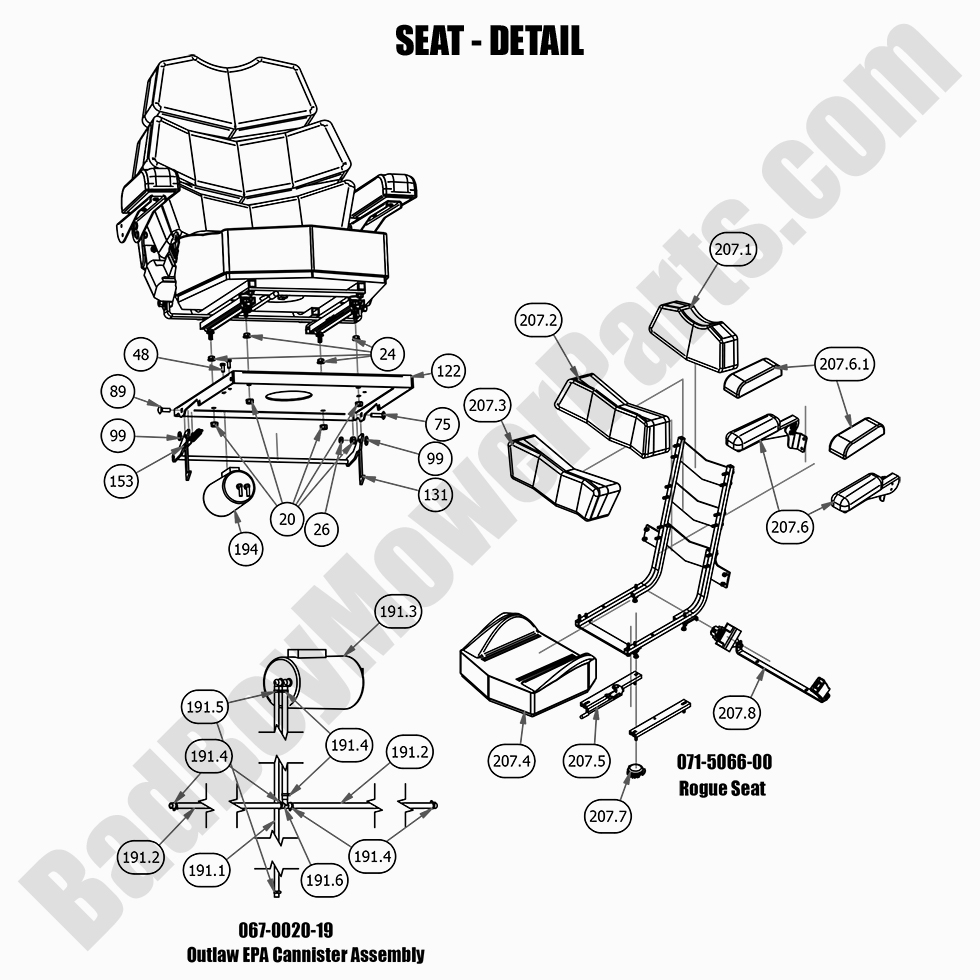

2021 Rogue - Seat  - Detail
  Position Number SKU Product Title Price
20 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
48 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
75 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
89 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
99 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
122 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
131 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
153 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
191.0 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
191.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
191.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
191.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
191.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
191.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
191.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
207.0 071-5066-00 071-5066-00 - 2019-2021 Rogue Seat
$729.99
207.1 071-5085-00 071-5085-00 - Back Pad #1 for 071-5066-00 (See Models Used On For Details)
$223.99
207.2 071-5086-00 071-5086-00 - Back Pad # 2 for 071-5066-00
$223.99
207.3 071-5087-00 071-5087-00 - Back Pad # 3 for 071-5066-00
$232.99
207.4 071-5088-00 071-5088-00 - Seat Pad Assembly for 071-5066-00
$245.99
207.5 071-5015-00 071-5015-00 - Seat Rails
$93.69
207.6.1 071-5062-00 071-5062-00 - Pair of Arm Pads for the 071-5060-00 2015 Outlaw Seat
$79.58
207.6 071-5071-00 071-5071-00 - Arm Rest Kit for 071-5066-00 (See Models Used On For Details)
$197.99
207.7 071-8062-00 071-8062-00 - Seat Switch
$21.06
207.8 071-5072-00 071-5072-00 - Seat Belt for 071-5066-00
$132.69
