2021 Walk Behind - 54" Deck Assembly

2021 Walk Behind - 54" Deck Assembly

For larger areas that need quick, precise mowing, the 2021 Walk Behind 54" Deck Assembly is the perfect solution. At BadBoyMowerParts.com, we offer a wide selection of parts for this deck assembly to ensure your mower operates at peak performance. From spindles to deck idlers, all the necessary components are available, and our Bad Boy Mower Part diagrams make it easy to identify the exact pieces you need. As a trusted source for Bad Boy Mower Parts, we guarantee top-quality replacements for your Bad Boy Lawn Mower Parts. Additionally, when you shop Bad Boy Parts Online, you can take advantage of Free Shipping On Orders Over $100, making it convenient and cost-effective to maintain your mower.

Bad Boy Mower Parts Lookup

2021 Walk Behind - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
27 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
35 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
37 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
45 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
46 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
48 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
49 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
50 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
53 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
58 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
59 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
60 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
61 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
62 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
64 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
69 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
82 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
83 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
84 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
91 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
92 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
101 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
102 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
104 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
109 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
110 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
111 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
116 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
118 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
122 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81

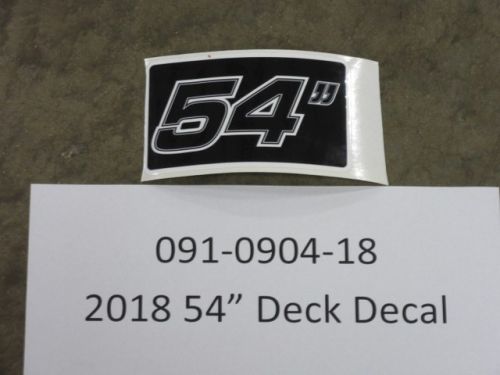

174 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
182 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
