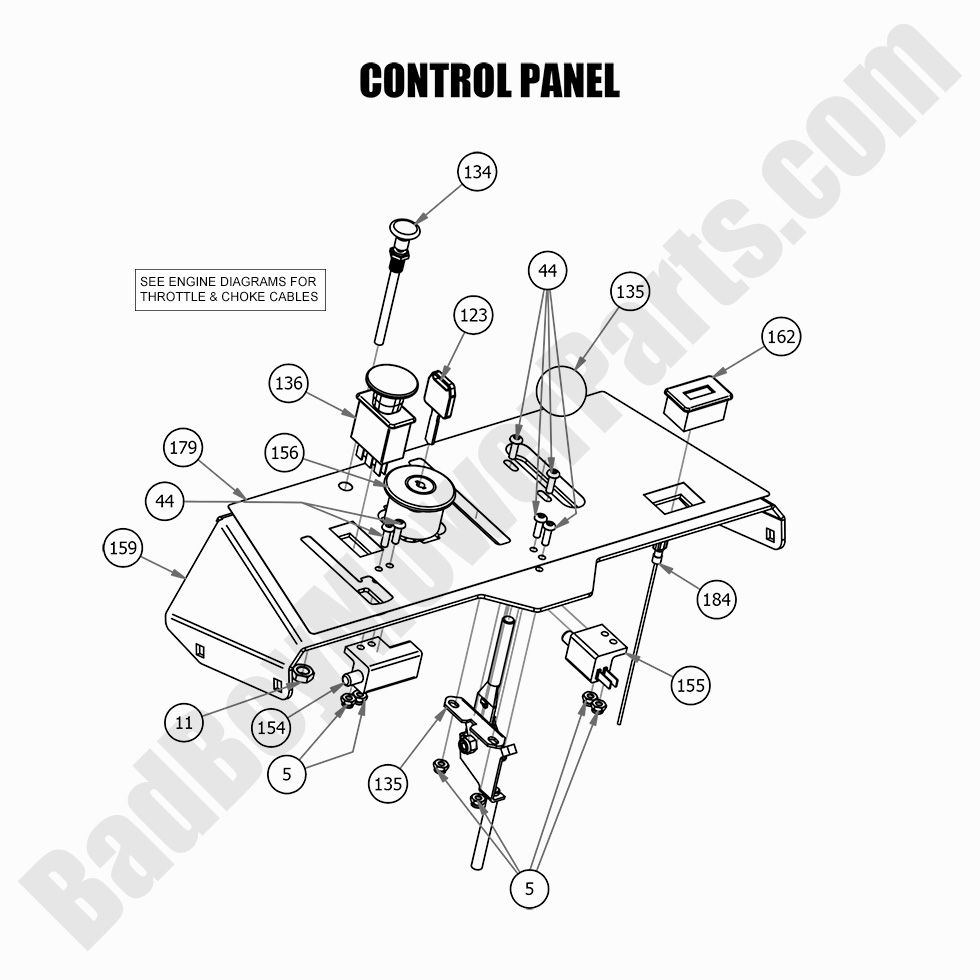

Click Image to Change Diagram
The 2021 Walk Behind Control Panel houses the essential components for controlling your mower’s functions, and maintaining it is key to smooth operation. At BadBoyMowerParts.com, we carry a complete range of replacement parts for your control panel. From switches to wiring, we ensure you get the right parts to keep your mower’s controls responsive. Using our Bad Boy Mower Part diagrams, you can quickly locate the components you need. With a wide variety of Bad Boy Mower Parts available for purchase, you can be confident that you’re getting the best parts for your mower. Plus, enjoy Free Shipping On Orders Over $100 when you shop online for your Bad Boy Lawn Mower Parts.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
5 | 013-5019-00 | 013-5019-00 - 10-24 Nylon Insert Locknut Zinc |
$2.99
|
||
11 | 013-6051-00 | 013-6051-00 - 3/8-24 Hex Jam Nut Zinc |
$2.99
|
||
44 | 018-5200-00 | 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS |
$2.99
|
||
123 | 042-9000-00 | 042-9000-00 - Ignition Key |
$4.06
|
||
136 | 056-8058-00 | 056-8058-00 - PTO Engager-Switch for Blades |
$34.29
|
||
154 | 077-0001-00 | 077-0001-00 - 2017-2025 Walk Behind-Safety Switch Brake |
$23.41
|
||
155 | 077-0002-00 | 077-0002-00 - Safety Switch (See Models Used On For Detail) |
$23.41
|
||
156 | 077-0003-00 | 077-0003-00 - 2017-2021 Walk Behind-Key Switch |
$32.78
|
||
162 | 083-4013-00 | 083-4013-00 - Tachometer-N211-0100-1003 |
$74.89
|
||
179 | 091-4055-00 | 091-4055-00 2020-2024 Walkbehind Control Panel Decal |
$13.90
|
||
184 | 216-1000-17 | 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy |
$7.28
|
