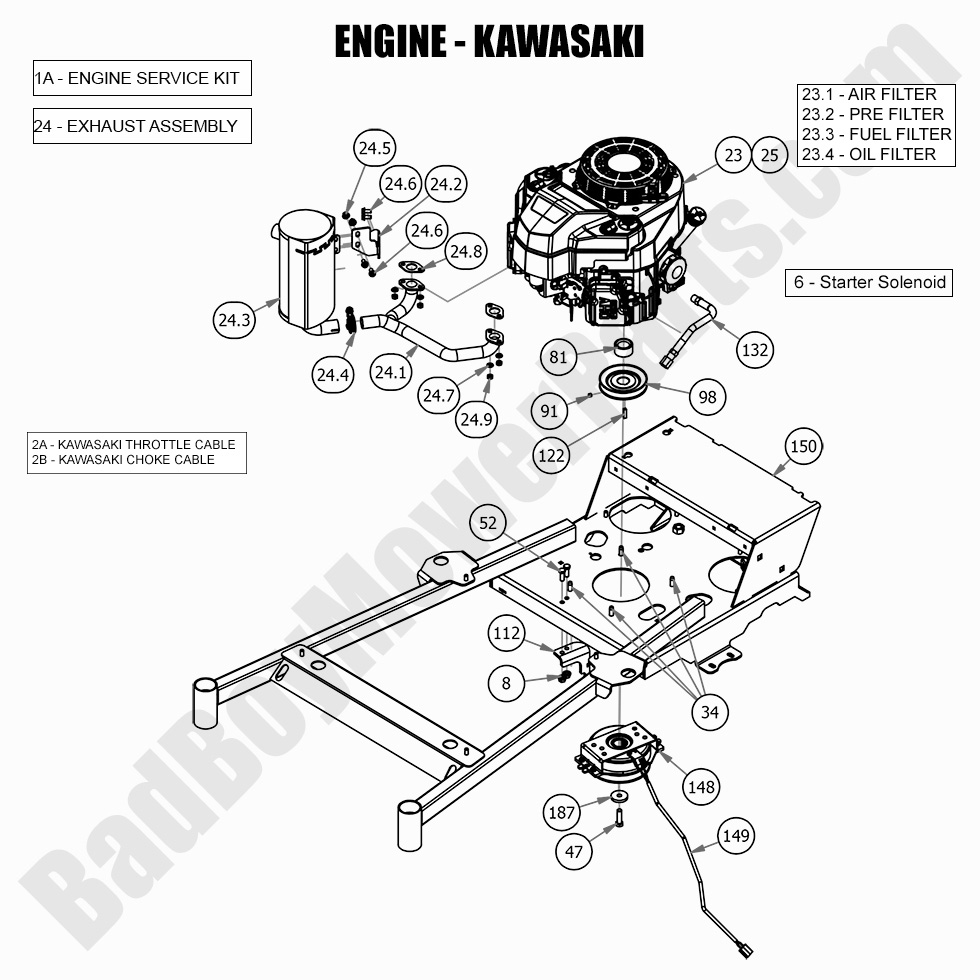

2021 Walk Behind - Engine - Kawasaki FS541/FS600

2021 Walk Behind - Engine - Kawasaki FS541/FS600

For the 2021 Walk Behind Engine - Kawasaki FS541/FS600, it’s important to use high-quality parts to maintain peak performance. At BadBoyMowerParts.com, we offer all the essential replacement components for this engine model. From air filters and spark plugs to fuel filters and carburetors, we provide everything you need to keep your engine running smoothly. Our Bad Boy Mower Part diagrams make it easy to find the exact parts for your Bad Boy Mower Parts. With our comprehensive selection of Bad Boy Lawn Mower Parts, you can ensure long-lasting performance for your 2021 Walk Behind mower. Plus, don’t forget to take advantage of Free Shipping On Orders Over $100 when you shop for parts online.

Bad Boy Mower Parts Lookup

2021 Walk Behind - Engine - Kawasaki FS541/FS600
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
6 108-0001-00 108-0001-00 - Solenoid
$29.41
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
23.0 015-0541-00 015-0541-00 - FS541V-BS28-S Kawasaki Walk Behind Engine-Pull Sta rt
$2599.00
23.1 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
23.2 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
23.3 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
23.4 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
24.0 015-0543-00 015-0543-00 - Exhaust Assembly 2018-2023 Kawasaki Walk Behind
$219.99
24.1 015-0543-02 015-0543-02 - Exhaust Pipe for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$64.19
24.2 015-0543-03 015-0543-03 - Exhaust Bracket for 2018-2022 Kawasaki Walk Behind
$10.99
24.3 015-0543-01 015-0543-01 - Exhaust Only for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$106.99
24.4 015-0543-08 015-0543-08 - Exhaust Band for 2018-2022 Kawasaki Walk Behind
$13.90
24.6 015-0543-04 015-0543-04 - Exhaust Flanged Bolt (See Models Used On For Details)
$2.99
24.7 015-0543-05 015-0543-05 - Exhaust Washer Spring for Kawasaki (See Models Used On For Details)
$2.99
24.8 015-0543-07 015-0543-07 - Exhaust Gasket for 2018-2024 Kawasaki Walk Behind
$3.29
24.9 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
25 015-0599-00 015-0599-00 - FS600 Kawasaki Walkbehind Engine Pull Start
$1699.99
34 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
47 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
52 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
81 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
91 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
98 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
112 039-1220-00 039-1220-00 - Warner Clutch Bracket For MZ and Magnums
$12.63
122 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81

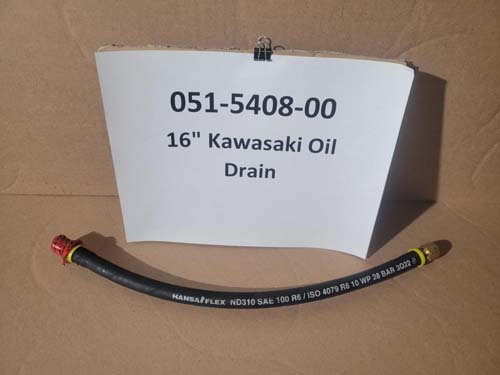

132 051-5408-00 051-5408-00 16" Kawasaki Oil Drain
$42.79
148 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
149 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
187 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
