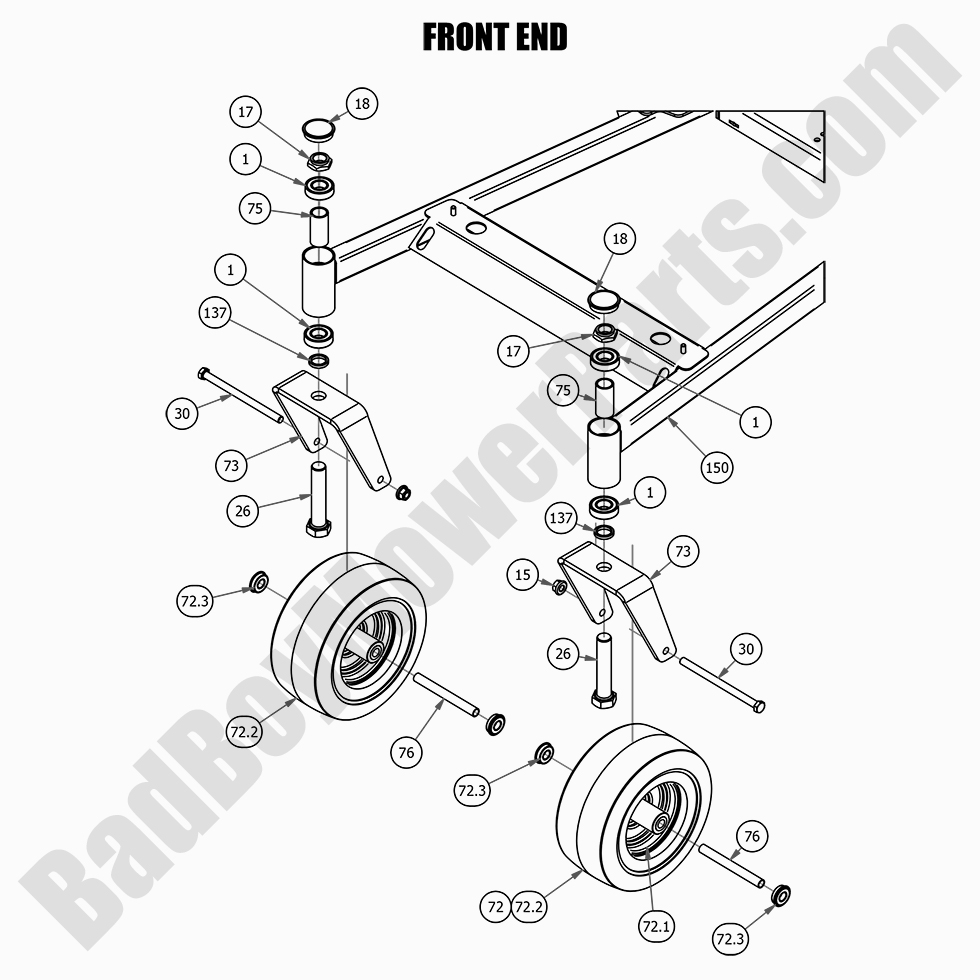

2021 Walk Behind - Front End

2021 Walk Behind - Front End

The 2021 Walk Behind Front End is a crucial part of your mower’s performance, providing stability and balance during operation. At BadBoyMowerParts.com, we offer replacement parts for the front end, including the front wheels, frame components, and steering parts. With our detailed Bad Boy Mower Part diagrams, you can easily identify the right components for your mower. We carry Bad Boy Mower Parts that fit perfectly with your Bad Boy Lawn Mower Parts, ensuring optimal functionality. And with Free Shipping On Orders Over $100, maintaining your mower’s front end is convenient and cost-effective.

Bad Boy Mower Parts Lookup

2021 Walk Behind - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
18 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
26 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
30 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt
$4.83
72.0 022-8049-00 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy)
$99.39
72.1 022-2013-00 022-2013-00 - Front Wheel Only (See Models Used On For Detail)
$42.79
72.2 022-2012-00 022-2012-00 - 11 x 4.00 - 5 Tire Only
$47.07
72.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
73 023-0002-00 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork
$31.23
75 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
76 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
137 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
