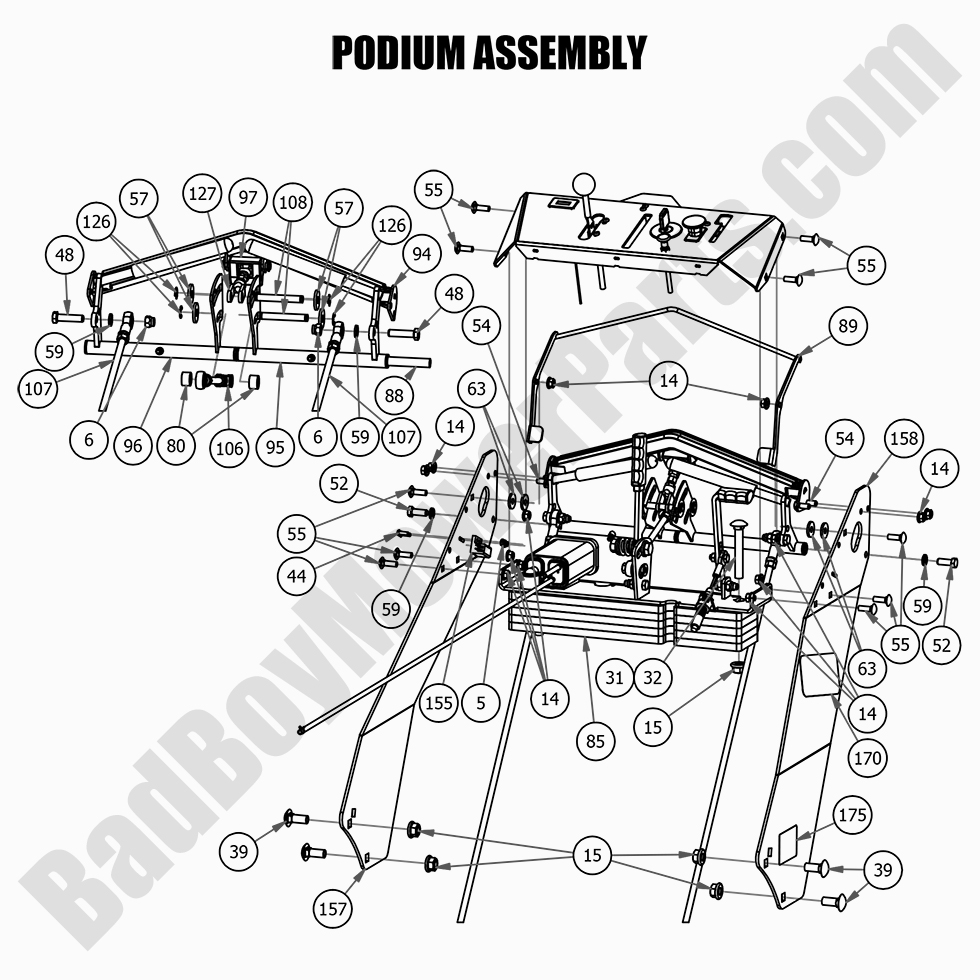

2021 Walk Behind - Podium Assembly

2021 Walk Behind - Podium Assembly

The 2021 Walk Behind Podium Assembly is essential for the operation and ergonomics of your mower. It serves as the key platform for controlling various functions while providing a comfortable and secure stance. At BadBoyMowerParts.com, we offer a wide range of replacement parts for this assembly, including structural components and control mechanisms. With our Bad Boy Mower Part diagrams, finding the exact parts you need is simple and efficient. Whether it’s the control panel or other parts of the assembly, we have you covered with top-quality Bad Boy Mower Parts. Plus, enjoy Free Shipping On Orders Over $100 when purchasing your Bad Boy Lawn Mower Parts from us.

Bad Boy Mower Parts Lookup

2021 Walk Behind - Podium Assembly
  Position Number SKU Product Title Price
5 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
6 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
31 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
39 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
44 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
52 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
54 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
55 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
57 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
63 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
80 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
88 028-0009-00 028-0009-00 - Walk Behind & Raider Control Pivot Rod
$31.17
89 028-0043-00 028-0043-00 - 2020 Walk-Behind Presence-Weldment
$21.39
94 031-0039-70 031-0039-70 - 2020-2022 Walkbehind Overmolded Bolt on Handle
$64.19
95 031-0042-00 031-0042-00 - Walk-Behind Control Lever Assy-Left (See Models Used On For Detail)
$42.58
96 031-0043-00 031-0043-00 - Walk-Behind & Raider Control Lever Assy-Right
$42.58
97 031-0047-00 031-0047-00 - Walk-Behind Neutral Lever
$32.09
106 035-0002-98 035-0002-98 - 2017-2024 Walk Behind Speed Control Rod Assembly
$38.47
107 035-0007-98 035-0007-98 - Walk-Behind Push Rod Assembly
$42.79
108 035-0008-00 035-0008-00 - Walk-Behind Control Pin
$32.09
126 044-2018-00 044-2018-00 - 3/8 E Clip
$2.99
127 047-9000-00 047-9000-00 - Adjustable Yoke Male/Female (See Models Used On For Details)
$14.97
155 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
157 079-0028-00 079-0028-00 - 2020 Walk Behind Side Panel-Right--Orang No Longer Available
Obsolete.
158 079-0029-00 079-0029-00 - 2020 Walk Behind Side Panel-Left--Orange No Longer Available
Obsolete.
170 091-0412-18 091-0412-18 - 2018-2022 Walk Behind 603cc Back Plate Cluste
$17.64
175 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
