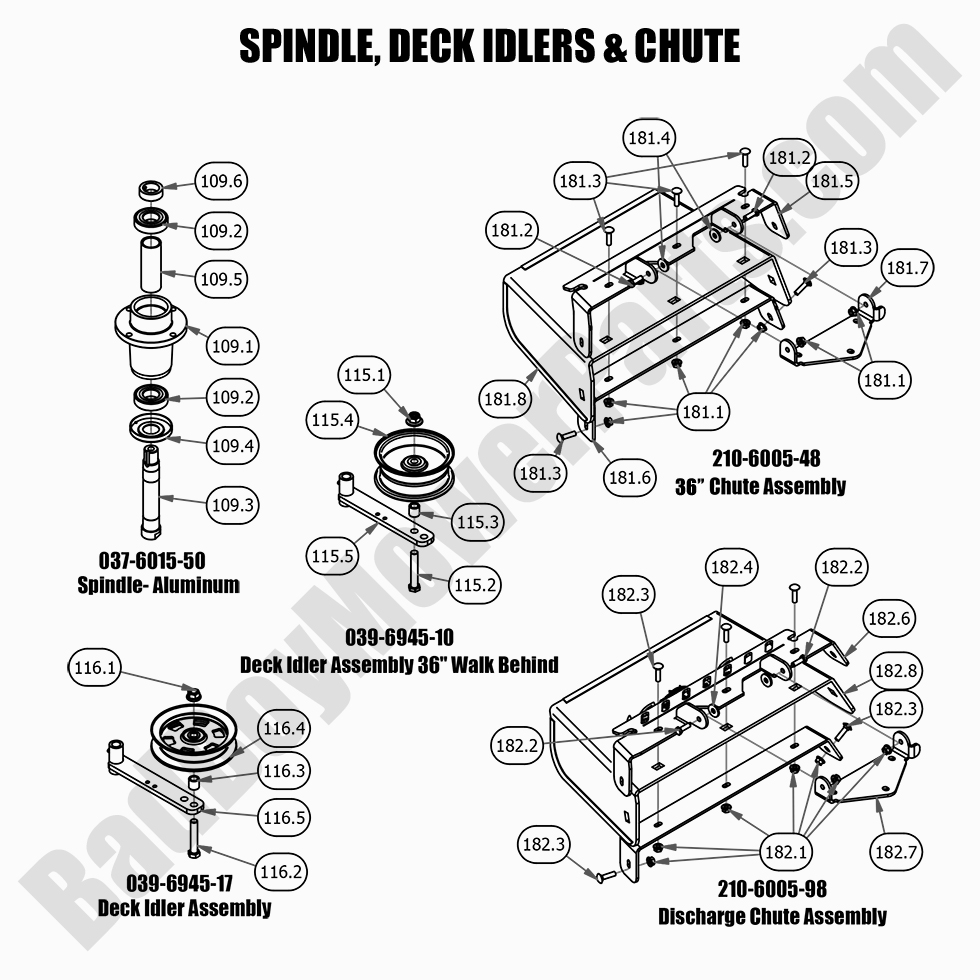

2021 Walk Behind - Spindle, Deck Idler & Chute

2021 Walk Behind - Spindle, Deck Idler & Chute

Maintaining the 2021 Walk Behind Spindle, Deck Idler & Chute is key to ensuring your mower operates at peak performance. These components are critical for the smooth operation of your mower’s cutting deck. At BadBoyMowerParts.com, we provide high-quality spindles, deck idlers, and discharge chutes for your walk-behind mower. Our Bad Boy Mower Part diagrams make it easy to identify the correct replacement parts you need. When you shop for Bad Boy Mower Parts, you can trust that you're getting top-notch parts for your Bad Boy Lawn Mower Parts. Plus, with Free Shipping On Orders Over $100, keeping your mower in top condition has never been more affordable.

Bad Boy Mower Parts Lookup

2021 Walk Behind - Spindle, Deck Idler & Chute
  Position Number SKU Product Title Price
109.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
109.1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
109.2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
109.3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
109.4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
109.5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
109.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
115.0 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
115.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
115.2 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
115.3 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
115.4 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
115.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
116.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
116.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
116.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
181.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
181.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
181.2 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
181.3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
181.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
181.5 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
181.6 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
181.7 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
181.8 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
182.0 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
182.6 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
