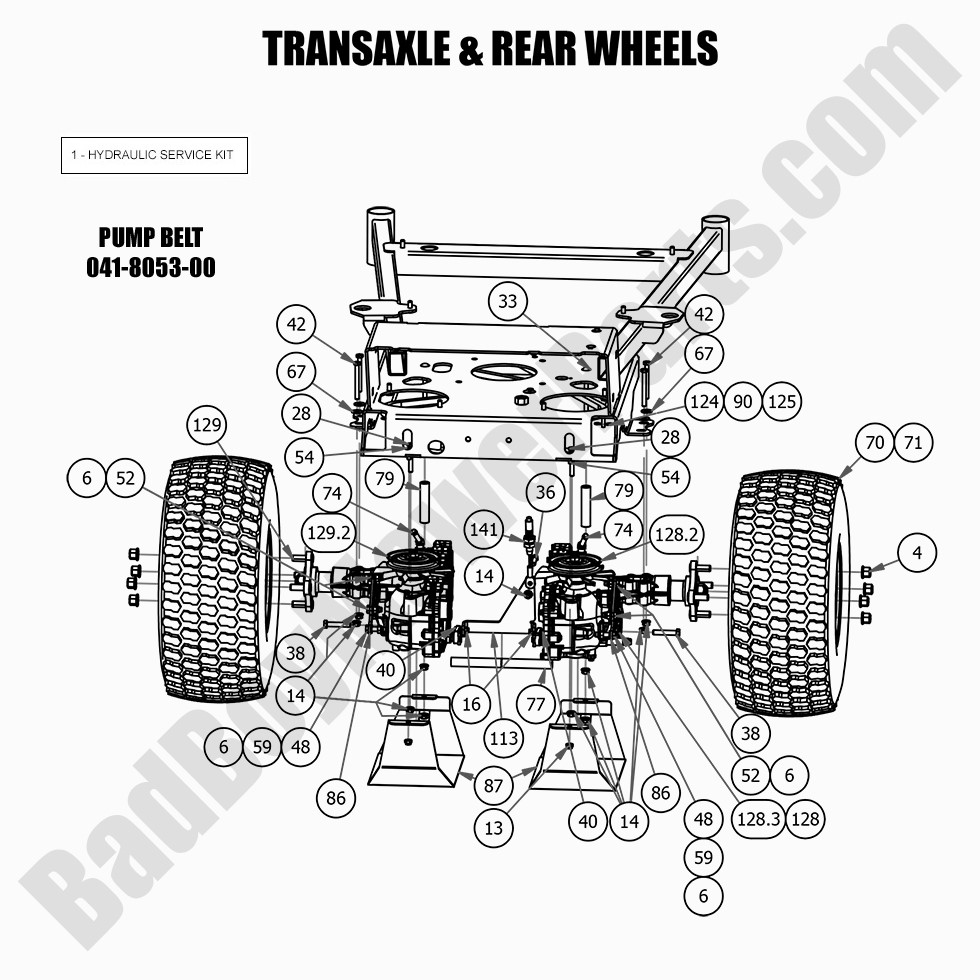

2021 Walk Behind - Transaxle & Rear Wheels

2021 Walk Behind - Transaxle & Rear Wheels

The 2021 Walk Behind Transaxle & Rear Wheels are vital for the functionality and movement of your mower. These parts ensure smooth traction and operation of your mower over various terrains. At BadBoyMowerParts.com, we provide high-quality replacement transaxles and rear wheels to maintain your mower’s performance. Our Bad Boy Mower Part diagrams help you identify the right parts quickly and efficiently. Whether you’re replacing a worn-out transaxle or upgrading your rear wheels, we offer Bad Boy Mower Parts that fit your mower perfectly. Enjoy the convenience of Bad Boy Parts Online with Free Shipping On Orders Over $100 on all orders.

Bad Boy Mower Parts Lookup

2021 Walk Behind - Transaxle & Rear Wheels
  Position Number SKU Product Title Price
1.0 041-8053-00 041-8053-00 - Walk Behind Pump Belt
$58.84
1 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
4 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
6 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
13 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
16 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
28 018-0023-00 018-0023-00 - 5/16-18 x 2.25" Hex Bolt
$2.99
33 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
36 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
38 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
40 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
42 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
52 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
54 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
59 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
67 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
70 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$174.99
71 022-8019-00 022-8019-00 - 21x7-10 Assy-36" 2017 Walk Behind
$171.99
74 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
77 025-0018-00 025-0018-00 - 2017 Transaxle Spacer Walk Behind
$11.76
79 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
86 026-0173-00 026-0173-00 - 2020 Walk Behind Hydro Plate Extension-- No Longer Available
Obsolete.
87 026-3441-00 026-3441-00 - 2020 Walk Behind Trans Skid Plate--Orang
$53.49
90 028-0072-00 028-0072-00 - 2020 Walk-Behind Neutral Rod No Longer Available
Obsolete.
113 039-1917-00 039-1917-00 - Walk Behind Brake Pull Bracket
$10.99
124 044-2004-00 044-2004-00 - Bow Pin
$2.99
125 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
128.0 050-0003-00 050-0003-00 - 2017-2021 Walk Behind Transaxle Right 3100
$699.99
128.2 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
128.3 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
129.0 050-0004-00 050-0004-00 - 2017-2021 Walk Behind Transaxle Left 3100
$549.99
141 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
