2021 Walk Behind - Upper Frame

2021 Walk Behind - Upper Frame

The 2021 Walk Behind Upper Frame provides the structural integrity and stability necessary for the durability of your mower. At BadBoyMowerParts.com, we stock high-quality replacement parts for the upper frame, ensuring it remains strong and functional. Whether you're replacing frame components or reinforcing parts, our extensive catalog of Bad Boy Mower Parts has exactly what you need. Our Bad Boy Mower Part diagrams will help you find the right pieces to maintain your mower’s durability. When you shop for your Bad Boy Lawn Mower Parts, take advantage of our Free Shipping On Orders Over $100 and keep your mower in optimal working condition.

Bad Boy Mower Parts Lookup

2021 Walk Behind - Upper Frame
  Position Number SKU Product Title Price
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
19 014-3580-00 014-3580-00 - Walk Behind Bolt On Fan Cover
$10.99

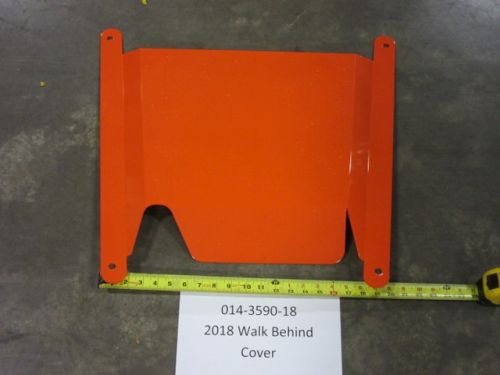

20 014-3590-18 014-3590-18 - 2018-2022 Walk Behind Cover
$32.09
22 014-9002-00 014-9002-00 - 1 1/2 X 2 Plug For .120 Tubing
$2.99
35 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
41 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
64 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
66 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
78 025-0031-00 025-0031-00 - Deck Hanger Insert (Walk Behind)
$10.21
103 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
113.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
113.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
113.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
113.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
113.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
113.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
113.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
113.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
114 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
117 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
133.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
133.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
133 051-8067-15 051-8067-15 - 15" Revolt Fuel Line Assembly
$8.79
142 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
143 067-0003-00 067-0003-00 - 2017-2024 Walk Behind Black Fuel Tank
$300.99
145.1 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
145.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
145.3 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
145.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
145.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
145 067-8090-04 067-8090-04 - Walk Behind Hydro Tank Assembly No Longer Available
Obsolete.
151 072-0050-00 072-0050-00 - Fuel Tank Clamp (See Models Used On For Details)
$11.34
172 091-0902-00 091-0902-00 - 2013-2021 Logo Decal - Floorboard
$17.16
177 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
